Snap-On CT9050 - Parts Listing

87
ZCT9050CE Rev. C (01/25)
Ref Description Qty Part Number
1 housing set 1
CT9050-100R
2 18v brushless dc motor 1
CT9050-50
3 ring gear assembly 1
CT9050-110
4 ball bearing 1
ME11A33A
5 o-ring 1
ME7B52
6 washer 1
CT30115
7 thread forming screw 12
ME3L30
8 pin 3
ME2A141
9 planet gear assembly 3
CT9050-6
10 steel ball 2
ME9A29
11 gear carrier 1
CT9050-162
12 compression spring 1
CT9050-206A
13 thrust washer 1
ME5A177
14 thrust bearing 1
ME11B24
15 hammer 1
CT9050-111
16A anvil assembly 1
CT9050-113R
16A1anvil *
CT9050-113
16A2o-ring *
ME7B3
16A3retaining ring *
ME7A97
16B pinned anvil assembly **
CT9050P-113R
16B1pinned anvil *
CT9050P-113
16B2spring *
ME1A238
16B3pin *
ME2C79
16B4button *
IM5100P26
Ref Description Qty Part Number
16C 3" long anvil assembly **
CT9050L-113R
16C13" long anvil *
CT9050L-113
16C2o-ring *
ME7B3
16C3retaining ring *
ME7A97
16D 3" long pinned anvil assy **
CT9050LP-113R
16D13" long pinned anvil *
CT9050LP-113
16D2spring *
ME1A238
16D3pin *
ME2C79
16D4button *
IM5100P26
16E 6" long anvil assembly **
CT9050XL-113R
16E16" long anvil *
CT9050XL-113
16E2o-ring *
ME7B3
16E3retaining ring *
ME7A97
17 spacer 1
CT9050-24
18 1/2" nose assembly 1
CT9050-103
19A controller assembly 1
CT9050-217
19A1LED assembly *
CT8950-60
19A2speed control PCB *
CT9010-62
19A3terminal block repair kit *
CT9075-130R
20 forward/reverse bar 1
CT8950-16A
* included in assembly, use as required
** not shown

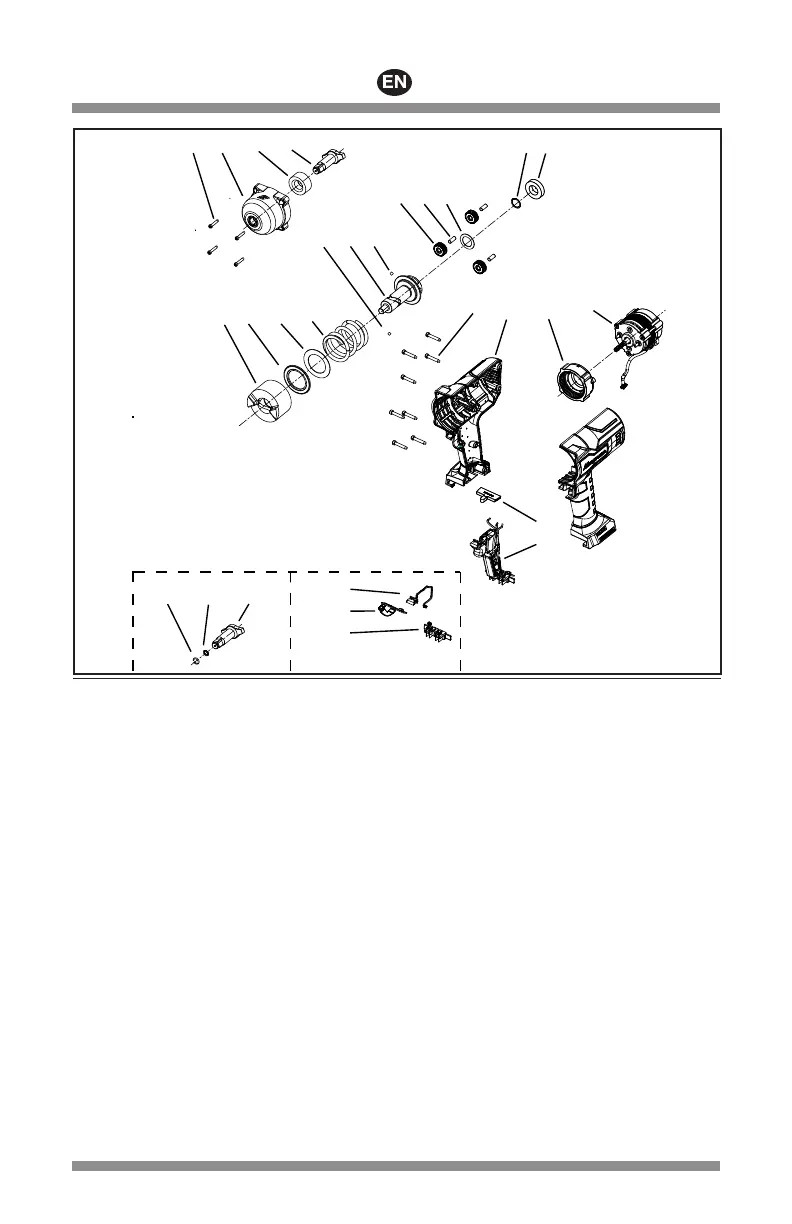

Figure 9: Cordless Impact Wrench Exploded View
Parts Listing
5 4
7 18 17 16
15 14 13 12
4 11 10
9 8 6
16A3 16A2 16A1
20
19
16A
19A1
19A2
19A3
19A
7 1 3 2
