Page 20
9.0 Split Weights - P92
The “Split Weight” function is used to split one large
weight to two smaller weights with 60% of original weight
and 33.6° away each direction from the original posi-
tion. For instance, if the original unbalance weight is 3
oz, the weight is split into two 1.75 oz weights and placed
56.4° and 123.6° from the original larger value located
top dead center at 90 degrees. The minimum weight to
activate this function is 2 oz. The procedure is described
below. See Figure 37.
1. After balancing, the weight amounts are displayed
in left and right windows.
2. Enter P92, machine will display “SPL -L- “ or “SPL
-R-“ meaning which plane should be split.
3. Press the “STOP” button alternately to toggle be-
tween the left and right plane.
4. Once the desired plane is chosen, press the “P”
button. The machine splits the weight into two parts.
The split weight is 60% of the original weight. The
position is 33.6° from each side the original posi-
tion.
5. If the displayed weight is less than 2 oz (56.7
grams), the machine will display “ NOT AVL” for
one second, and then resumes the normal display.
6. Pressing “STOP” cancels the split weight mode
and operation returns to normal. The operator can
check if the position of original weight is between
the two smaller weights.
7. Pressing the “STOP” button again, returns the
machjine to idle mode without weight amount or po-
sition display.
8. For a check spin, lower the hood guard or press
“SPIN” button.

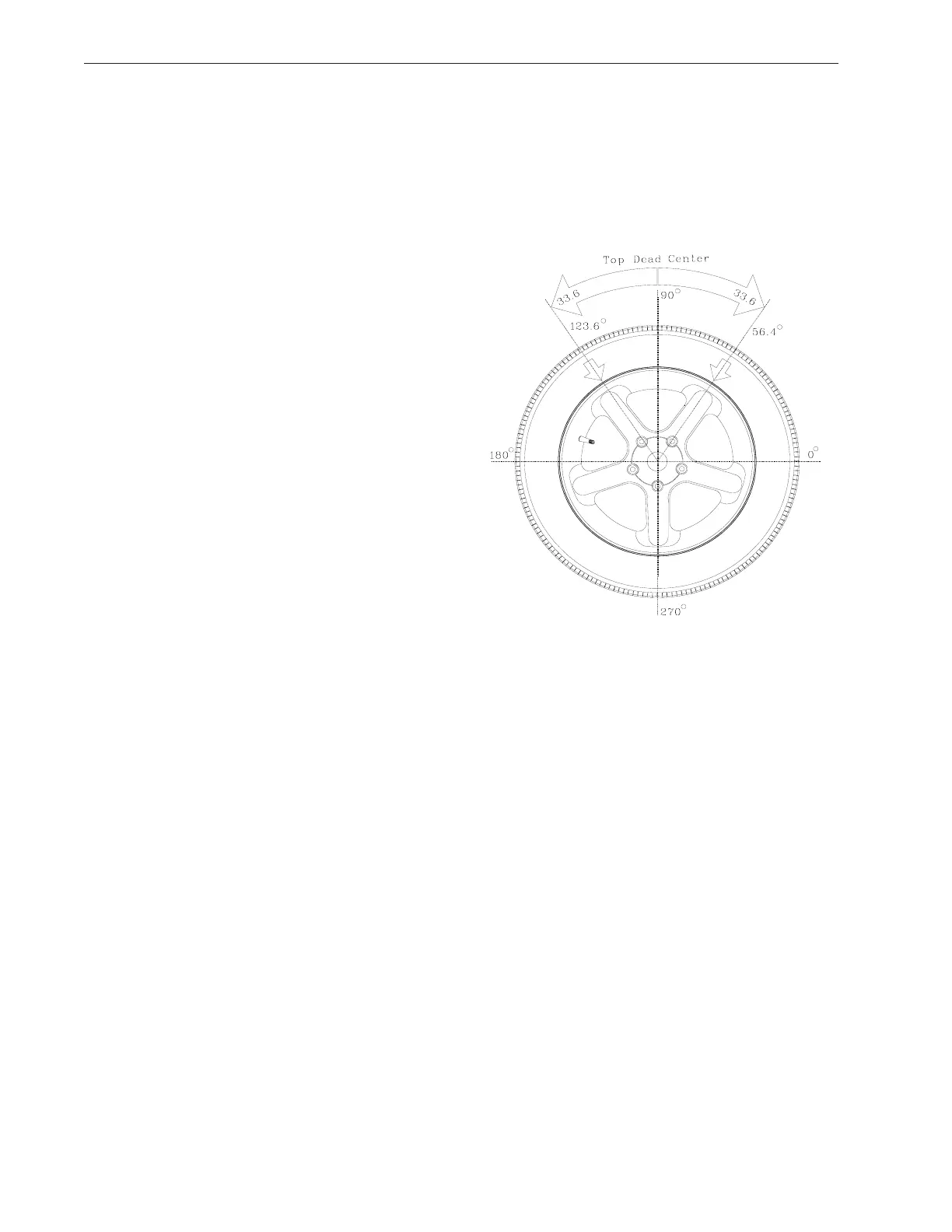

Figure 37
