Page 6
1.5 STANDARD ACCESSORIES

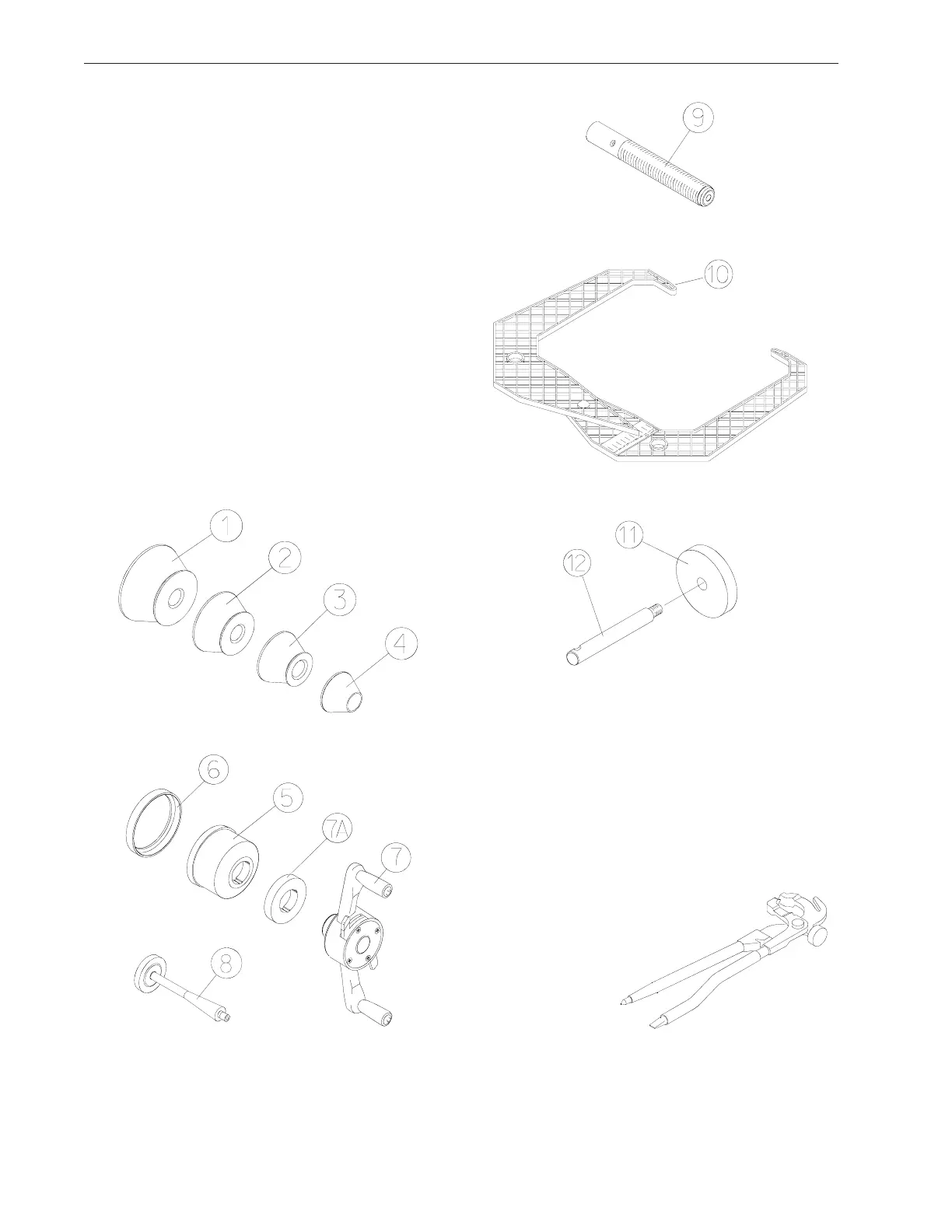

Centering Cones and Accessories
For centering of wheels with center holes
1 EAM0003J08A Cone, 85-132 mm / 3.36”-5.2”
2 EAM0003J07A Cone, 71-91 mm / 2.8”-3.6”
3 EAM0003J06A Cone, 56-84 mm / 2.18”-3.3”
4 EAM0003J05A Cone, 43-64 mm / 1.7” - 2.5”
5 EAM0058D07A Cup - Pressure
6 EAC0058D15A Rubber Ring Protector
7 EAA0263G66A Quick Nut
7A EAC0058D08A Disk - Small Pressure
8 EAM0005D40A Weight - Calibration
9 EAM0021D90A 40 mm Stub Shaft
10 EAA0247G21A Caliper - Rim Width
11 EAC0060G02A Flange - Cover, Hook
12 EAM0006G01A Pin - Accessory
* EAM0005D34A Fastening Rod for shaft
* not shown
Figure 1
Figure 2
1.6 OPTIONAL ACCESSORIES
Weight Pliers P/N WWPR13A (Figure3).
Versatile weight hammer/plier. In addition to ham-
mering on weight and used weight removal, the
WWPR13A can be used to reshape worn weight clips
and trim weight to size.
PRE-INSTALLATION CONSIDERATIONS
Figure 3
