22 Snap-on Tools Corporation Kenosha, WI 53141-1410
SG STYLE FRONT END - OPTIONAL
WIRE SIZE CONTACT TIP GAS DIFFUSER NOZZLE ASSEMBLY CUP NOZZLE BODY INS. BUSHING
.020 - .025 inch M3-T25 M3-D M3-NA50 M3-C50 M3-NB M3-B
.030 inch M3-T30 (1/2" I.D.)
.035 inch M3-T35 (1-7/16"
.040 - .047 inch M3-T45 length)

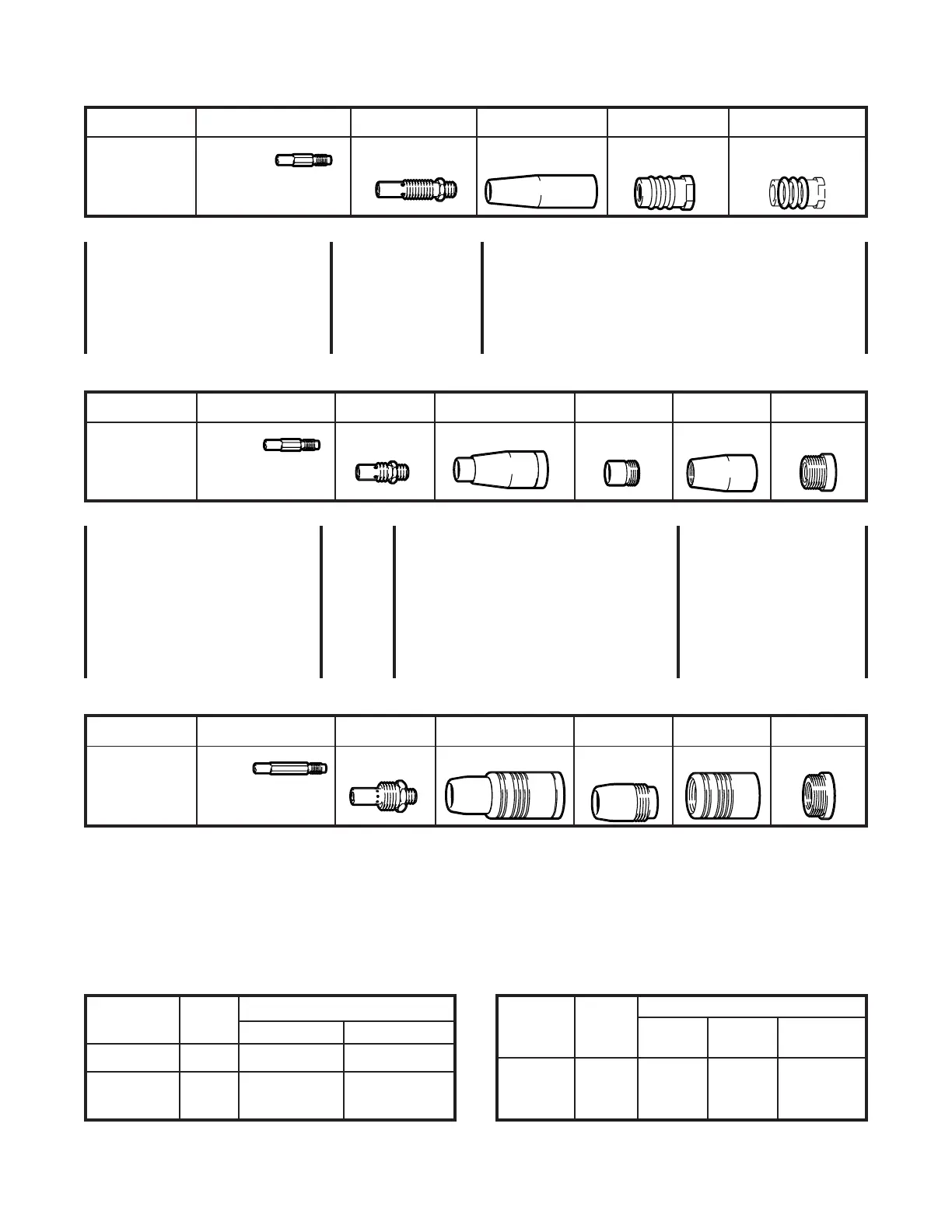

CONSUMABLE PARTS BREAKDOWN - 15 SERIES M.I.G. TORCH
TG STYLE FRONT END - STANDARD
WIRE SIZE CONTACT TIP GAS DIFFUSER NOZZLE INSULATOR INSULATOR O-RING
.020 - .025 inch M3-T25 M3T-D M3T-N50 M3T-B M3T-BR
.030 inch M3-T30 (1/2" I.D.) (includes o-rings) (3 reqd.)
.035 inch M3-T35 (1-7/16"
.040 - .047 inch M3-T45 length)
SPECIAL APPLICATION PARTS FOR TG STYLE FRONT END
SHORT CONTACT TIP (1-1/4" length) LARGER ORIFICE SPOT WELDING NOZZLES
- For Spray Arc Welding NOZZLE Standard Nozzle Low Amp Nozzle
WIRE SIZE PART NUMBER STYLE PART NUMBER PART NUMBER
.020 - .025 inch M3-ST25 Straight Nozzle Flat Spot M3T-NS1 M3T-NLAS1
.030 inch M3-ST30 (3/4 “ I.D.) Inside Corner M3T-NS2 M3T-NLAS2
.035 inch M3-ST35 M3T-N75 Outside Corner M3T-NS3 M3T-NLAS3
.040 - .047 inch M3-ST45 Irregular (grind to shape) M3T-NS4 M3T-NLAS4
SPECIAL APPLICATION PARTS FOR SG STYLE FRONT END
SHORT CONTACT TIP (1-1/4" length) LARGER EXTRA LENGTH FRONT END SPOT WELDING FRONT END
- For Spray Arc Welding ORIFICE 1/2" Longer 1" Longer
WIRE SIZE PART NUMBER CUP PART NUMBER PART NUMBER PART NUMBER
CUP (1/2" I.D.) M3-C50L M3-C50XL INS. BUSHING M3H-B
.020 - .025 inch M3-ST25 Flared CONTACT TIP NOZZLE NUT M3H-NN
.030 inch M3-ST30 Cup .020 - .025 inch M5-T25 M5-LT25 SPOT NOZZLE
.035 inch M3-ST35 (5/8" I.D.) .030 inch M5-T30 M5-LT30 Flat Spot M3H-NS1
.040 - .047 inch M3-ST45 M3-C62 .035 inch M5-T35 M5-LT35 Inside Corner M3H-NS2
.040 - .047 inch M5-T45 M5-LT45 Outside Corner M3H-NS3
Irregular M3H-NS4
FOR STEEL WELDING
ORDER NUMBER
WIRE TORCH
SIZE LENGTH
LINER W/SEAL SEAL ONLY
.020-.030 inch 10 feet M103L-B M3LS-B (Blue)
10 feet M104L-N
.035-.045 inch M4LS-N (Natural)
12 feet M124L-N
FOR ALUMINUM WELDING
ORDER NUMBER
WIRE TORCH
LINER SEAL HEATSHIELD
SIZE LENGTH
ONLY ONLY ONLY
.035 inch 10 feet M103AL M3-6ALS M3-THS
3/64 inch 10 feet M104AL M3-6ALS M3-THS
XG STYLE FRONT END - OPTIONAL - RECOMMENDED FOR ALUMINUM WELDING
WIRE SIZE CONTACT TIP GAS DIFFUSER NOZZLE ASSEMBLY CUP NOZZLE BODY INS. BUSHING
.035 inch M5-T35 M35-D M35-NA62 M5-C62 M5-NB M5-B
.040 - .047 inch M5-T45 (5/8" I.D.)
(1-15/16"
length)
SPECIAL APPLICATION PARTS FOR 3-5G STYLE FRONT END
LARGER ORIFICE CUP: Straight Cup (3/4" I.D.) ....... M5-C75
SPECIAL FRONT END FOR GASLESS WIRES - OPTIONAL
INSULATED CONTACT TIP (Tip screw directly into torch neck - no gas diffuser is required) (1-15/16" length)
WIRE SIZE PART NUMBER
.040 - .047 inch M5HGL-045
LINERS & LINER SEALS
