24 Snap-on Tools Corporation Kenosha, WI 53141-1410
MHG5-B SYSTEM COMPONENTS
1 each MHG-5 Spool Gun (only)
1 each HGC9-25 Hand Gun Cable Assembly
with fittings - 25 feet length
7 each MG-TXX Contact Tip(1 installed in gun)
2 - .030 (MG-T30)
3 - .035 (MG-T35)
2 - 3/64 (MG-T364)
1 each M35-NA62 Nozzle Assembly
(installed on gun)
1 each M35-D Gas Diffuser
(installed on gun)
OPTIONS

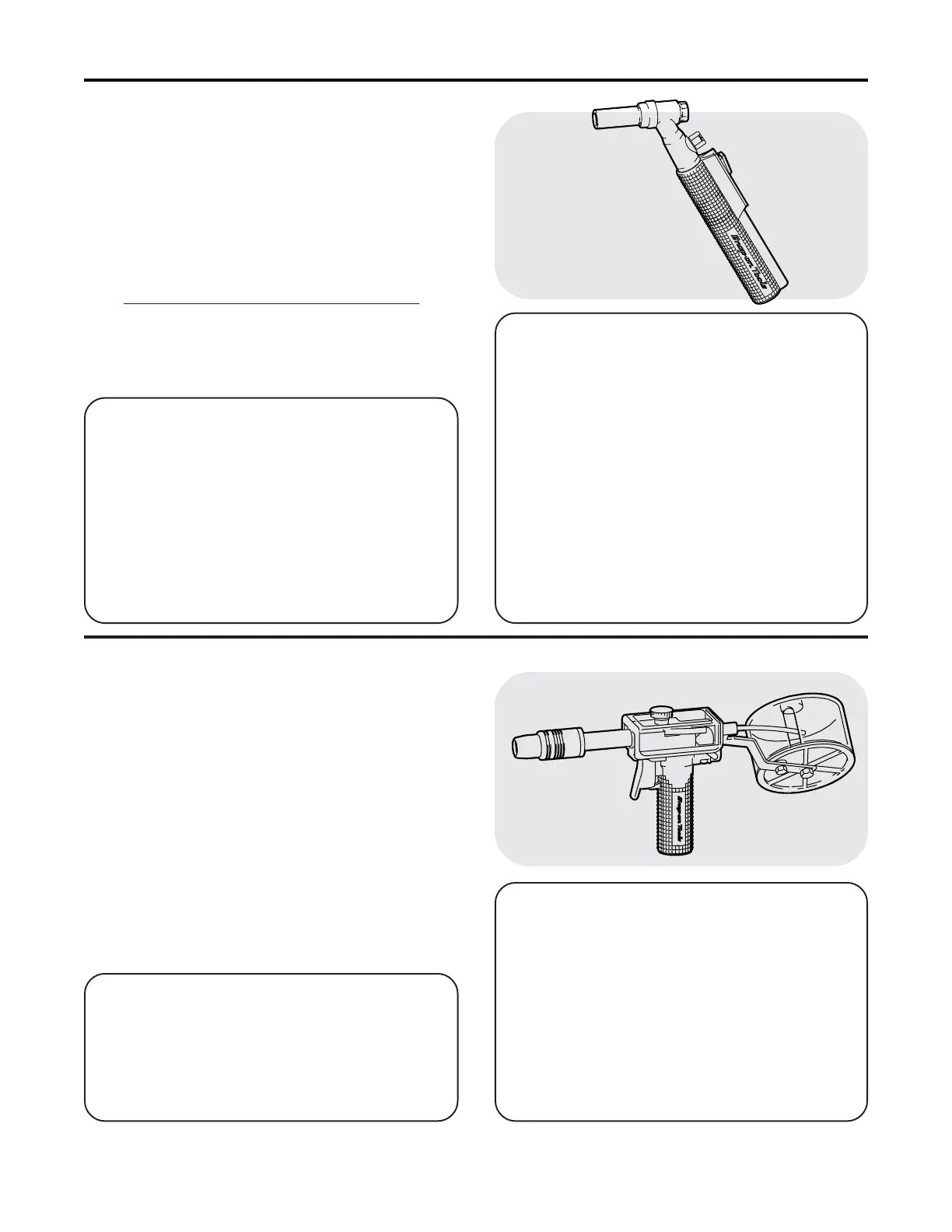

FLEXTIG
TIG WELD WITH YOUR
SNAP-ON TOOLS MUSCLE MIG SYSTEM
(MM140SL, MM250SL)
The TIG Welding Process is used to produce the highest quality, porosity-free
welds. The FLEXTIG adds TIG Welding capabilities to your Snap-on Tools MIG
Welder.
The FLEXTIG is designed for Tungsten-Inert Gas (TIG) welding with Direct
Current, Straight Polarity (DCSP) on steel, stainless steel, chrome-moly, copper
or cast iron (18 Ga. minimum plate thickness).
THE FLEXTIG WILL NOT WELD ALUMINUM.
The FLEXTIG consists of a 200 amp, gas cooled torch with built-in gas control
valve and remote on-off switch, 12-1/2 or 25 foot cable assembly and accessories
required for putting the unit in service.
SPECIFICATIONS
Part Number ........................ FLEXTIG 12 (12-1/2' cable)
FLEXTIG 25 (25' cable)
Torch Rating ....................... 200 Amps, DCSP
Duty Cycle ........................... 100% (reduce duty cycle when
operating over 200 amps.)
Cooling Method ................... Gas(100% ARGON)
Shielding Gas
Control Method ............... Gas Valve on Torch
Welding Current
On-Off Control ................ Locking Switch onTorch
MHG5-B
ONE POUND SPOOL GUN
FOR ALUMINUM MIG WELDING
WITH SNAP-ON TOOLS
MUSCLE MIG SYSTEMS
(MM140SL, MM250SL)
The MHG5-B (Motorized Hand Gun System) is a compact, light-in-weight,
easy to operate MIG welding system designed for aluminum welding. It will
feed .023" Thru 3/64" diameter wire from 4 inch spools. The standard
equipment cable is 25 feet in length. 35 foot and 50 foot cables are optional.
The wire speed control knob is built into the gun handle.
With the following options, the MHG5-B can also be used to weld steel or
stainless steel (.030"-.035" diameter wire size).
SN-2160K Knurled Drive Roll for .030 - .035" steel wire
M5-T30 Contact tip - for .030" steel wire
or M5-T35 Contact tip - for .035" steel wire
SPECIFICATIONS
Part Number ....................... MHG5-B
Gun Rating ......................... 200 Amps @ 100% duty cycle
250 Amps @ 60% duty cycle
Wire Feed Speed Range ... 50 to 650 inches per minute
Cooling Method .................. Air (gas)
CONTENTS OF FLEXTIG
1 each TIG Torch with built-in valve
1 each Locking Electric Switch with cord & plug
(installed on torch)
1 each 12-1/2 foot Power Cable with Connector
(installed on torch)
1 each 15 foot Gas Hose with fitting
(installed on torch)
3 each 3C116 Collet - for 1/16" tungsten
3 each 3C332 Collet - for 3/32" tungsten
2 each 3CB116 Collet Body - for 1/16" tungsten
2 each 3CB332 Collet Body - for 3/32" tungsten
2 each 3C6 Gas Cup - 3/8" orifice
6 each 3C7 Gas Cup - 7/16" orifice
2 each 3C8 Gas Cup - 1/2" orifice
1 each 300L Long Backcap
3 each 1/16" X 3" Tungsten Electrode
3 each 3/32" X 3" Tungsten Electrode
