Snap-On MUSCLE MIG SYSTEM MM350XL User Manual

26

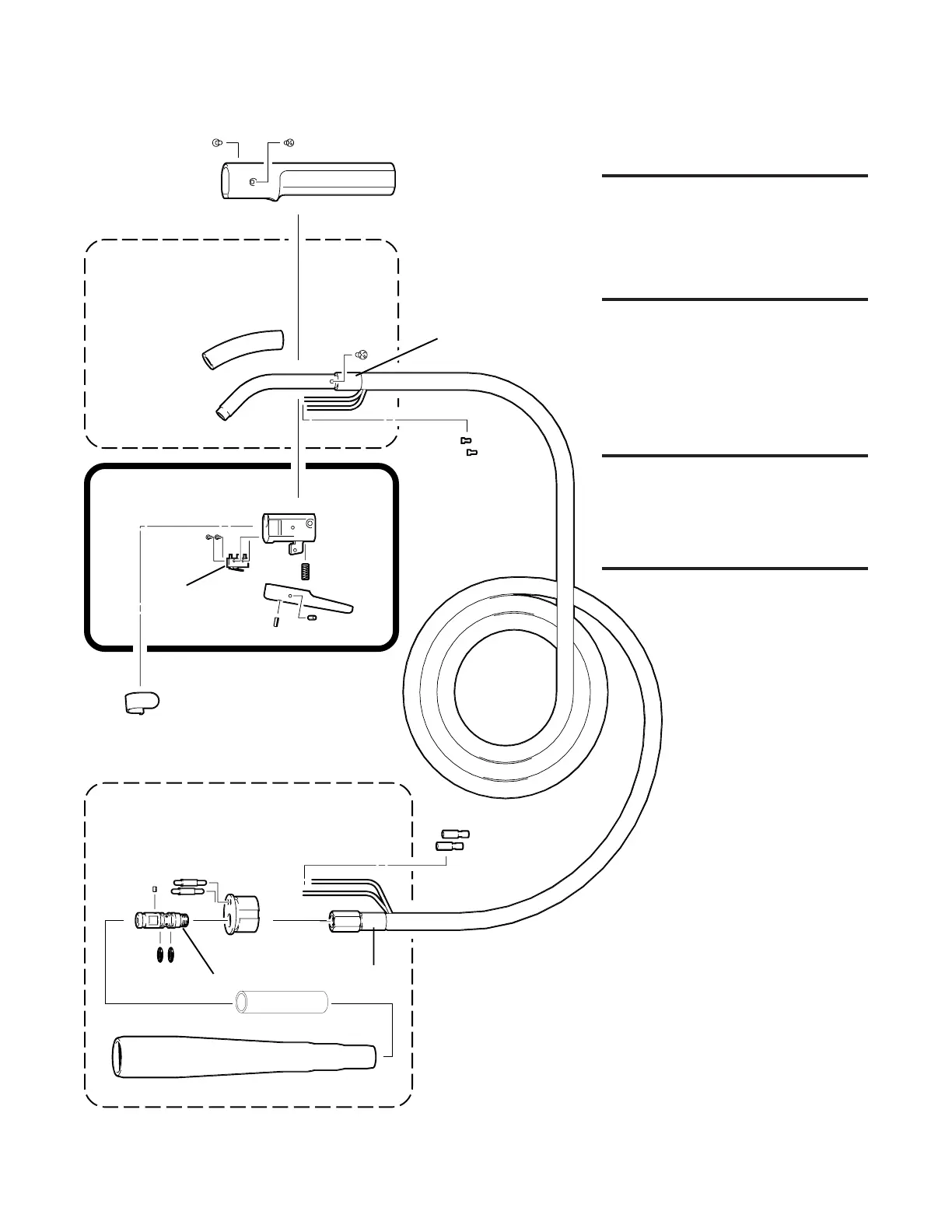

PARTS BREAKDOWN - 35XL SERIES MIG TORCH (Cont.)
M3-402 M3-402
M3X-401
TORCH NECK GROUP
M3-112
M3-119 M3-120*
M3-101B*
M3-405
M3-200B ASSEMBLY (2 REQD.)
M3-201B
M3-203
(2 REQD.)
M3-214
M3-202 M3-211
M3-212 M3-213
M3-407
QUICK CONNECTOR GROUP
M3-406
M3-309 (2 REQD.)
(2 REQD.)
M3-307
M3-301A M3-305A*
M3-308 M3-306 M3-120*
(2 REQD.)
SN-807G
M3-310A
PART NO. DESCRIPTION (SYMBOL)
TORCH NECK GROUP
M3-101B ..... TORCH NECK *
M3-112 ....... NECK INSULATOR
M3-119 ....... LOCK SCREW - SWITCH HOUSING
M3-120 ....... FERRULE *
M3-200B ..... SWITCH ASSEMBLY
CONSISTING OF:
M3-201B ..... SWITCH HOUSING
M3-202 ....... SWITCH (S1)
M3-203 ....... SWITCH SCREW (2 REQUIRED)
M3-211 ....... TRIGGER - WITH ADJUSTING SCREW
M3-212 ....... TRIGGER ADJUSTING SCREW (ONLY)
M3-213 ....... TRIGGER PIN
M3-214 ....... TRIGGER SPRING
QUICK CONNECTOR GROUP
M3-120 ....... FERRULE *
M3-301A ..... CONNECTOR HOUSING
M3-305A ..... CONNECTOR STEM *
M3-306 ....... CONNECTOR PLUG
- WITH SETSCREW & O-RINGS
M3-307 ....... SETSCREW (ONLY)
M3-308 ....... O-RING (ONLY) (2 REQUIRED)
M3-309 ....... TERMINAL - CONNECTOR CONTACT
(2 REQUIRED)
M3-310A ..... BOOT / CABLE SUPPORT
SN-807G ....... CABLE COVER
M3X-401....... HANDLE
M3-402 ....... HANDLE SCREW (2 REQUIRED)
M3-405 ....... TERMINAL - TORCH END
(2 REQUIRED)
M3-406 ....... TERMINAL - CONNECTOR END
(2 REQUIRED)
M3-407 ....... HANGING BRACKET
SN-1029 .... LABEL, 35XL SERIES
M2510CBL... 10 FOOT CABLE *
M2512CBL... 12 FOOT CABLE *
M2510CBL*
M2512CBL*
NOTES:
* BECAUSE SPECIAL TOOLS
AND PROCEDURES ARE
REQUIRED TO PROPERLY
INSTALL THE CABLE ON
THE TORCH NECK AND
THE CONNECTOR STEM,
ITEMS WITH THE ASTERICK
ARE AVAILABLE FACTORY
INSTALLED ONLY.
TORCH REBUILD PROGRAM
35XL SERIES TORCHES
CAN BE REBUILT BY THE
FACTORY FOR A NOMINAL
LABOR + PARTS CHARGE.
