25

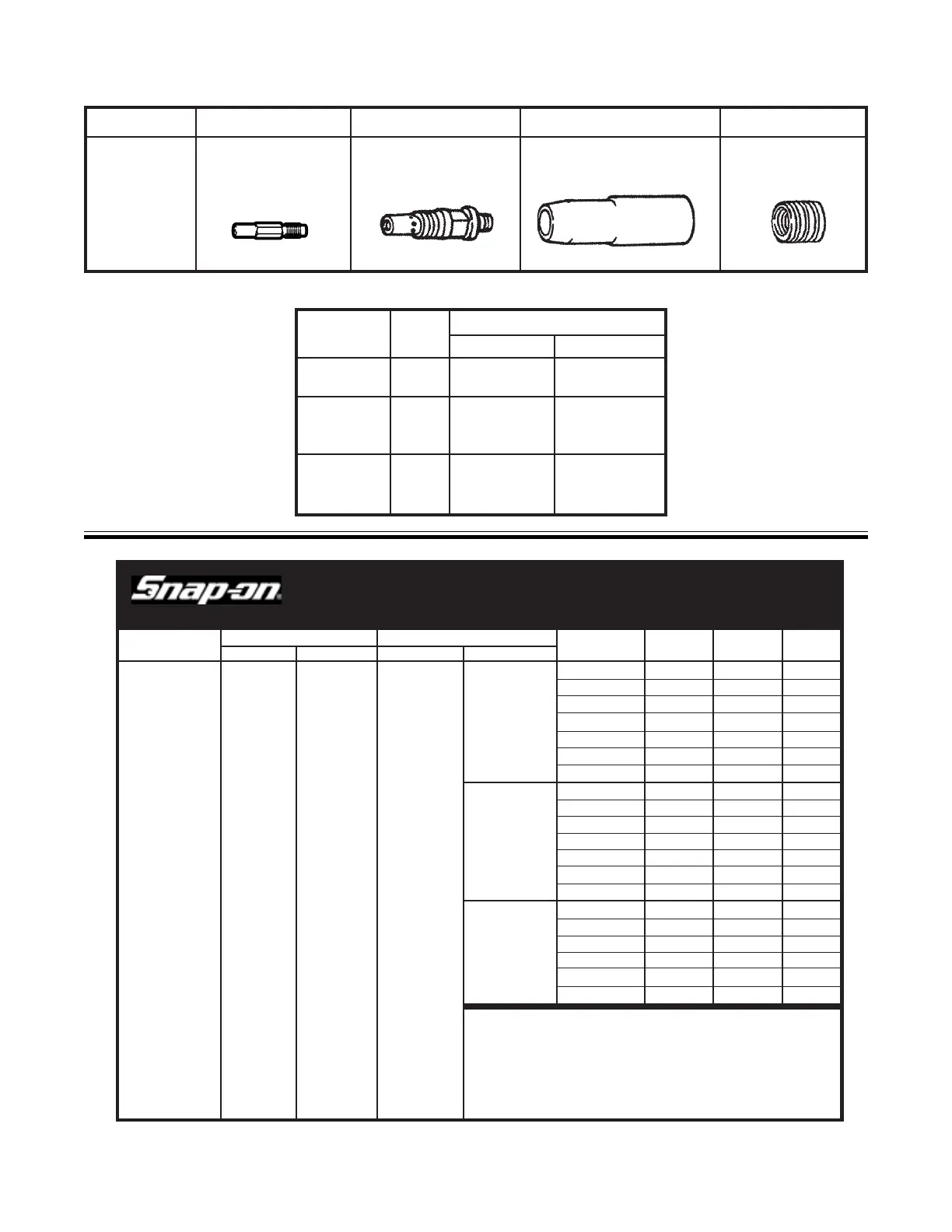

CONSUMABLE PARTS BREAKDOWN - 35XL SERIES M.I.G. TORCH
XL STYLE FRONT END - STANDARD
WIRE SIZE CONTACT TIP GAS DIFFUSER NOZZLE INSULATOR
.020 - .025 inch M3-T25 M6-D M6-C62 M6-B
.030 inch M3-T30 (5/8" I.D.) (includes rings)
035 inch M3-T35 (1-7/16"
.040 - .047 inch M3-T45 length)
LINERS FOR STEEL WELDING
ORDER NUMBER
WIRE TORCH
SIZE LENGTH
LINER W/SEAL SEAL ONLY
.020-.030 inch 10 feet M103L-B M3LS-B (Blue)
12 feet M123L-B
10 feet M104L-N
.035-.045 inch 12 feet M124L-N M4LS-N (Natural)
15 feet M154L-N
10 feet M106L-G
1/16 inch 12 feet M126L-G M6LS-G (Green)
15 feet M156L-G
SHIELDING GAS WELDING WIRE MIG WIRE AMPS
MATERIAL TYPE FLOW TYPE SIZE THICKNESS VOLTAGE SPEED OUTPUT
18 Ga.(.048") 1 1/2 80
16 Ga.(.060") 2 3/4 90
14 Ga.(.075") 3 2 110
.030" 12 Ga.(.105") 3 3 120
1/8" 4 4 135
3/16" 5 6 1/2 150
1/4" 5 8 160
14 Ga.(.075") 2 1 110
12 Ga.(.105") 3 2 115
1/8" 3 2 1/2 120
.035" 3/16" 4 3 1/2 140
75% 1/4" 4 4 150
CARBON ARGON 25 ER70S-6 5/16" 5 6 1/2 160
STEEL 25% CFH 3/8" 6 7 1/2 190
CO2 (Min.) 1/8" 3 2 150
3/16" 3 3 200
.045" 1/4" 4 3 210
5/16" 4 4 220
3/8" 5 5 240
1/2" 6 7 1/2 260
1/16"
z Optional Drive Roller and Liner are required.
Guide For Setting Welder - Adjust For Best Results
GAS METAL ARC (MIG) PROCESS - DCEP (REVERSE POLARITY)
Note: Settings are approximate and may vary. Adjust for best results.
