Scope Multimeter Operations Navigation
9.2 Navigation
The following section describes how to navigate the screen interface when viewing on the
Diagnostic Tool. When using the M2 Scope/Meter as a stand-alone test meter refer to M2 Scope/
Meter Controls, and Features on page 88 for navigation instructions.
9.2.1 Screen Layout
The scope multimeter screens typically include the following sections (Figure 9-8):
1— Scope Multimeter Toolbar—allows you to configure the tool for the type of test and to
adjust the settings for each channel, or trace.
2— Main Body—displays test results. Options on the toolbar let you select how tests display
on the screen.
3— Trace Details—displays trace settings, which can be adjusted or switched through the
touch screen.
4— Record/Playback Control Toolbar—allows you to record and navigate paused data

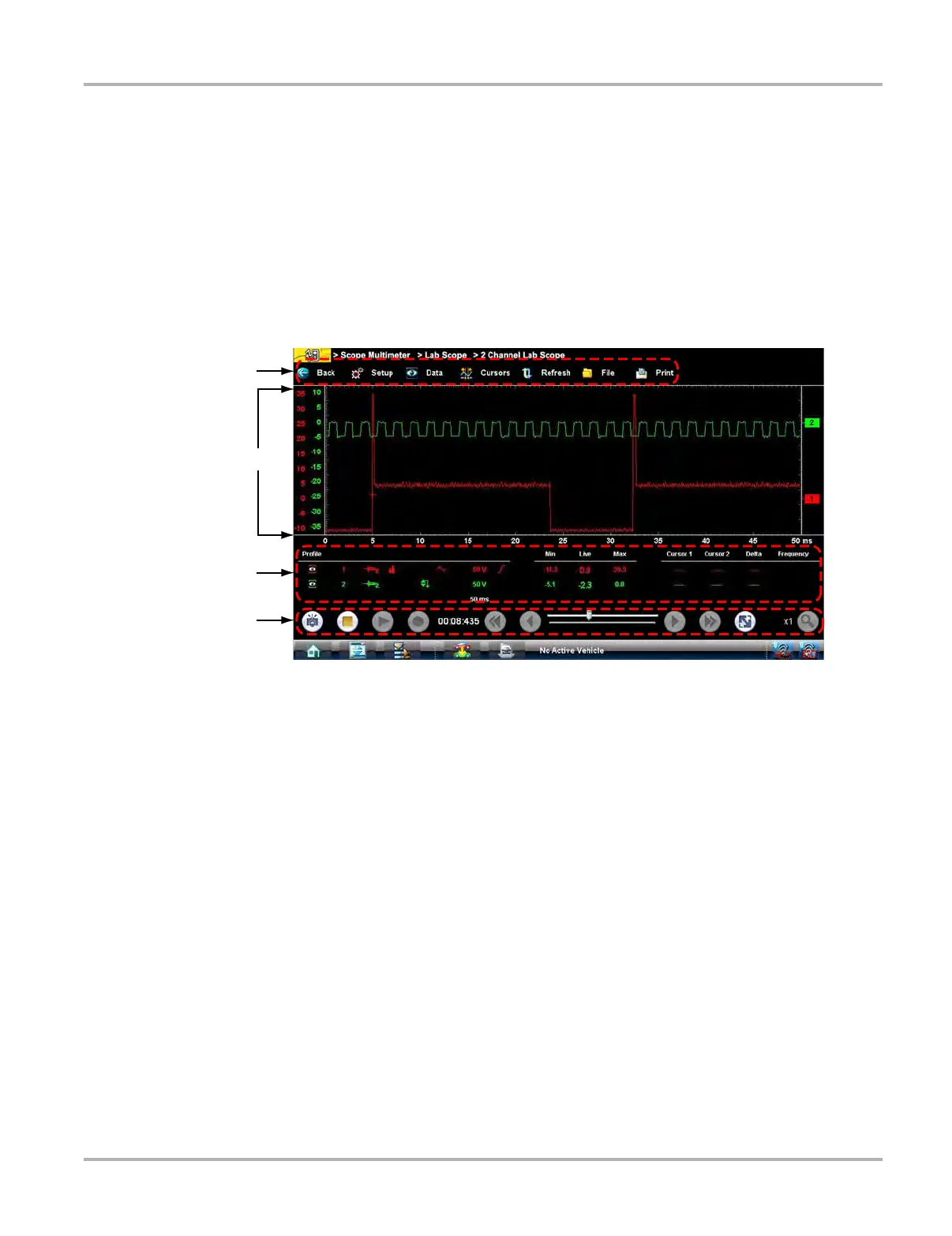

Figure 9-8 Scope Multimeter screen layout
