Turn off the machine before assembly. Do not connect or disconnect any cables when the machine is turned on.
4.1 Assemble the Laser Engraver and Cutter

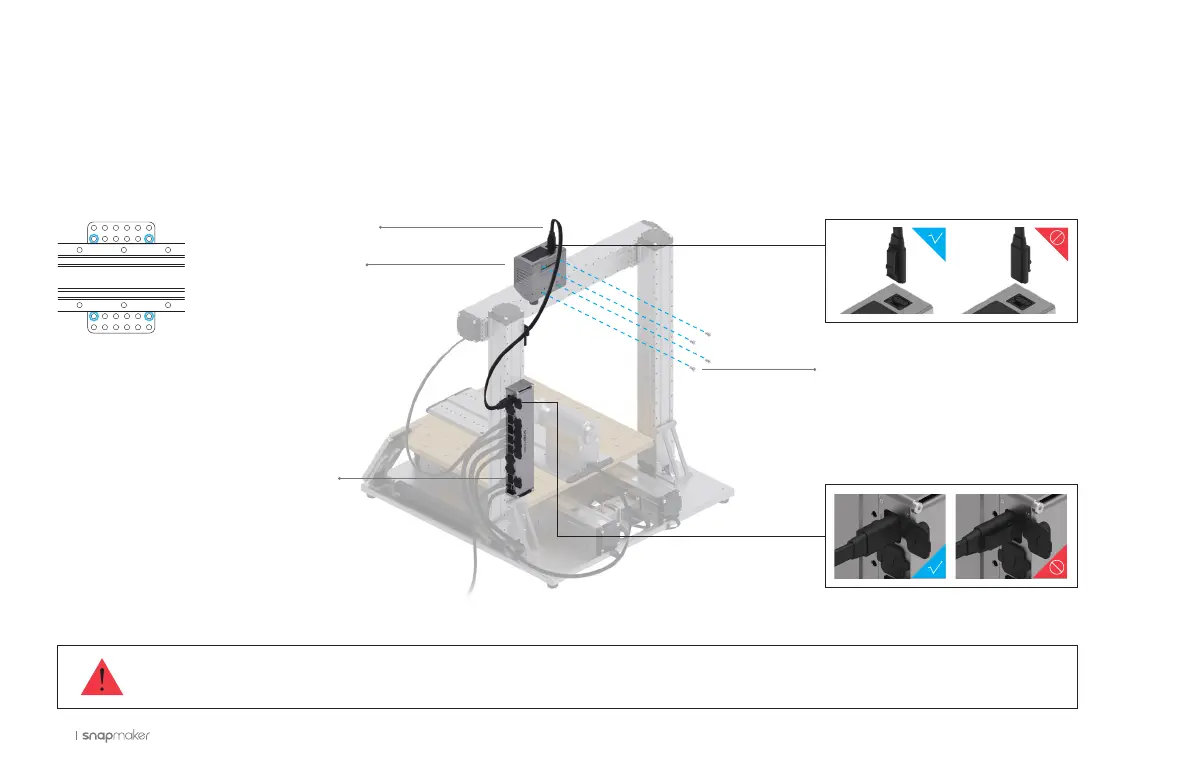

Attach the Laser Module to the Slider. Connect the Laser Module to the Controller from the behind of the X Axis,
and lock the Toolhead cable into the Cable Holder. Leave enough length for the Toolhead to move.
Toolhead Cable × 1
Controller × 1
Laser Module × 1
M4 × 8 Hex Socket
Head Screw × 4
