Snapmaker Enclosure
|
9
Enclosure Assembly
48CA BEAM A150-2
× 1
24 BEAM A150-1
× 1
01
/28

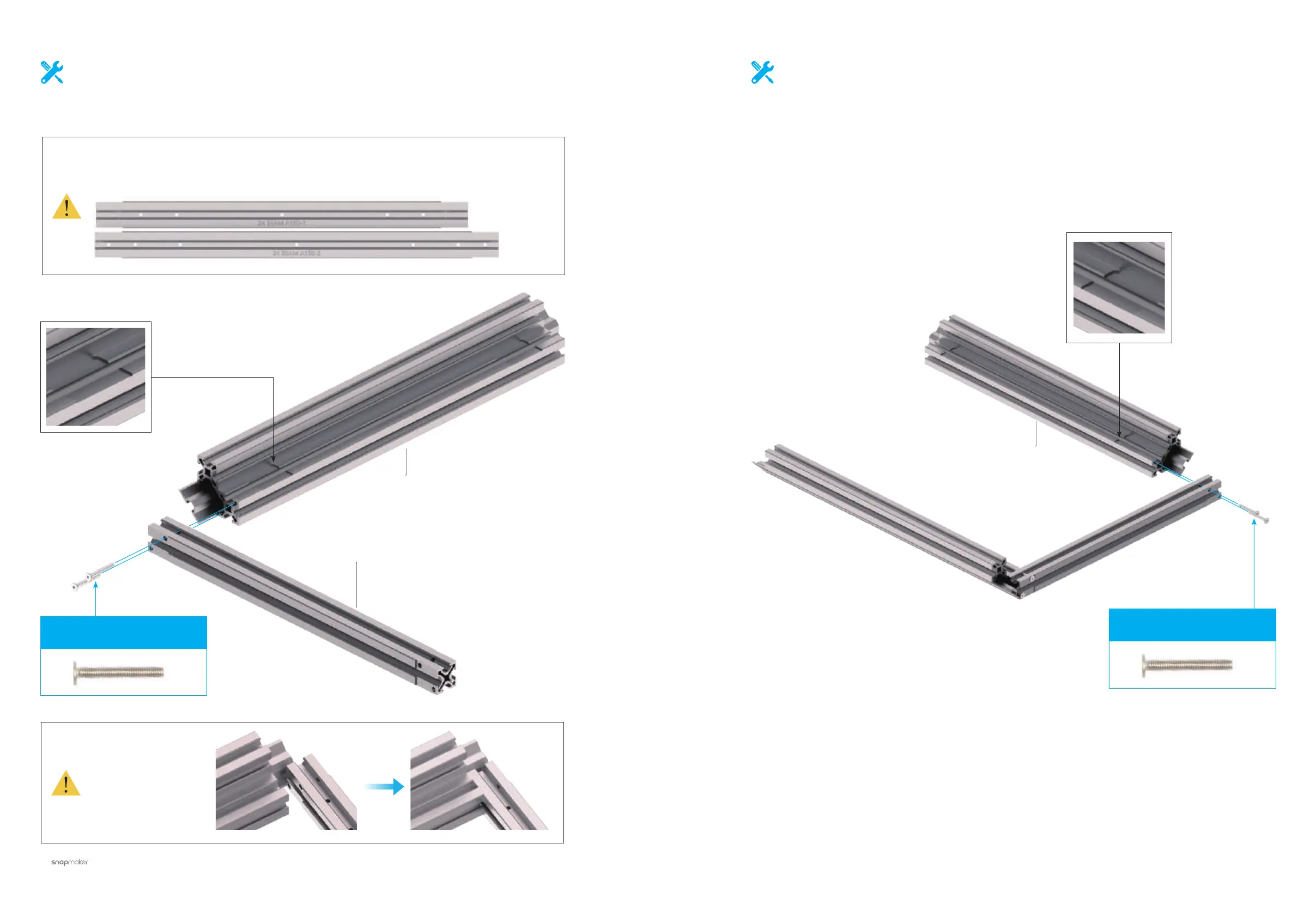

Assemble the bottom rectangular frame – 1.
02
/28
Assemble the bottom rectangular frame –
2.
48CA BEAM A150-2
× 1
M4 × 28 Hex Socket Short Head
Screw
× 2
1:1
M4 × 28 Hex Socket Short Head
Screw
× 2
1:1
Each beam of the enclosure frame is engraved with its model name, among which the 24
BEAM A150-1 and 24 BEAM A150-2 vary in length. Make sure to identify the beams by their
names and lengths when assembling.
Make sure the
48CA Beams are
accurately mounted
onto the grooves of
the 24 Beams when
assembling.
