30
|
Assembling the Machine
Cable Clip ×3
M5 × 12 Screw × 3
 19
/37

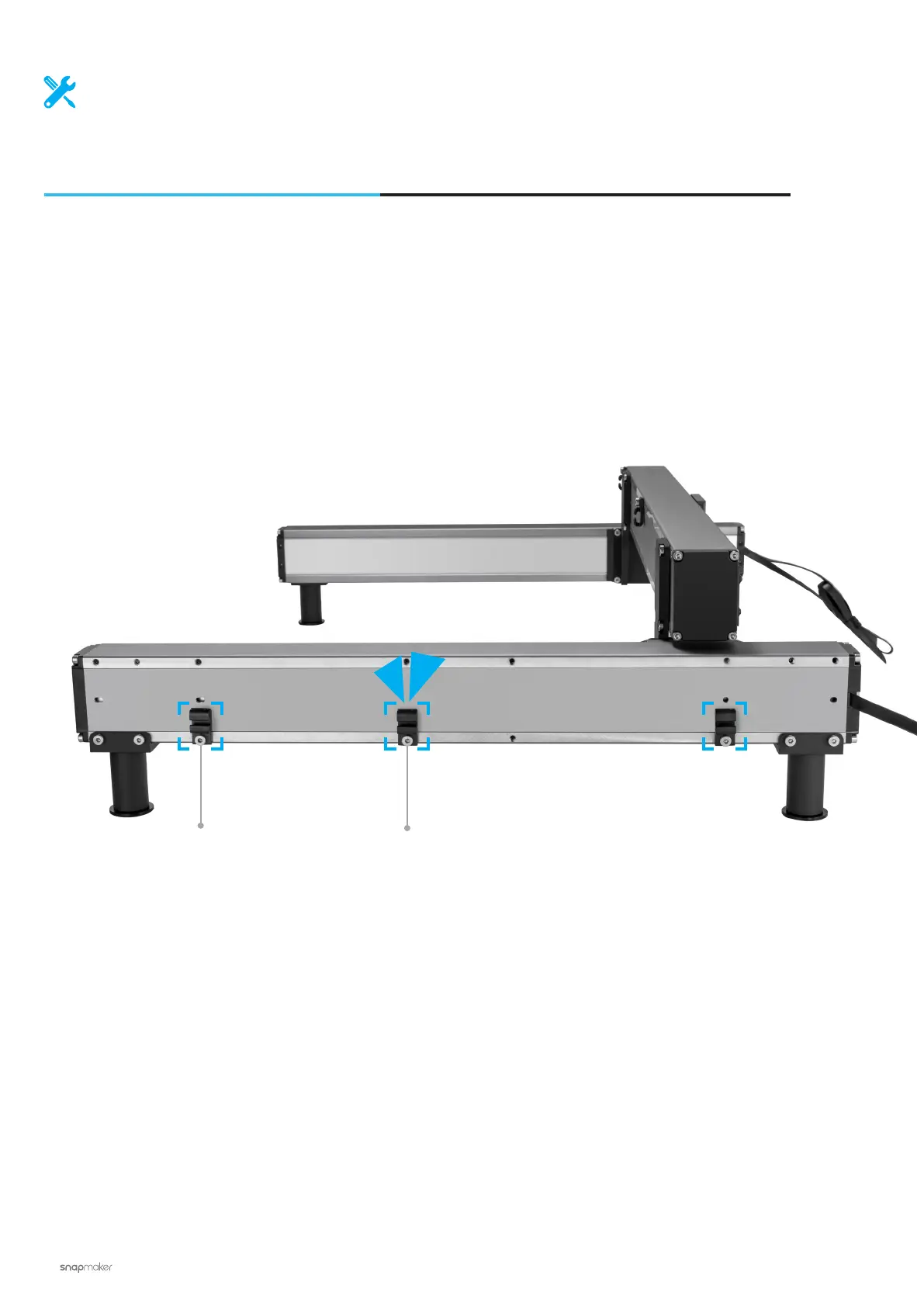

Attach the cable clips to the left Y axis.
