32
|
Assembling the Machine
Cable Clip ×7M5 × 12 Screw × 7
 21
/37

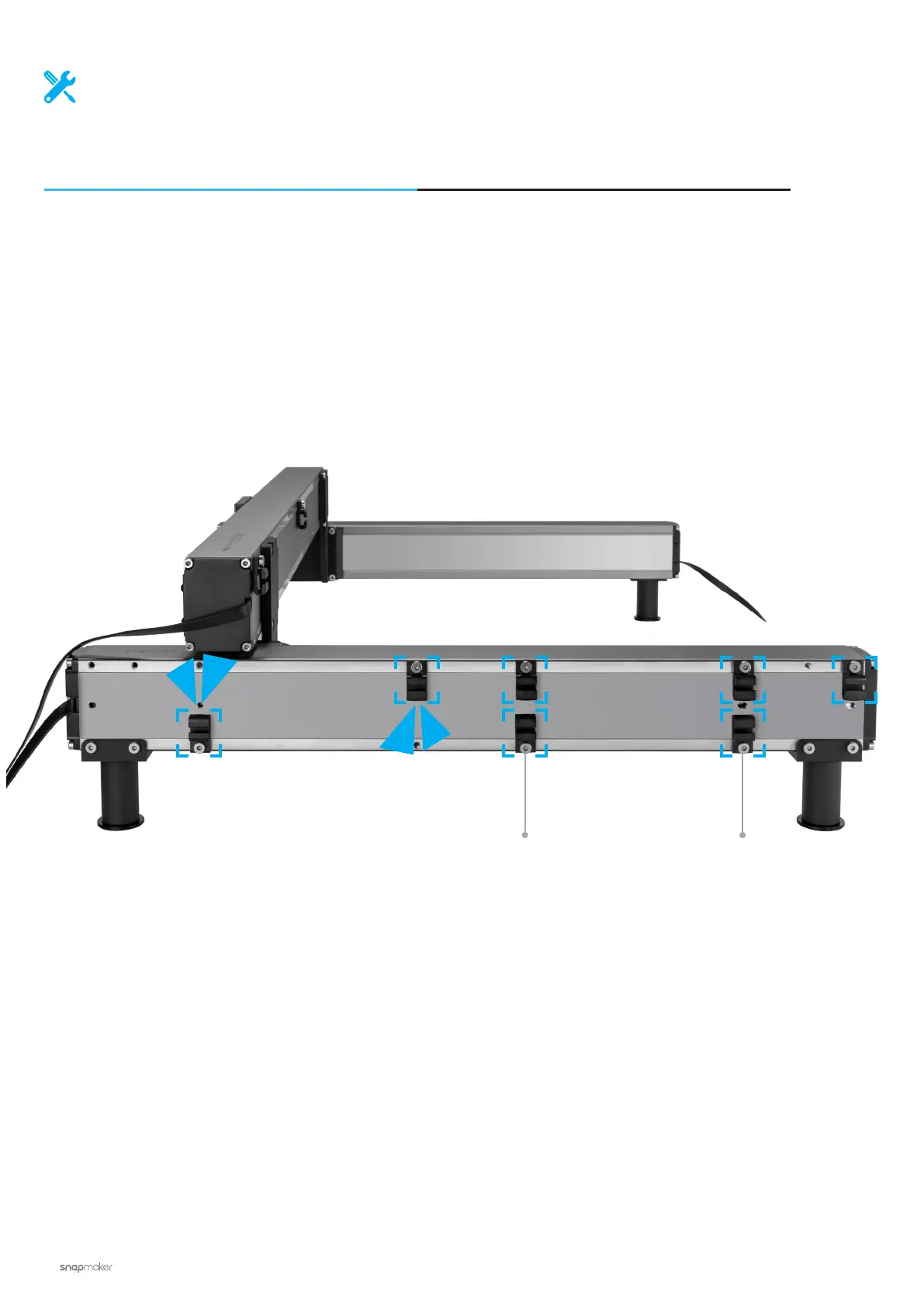

Attach the cable clips to the right Y axis.
