Features and Controls
Ground Speed Levers
These levers control the ground speed of the rider. The
left lever controls the left rear drive wheel and the right
lever controls the right rear drive wheel.
Pushing the levers out to the side, away from the
operator’s lap (top inset, Figure 1), is the proper position
for starting the rider. Pulling the levers in across the
operator’s lap puts the levers in DRIVE positions.
From DRIVE position, moving a lever forward increases
the FORWARD speed of the associated wheel. Pulling
back on a lever increases the REVERSE speed. The
further a lever is pushed, the faster the drive wheel will
turn.
See DRIVING PRACTICE for steering instructions.
Parking Brake Lever
Move the parking brake lever (bottom inset, Figure 1) up
and across and into the locking notch to engage and lock
the parking brake. Move the parking brake lever across
and down to disengage the parking brake. The engine
will not start unless the parking brake is engaged.
Note: The parking brake must be disengaged before
operating the ground speed levers.
Engine Speed Control/Choke
The engine speed control/choke controls the engine
speed and choke. Always set the engine speed to FAST
for driving and mowing. Move the engine speed
control back to SLOW to decrease engine speed.
Move the engine speed control/choke control to the
CHOKE position for starting a cold engine. A warm
engine may not require choking.

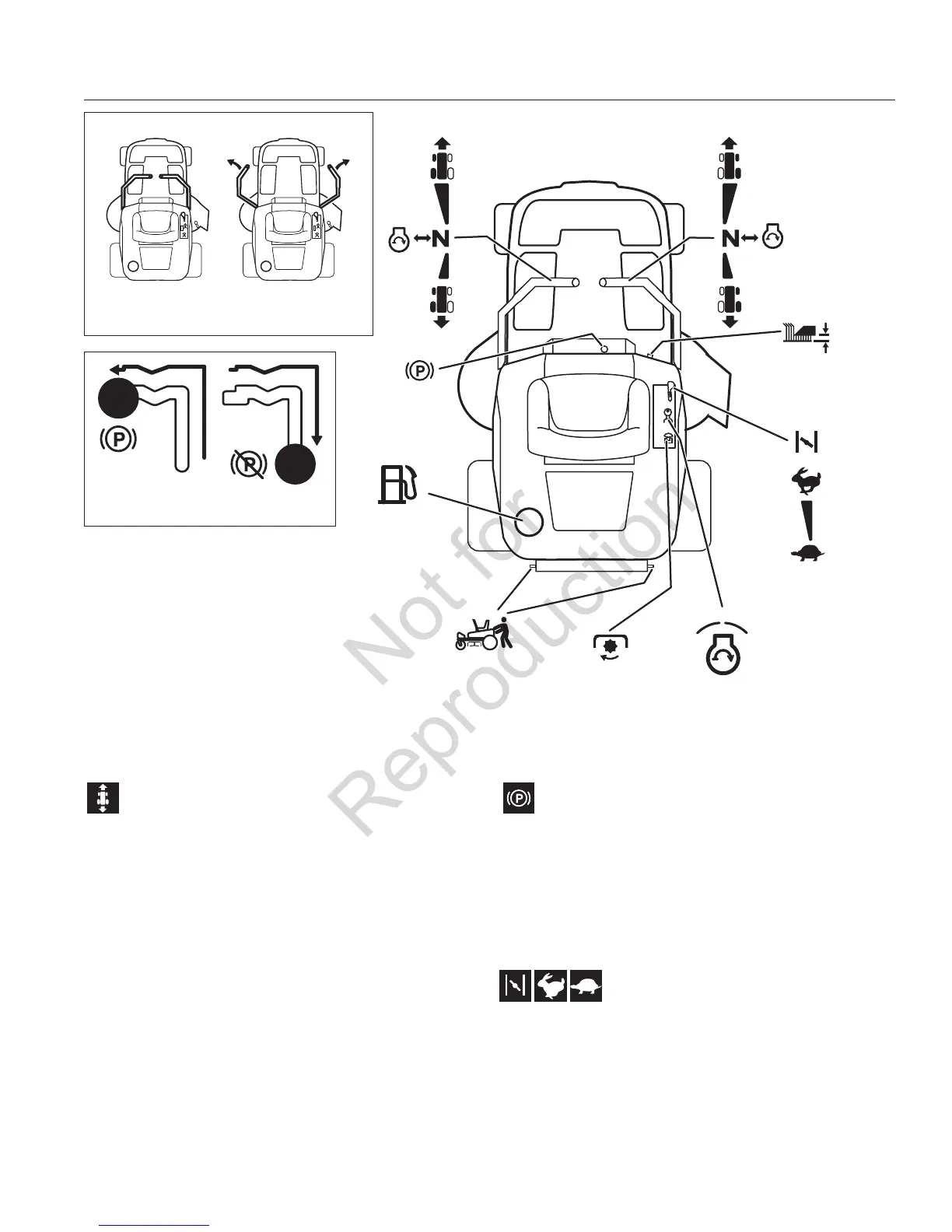

Figure 1. Controls
Left
Ground Speed
Control Lever
Right
Ground Speed
Control Lever
Fuel Tank
Cap
Transmission
Release Levers
Parking
Brake
Lever
Mower
Cutting
Height
Switch
Ignition
Switch
Mower Blade
Switch
Engine
Speed
(Fast)
Engine
Speed
(Slow)
Choke
OFF
RUN
START
Ground Speed Levers -
DRIVE Positons
Ground Speed Levers -
START/PARK Positons
Control Functions
The information below briefly describes the
function of individual controls. Starting,
stopping, driving, and mowing require the
combined use of several controls applied in
specific sequences. To learn what combination
and sequence of controls to use for various
tasks please read the entire section.
Parking Brake Lever -
DISENGAGE Positon
Parking Brake Lever -
ENGAGE Positon
