Snapper 1650 Series User Manual

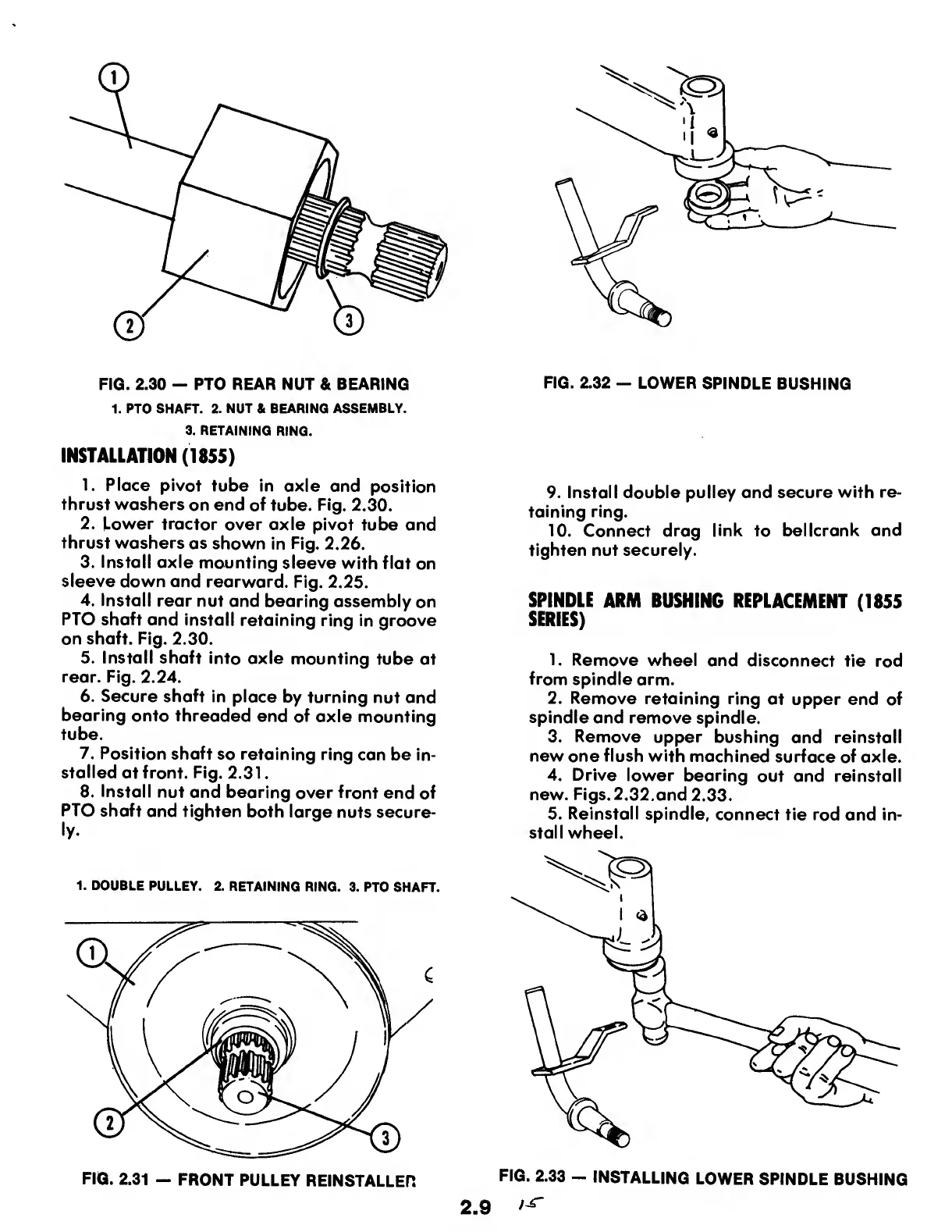

FIG. 2.30 — PTO REAR NUT & BEARING
1. PTO SHAFT. 2. NUT & BEARING ASSEMBLY.
3. RETAINING RING.
INSTALLATION (1855)
1. Place pivot tube in axle and position
thrust washers on end of tube. Fig. 2.30.
2. Lower tractor over axle pivot tube and
thrust washers as shown in Fig. 2.26.
3. Install axle mounting sleeve with flat on
sleeve down and rearward. Fig. 2.25.
4. Install rear nut and bearing assembly on
PTO shaft and install retaining ring in groove
on shaft. Fig. 2.30.
5. Install shaft into axle mounting tube at
rear. Fig. 2.24.
6. Secure shaft in place by turning nut and
bearing onto threaded end of axle mounting
tube.
7. Position shaft so retaining ring can be in¬
stalled at front. Fig. 2.31.
8. Install nut and bearing over front end of
PTO shaft and tighten both large nuts secure¬
ly-
1. DOUBLE PULLEY. 2. RETAINING RING. 3. PTO SHAFT.
FIG. 2.31 — FRONT PULLEY REINSTALLER
FIG. 2.32 - LOWER SPINDLE BUSHING
9. Install double pulley and secure with re¬
taining ring.
10. Connect drag link to bellcrank and
tighten nut securely.
SPINDLE ARM BUSHING REPLACEMENT (1855
SERIES)
1. Remove wheel and disconnect tie rod
from spindle arm.
2. Remove retaining ring at upper end of
spindle and remove spindle.
3. Remove upper bushing and reinstall
new one flush with machined surface of axle.
4. Drive lower bearing out and reinstall
new. Figs. 2.32,and 2.33.
5. Reinstall spindle, connect tie rod and in¬
stall wheel.
FIG. 2.33 - INSTALLING LOWER SPINDLE BUSHING
2.9 tjr
