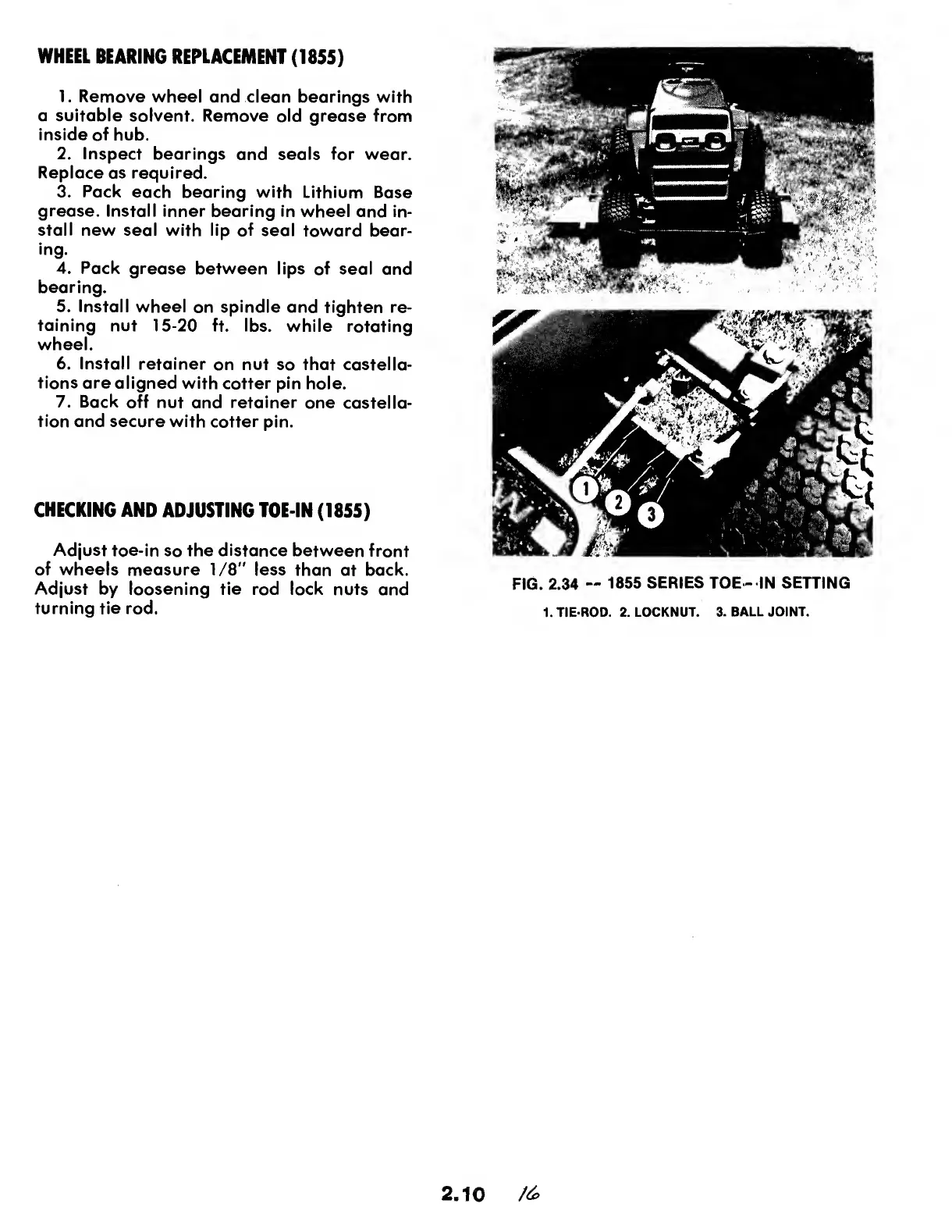

WHEEL BEARING REPLACEMENT (1855)
1. Remove wheel and clean bearings with
a suitable solvent. Remove old grease from
inside of hub.
2. Inspect bearings and seals for wear.
Replace as required.
3. Pack each bearing with Lithium Base
grease. Install inner bearing in wheel and in¬
stall new seal with lip of seal toward bear¬
ing.
4. Pack grease between lips of seal and
bearing.
5. Install wheel on spindle and tighten re¬
taining nut 15-20 ft. lbs. while rotating
wheel.
6. Install retainer on nut so that castella-
tions are aligned with cotter pin hole.
7. Back off nut and retainer one castella-
tion and secure with cotter pin.
CHECKING AND ADJUSTING TOE-IN (1855)
Adjust toe-in so the distance between front
of wheels measure 1/8" less than at back.
Adjust by loosening tie rod lock nuts and
turning tie rod.
FIG. 2.34 — 1855 SERIES TOE - IN SETTING
1. TIE-ROD. 2. LOCKNUT. 3. BALL JOINT.
