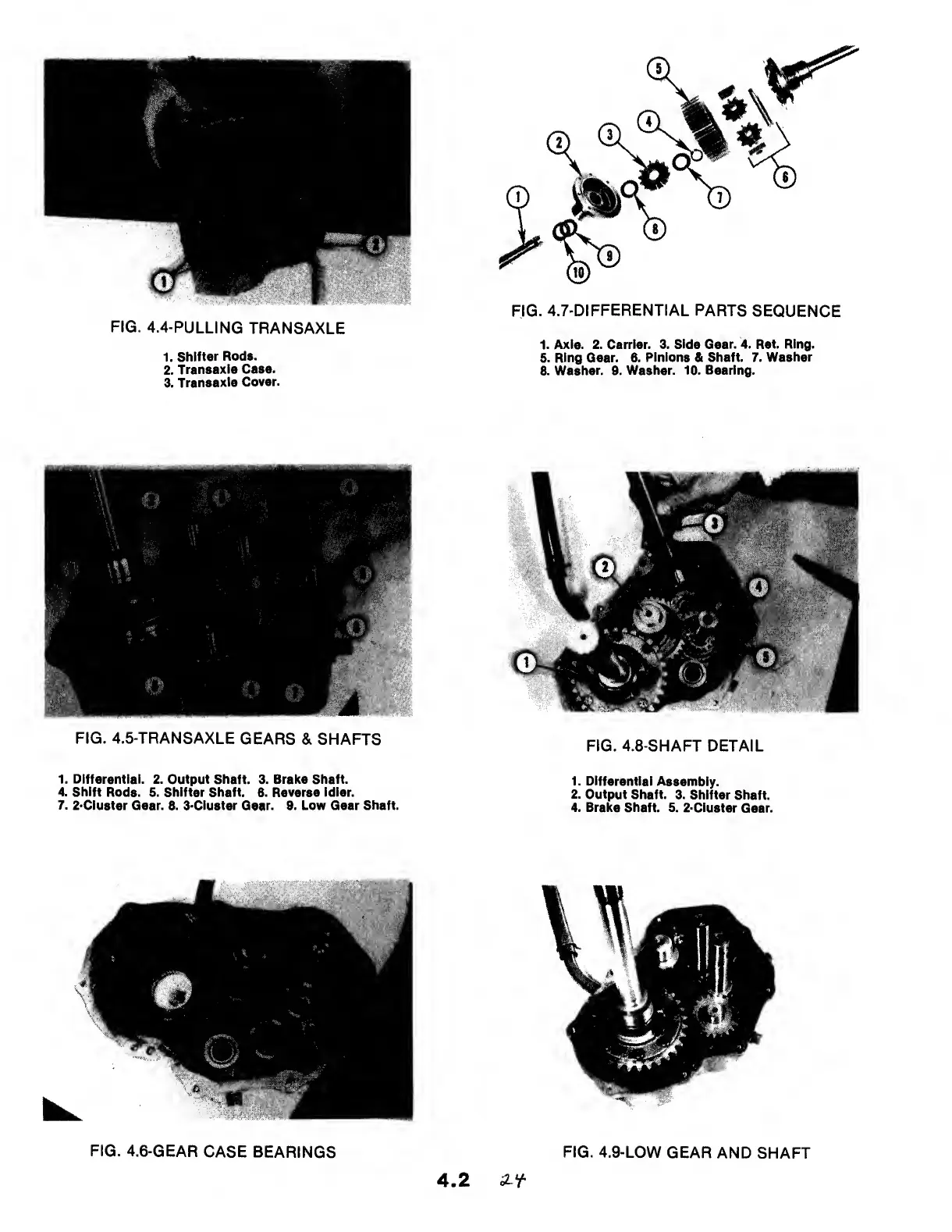

FIG. 4.4-PULLING TRANSAXLE
1. Shifter Rods.
2. Transaxle Case.
3. Transaxle Cover.
FIG. 4.5-TRANSAXLE GEARS & SHAFTS
1. Differential. 2. Output Shaft. 3. Brake Shaft.
4. Shift Rods. 5. Shifter Shaft. 6. Reverse Idler.
7. 2-Cluster Gear. 8. 3-Cluster Gear. 9. Low Gear Shaft.
FIG. 4.7-DIFFERENTIAL PARTS SEQUENCE
1. Axle. 2. Carrier. 3. Side Gear. 4. Ret. Ring.
S. Ring Gear. 6. Pinions & Shaft. 7. Washer
8. Washer. 9. Washer. 10. Bearing.
FIG. 4.8-SHAFT DETAIL
1. Differential Assembly.
2. Output Shaft. 3. Shifter Shaft.
4. Brake Shaft. 5. 2-Cluster Gear.
FIG. 4.6-GEAR CASE BEARINGS
FIG. 4.9-LOW GEAR AND SHAFT
