Snapper 1650 Series User Manual

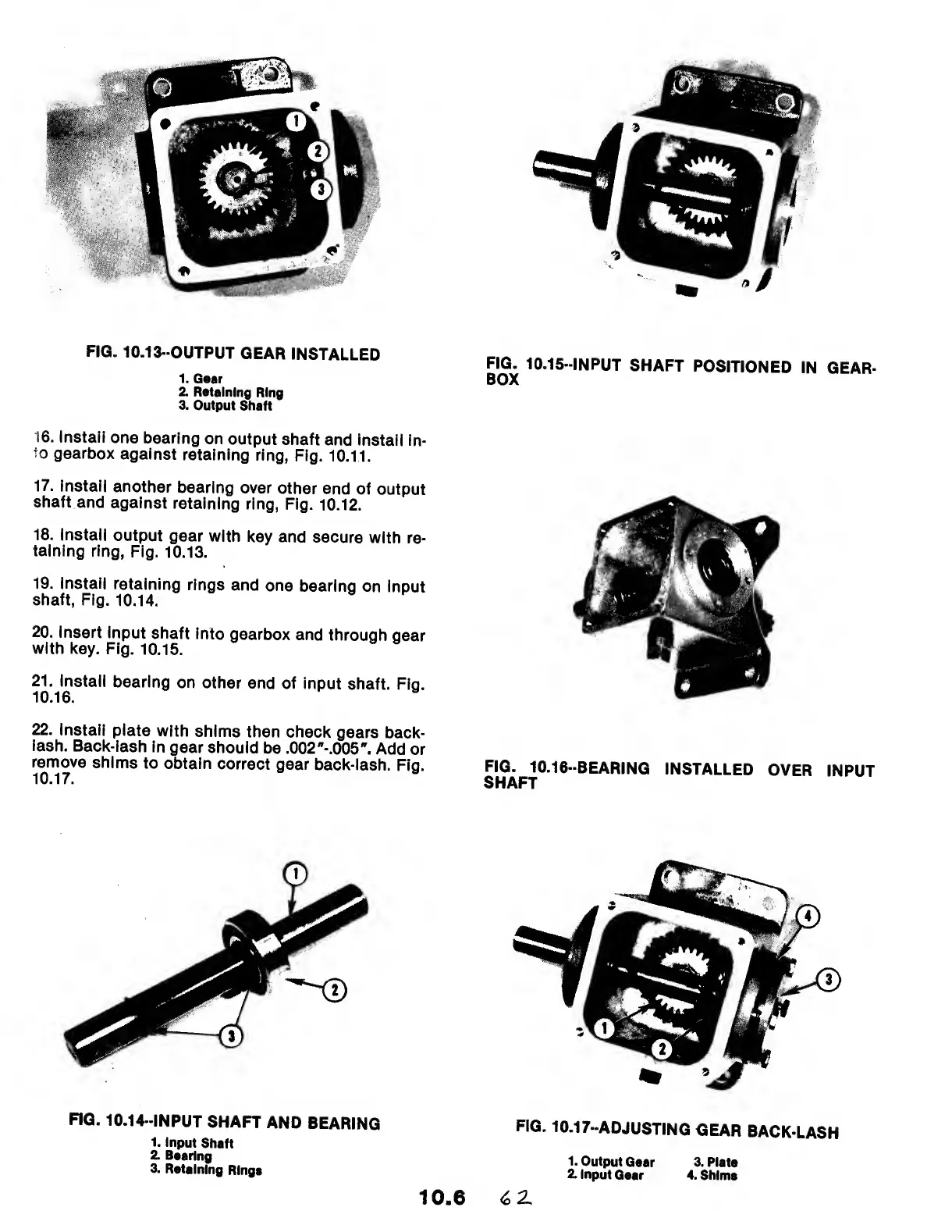

FIG. 10.13 -OUTPUT GEAR INSTALLED
1. Gear
2. Retaining Ring
3. Output Shaft
16. Install one bearing on output shaft and install in¬
fo gearbox against retaining ring, Fig. 10.11.
17. Install another bearing over other end of output
shaft and against retaining ring, Fig. 10.12.
18. Install output gear with key and secure with re¬
taining ring, Fig. 10.13.
19. Install retaining rings and one bearing on input
shaft, Fig. 10.14.
20. Insert input shaft into gearbox and through gear
with key. Fig. 10.15.
21. Install bearing on other end of input shaft. Fig.
22. I n stall plate with shims then check gears back¬
lash. Back-lash in gear should be .002"-.005". Add or
remove shims to obtain correct gear back-lash. Fig.
FIG. 10.16-BEARING INSTALLED OVER INPUT
SHAFT
FIG. 10.14-INPUT SHAFT AND BEARING
1. input Shaft
2. Bearing
3. Retaining Rings
FIG. 10.17-ADJUSTING GEAR BACK LASH
1. Output Gear 3. Plate
2. Input Gear 4. Shims
10.6 6Z
