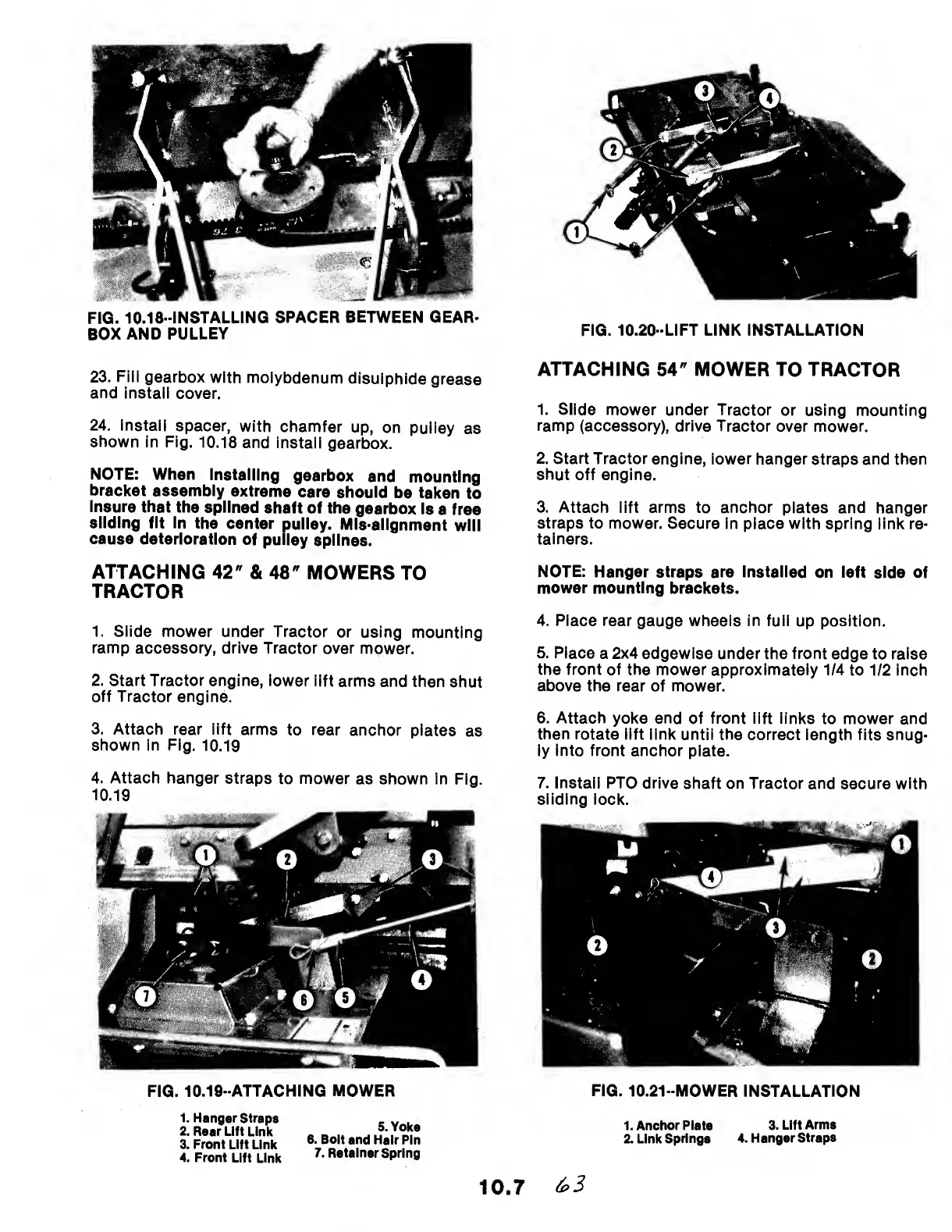

10.19-ATTACHING MOWER
1. Hanger Straps
2. Rear Lift Link
3. Front Lift Link
4. Front Lift Link
5. Yoke
6. Bolt and Hair Pin
7. Retainer Spring
FIG. 10.21- MOWER INSTALLATION
1. Anchor Plate 3. Lift Arms
2. Link Springs 4. Hanger Straps
10.7
FIG. 10.18-INSTALLING SPACER BETWEEN GEAR-
BOX AND PULLEY
FIG. 10.20-LIFT LINK INSTALLATION
23. Fill gearbox with molybdenum disulphide grease
and install cover.
24. Install spacer, with chamfer up, on pulley as
shown in Fig. 10.18 and install gearbox.
NOTE: When installing gearbox and mounting
bracket assembly extreme care should be taken to
insure that the splined shaft of the gearbox Is a free
sliding fit In the center pulley. Mls-alignment will
cause deterioration of pulley splines.
ATTACHING 54" MOWER TO TRACTOR
1. Slide mower under Tractor or using mounting
ramp (accessory), drive Tractor over mower.
2. Start Tractor engine, lower hanger straps and then
shut off engine.
3. Attach lift arms to anchor plates and hanger
straps to mower. Secure in place with spring link re¬
tainers.
ATTACHING 42" & 48" MOWERS TO NOTE: Hanger straps are installed on left side of
TRACTOR mower mounting brackets.
1. Slide mower under Tractor or using mounting
ramp accessory, drive Tractor over mower.
2. Start Tractor engine, lower lift arms and then shut
off Tractor engine.
3. Attach rear lift arms to rear anchor plates as
shown in Fig. 10.19
4. Place rear gauge wheels in full up position.
5. Place a 2x4 edgewise under the front edge to raise
the front of the mower approximately 1/4 to 1/2 inch
above the rear of mower.
6 . Attach yoke end of front lift links to mower and
then rotate lift link until the correct length fits snug¬
ly into front anchor plate.
4. Attach hanger straps to mower as shown in Fig. 7 . install PTO drive shaft on Tractor and secure with
10 - 1 9 sliding lock.
