15

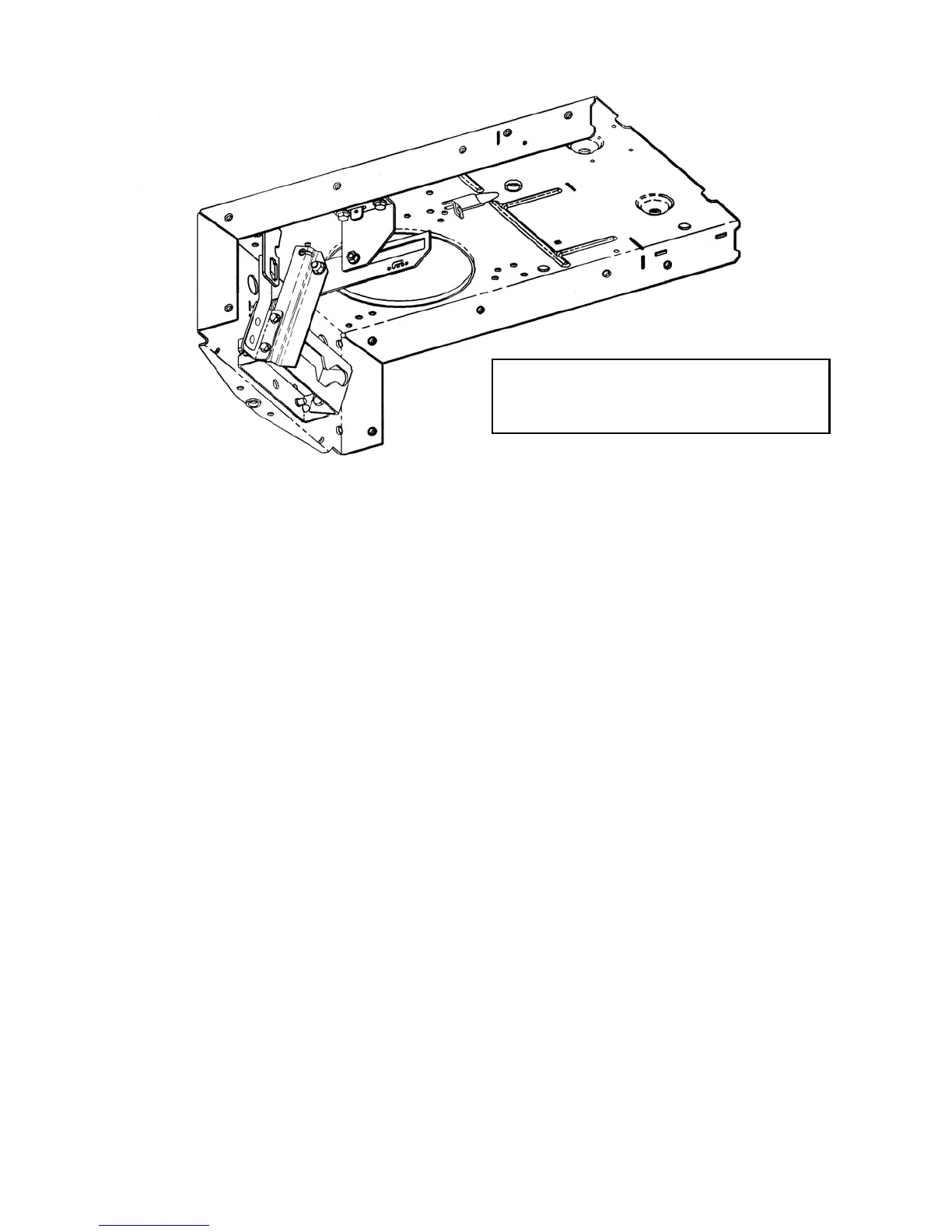

SMOOTH CLUTCH ASSEMBLY
ITEM PART NO. DESCRIPTION
1 5-3114 ASSEMBLY, Smooth Clutch (Includes Items 2 thru 6)
2 5-4243 HUB, Driven Disc (assembly)
3 5-3103 DISC, Driven (rubber tire bonded to rim)
4 1-4523 WASHER, Thrust
5 3-2331 PLATE, Drive Disc
6 9-0585 NUT, 5/16-18 Hex Flange Lock (4)
7 5-2497 ASSEMBLY, Brake Lever (Includes Brake Lining & Rivet)
8 1-2313 RING, 3/8” External Retaining
9 9-0303 NUT, 1/4-28 Hex Top Lock
10 9-1294 WASHER, 1/4” Flat
11 7-2593 SPACER
12 9-1504 SCREW, 1/4-28 x 1" Hex Head Cap, Grade 5 (washer face)
13 7-2406 SPRING, Brake Return
14 1-3885 SPRING, Clutch Brake
15 4-6162 LIFT, Yoke
16 1-1048 BEARING, Yoke (2)
17 1-1201 NUT, 5/16-24 Hex Center Lock (2)
18 9-0238 SCREW, 5/16-24 x 1" Hex Head Cap, Grade 5 (2)
19 9-1198 SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap
20 3-3291 COLLAR, Yoke
21 1-1763 WASHER, 5/16” Flat (2)
22 7-3733 ARM, Yoke
23 9-0539 SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap (2)
24 1-5464 STUD (3/8-24 thread)
25 9-0390 WASHER, 3/8” Internal Tooth
26 9-1630 NUT, 3/8-24 Hex, Grade 5 or B
27 4-7190 BRACKET, Slide
28 9-0037 PIN, 3/32 x 3/4” Cotter
29 1-4663 SLIDE HALF (2)
30 1-4664 BOLT, 5/16-18 Shoulder
31 9-0187 WASHER, 5/16” Split Lock
32 9-0196 NUT, 5/16-18 Hex, Grade 5 or B
33 9-0122 WASHER, 3/8” SAE Flat (2)
34 5-9068 ASSEMBLY, Leaf Spring
R. E. RIDER SERIES 22 MANUAL No. 06128
NOTE:
Brake Return Replacement Kit (6-1197)
is made up of items 11 and 13.
