25

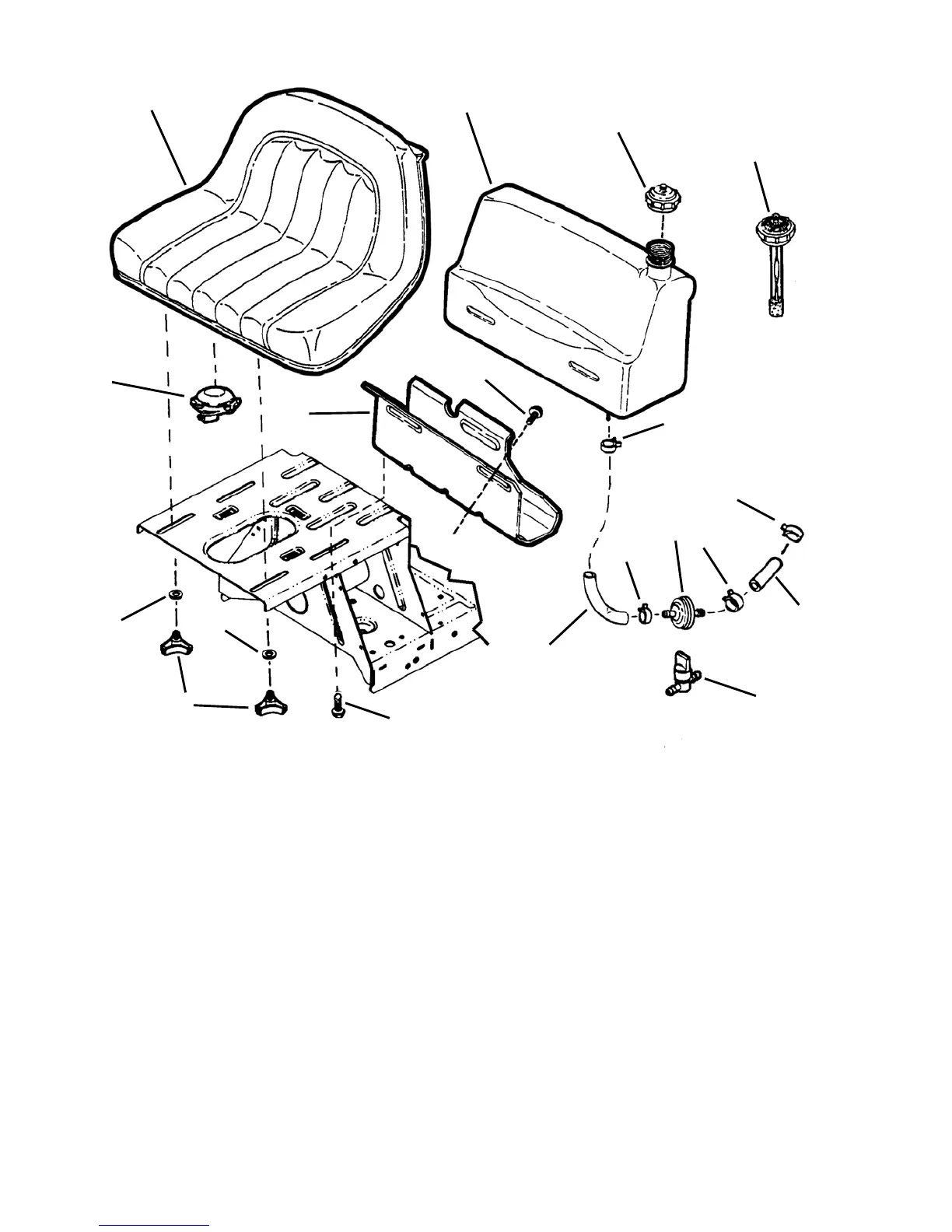

FUEL TANK & OPERATORS SEAT
ITEM PART NO. DESCRIPTION
1 2-8595 SEAT, Operator (12, 14.5 & 15HP Models) (shown)
-- 2-8650 SEAT, Operator (9 & 10HP Models) (not shown)
2 5-1905 ASSEMBLY, Fuel Tank (9 & 10HP Models) (Includes Item 3)
-- 5-2435 ASSEMBY, Fuel Tank with Gauge (12, 14.5 & 15HP Models) (Incl. Item 3A)
3 1-2515 CAP, Fuel Tank
3A 1-9377 CAP, Fuel Tank (With Gauge)
4 7-6272 HOSE, Fuel (8-1/2" Long) (Briggs & Stratton: 8HP thru 14HP)
-- 1-2912 HOSE, Fuel (12-1/2” Long) (Kohler Only!)
5 1-4359 FILTER, Fuel (In-Line)
6 1-2222 CLAMP, Fuel Line (4)
7 3-3377 BRACKET, Fuel Tank (Rear)
8 9-1542 SCREW, 5/16-18 x 5/8" Pan Head Self-Tap (Torx #T-40) (2)
9 2-3191 KNOB, Seat Adjusting (2)
10 1-3849 SPACER, 5/16 (2)
11 2-4507 VALVE, Fuel Shut-Off (Accessory)
12 9-1038 BOLT, 5/16-18 x 1/2" Hex Flange Lock w/Nylon Patch (2)
13 2-9211 SWITCH, Seat (Normally Closed)
14 7-7351 HOSE, Fuel (3-1/2” Long)
R. E. RIDER SERIES 22 MANUAL No. 06128
13
10
8
7
6
5
4
3
2
1
3A
6
6
6
9
10
12
11
14
To Next Page
