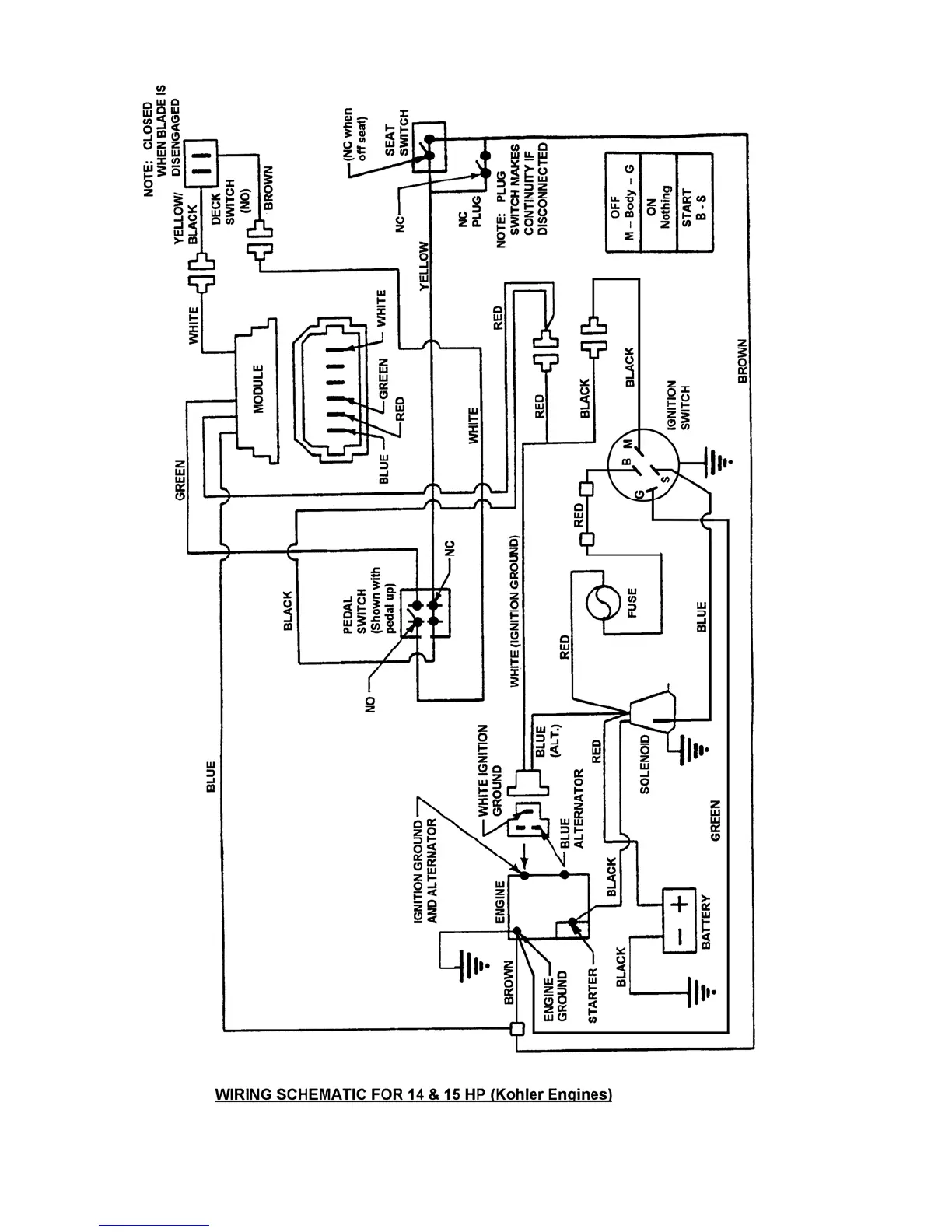

Snapper 301022BE - WIRING SCHEMATIC: 14 & 15 HP Kohler Engines

44 pages

Save Page as PDF

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

41

WIRING SCHEMATICS

R. E. RIDER SERIES 22 MANUAL No. 06128

Table of Contents

Related product manuals

Preview: 280922B, 281022BE, 300922B, 301022BE, W280922B, W301022BE
