24

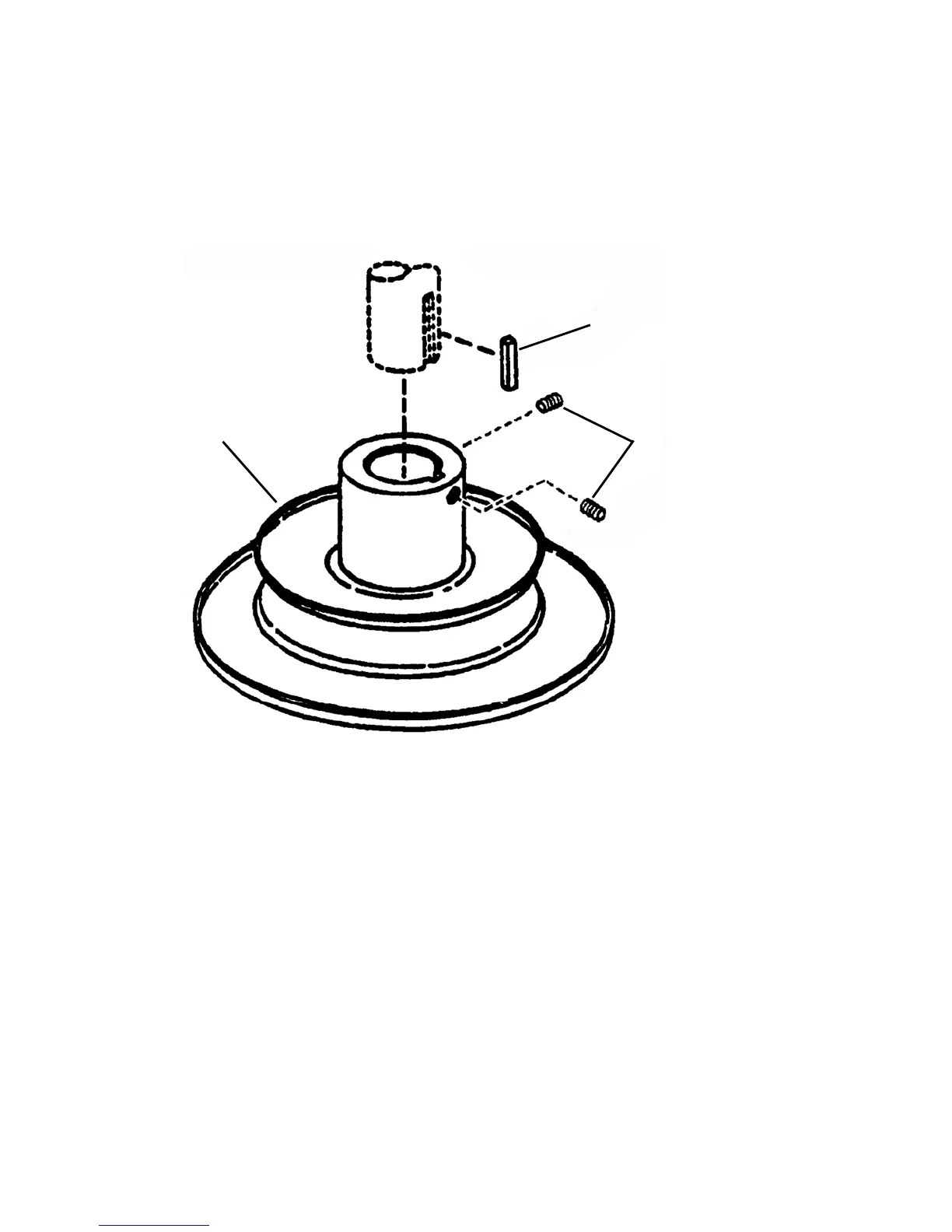

DRIVE DISC A
SSEMBLY
ITEM
PA
RT NO.
DESCRIPT
ION
1
7-4187
W
ELDMENT, 5.25” O.D. Drive Dis
c (33" Models
)
-
7-2658
W
ELDMENT, 5.75” O.D. Drive Dis
c (28”, 30”
& 42” Models)
2
9-0132
SCREW
, 3/8-16 x 3/8” Set (2)
3
1-0210
KEY, 1/4” Square x 2”
MANUA
L No
. 06128
R. E. RIDER SERIES 22
3
2
1
23
25
Table of Contents
Rear Engine Rider
1
Table of Contents
2
Wheels, Front
3
Wheels, Rear
4
Wheels, Rear
5
Front End, Steering
6
Front End, Steering
7
Main Case
8
Differential, R.h. Fender
10
Chain Case, L.h. Fender
12
Smooth Clutch Assembly
14
Cutting Decks, Deflectors
16
Rails, Lift Arms, Cam Lift
18
Rails, Lift Arms, Cam Lift
19
Blade Stop Pedals
20
Spindle Assembly
21
Belts, Brakes, Interlock
22
Drive Disc Assembly
24
Fuel Tank & Operators Seat
25
Engines & Exhaust Muffler
26
Throttle Control
27
Decals
28
Decals
29
ELECTRICAL SYSTEMS (for 9HP Briggs Recoil Start)
30
ELECTRICAL SYSTEMS (for 10 & 12 HP Briggs)
32
ELECTRICAL SYSTEMS (for 14.5 HP Briggs)
34
ELECTRICAL SYSTEMS (for 14.5 HP Briggs)
35
ELECTRICAL SYSTEMS (for 15 HP Kohler)
36
ELECTRICAL SYSTEMS (for 15 HP Kohler)
37
Wiring Schematics
41
Hardware Bags
42
Snapper Rear Engine Rider Accessories
44
Accessories and Attachments
44
