7
42
43
44
FRONT END, STEERING
ITEM PART NO. DESCRIPTION
1 5-8030 STEERING WHEEL (for 5/8”
shaft) (includes item 2)
2 2-3781 LOGO, Steering Wheel
3 1-3862 PIN, 1/4" x 1-1/2" Roll
4 3-8243 LATCH, Parking Brake
5 2-2449 CABLE, Clutch/Brake(54.32”)
(for 28” & 30” Decks)
-- 7-4131 CABLE, Clutch (55” long)
(for 33” & 42” Decks)
6 9-0122 WASHER, 3/8 Flat (2)
7 1-1815 PAD, Clutch/Brake Pedal
8 1-0694 BUSHING, Nylon
9 4-7888 PEDAL, Clutch/Brake (weldment)
10 1-0986 BEARING, Nylon (4)
11 4-6232 SHAFT, Steering (weldment)
12 1-3321 BUSHING, Tie-Rod (4)
13 1-3023 TIE-ROD, Left Hand (7.41” long)
-- 1-2541 TIE-ROD, Left Hand (9.91” long)
14 4-1687 KING-PIN Weldment, Left Hand
15 1-2933 TIE-ROD, R. H. (7.41” long)
-- 1-2540 TIE-ROD, R. H. (9.91” long)
16 4-1688 KING-PIN, Weldment Right Hand
17 5-8040 WELDMENT, Front Axle, Narrow
(28” & 30” Deck)
-- 5-9197 WELDMENT, Front Axle, Wide
(33” Deck)
18 1-4049 FOOT PAD, Short (2)
-- 1-4048 FOOT PAD, Long (2)
ITEM PART NO. DESCRIPTION
19 1-5444 SPRING, Parking Brake
20 9-0183 WASHER, 21/32 I. Dia.(2)
21 4-6158 BUSHING, Nylon (2)
22 1-1714 PIN, Hair
23 2-3667 FOAM COVER, Steering Shaft
24 9-0296 PIN, 3/16 x 1" Cotter
25 9-1514 WASHER, 3/8” Flat (2)
26 1-2867 PIN, Hair (.125” Dia. Wire)
27 2-2881 SPACER, 1/2" (5)
28 1-0776 RING, 1/2” External Retaining
(Heavy Duty)
29 1-0746 RING, 3/4” Ext. Retaining (2)
30 9-0365 PIN, 1/8 x 3/4" Cotter (2)
31 1-0935 WASHER, 5/8 Flat (6)
32 2-3671 COVER, Steering Shaft
33 2-8395 SPACER, Pivot
34 2-8332 STUD, Shoulder (3/8-24 Thread)
35 9-0854 NUT, 3/8-24 Hex Nyloc
36 7-2648 CABLE, Brake (29” long)
37 3-4174 CONNECTOR, Cable (2)
38 9-1495 SCREW, 1/4-20 x 3/4", Gr. 5
39 9-0372 NUT, 1/4-20 Hex Center Lock
40 9-0753 PIN, 3/16" x 1-1/2" Cotter
41 9-0364 PIN, 5/32” x 1” Cotter (2)

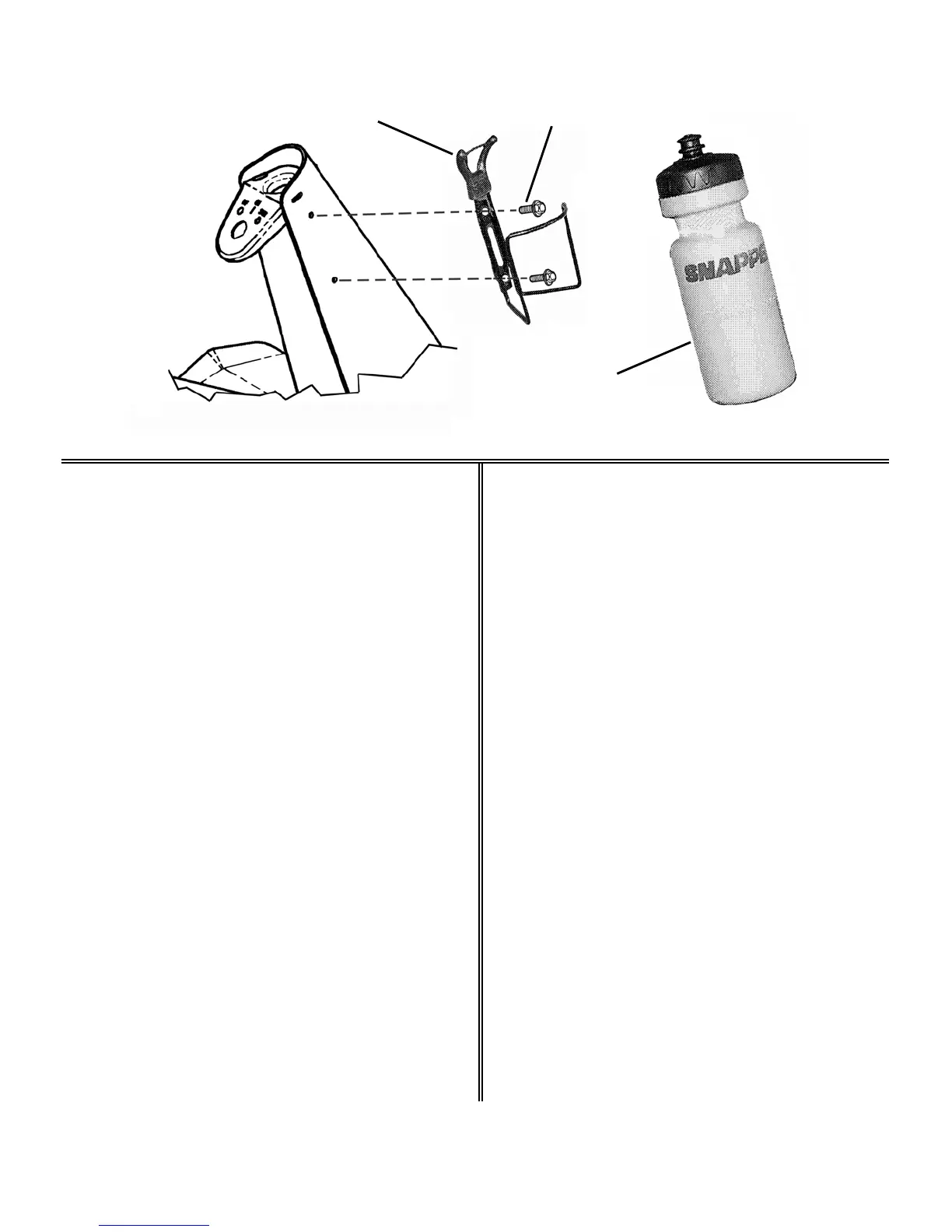

42 7-4560 HOLDER, Wire- Bottle
43 9-0913 SCREW, #10-24 x 1/2”
Hex Washer Self-Tap (2)
44 7-4561 BOTTLE, Water
45 7-4599 PLATE, Thrust
R. E. RIDER SERIES 22 MANUAL No. 06128
