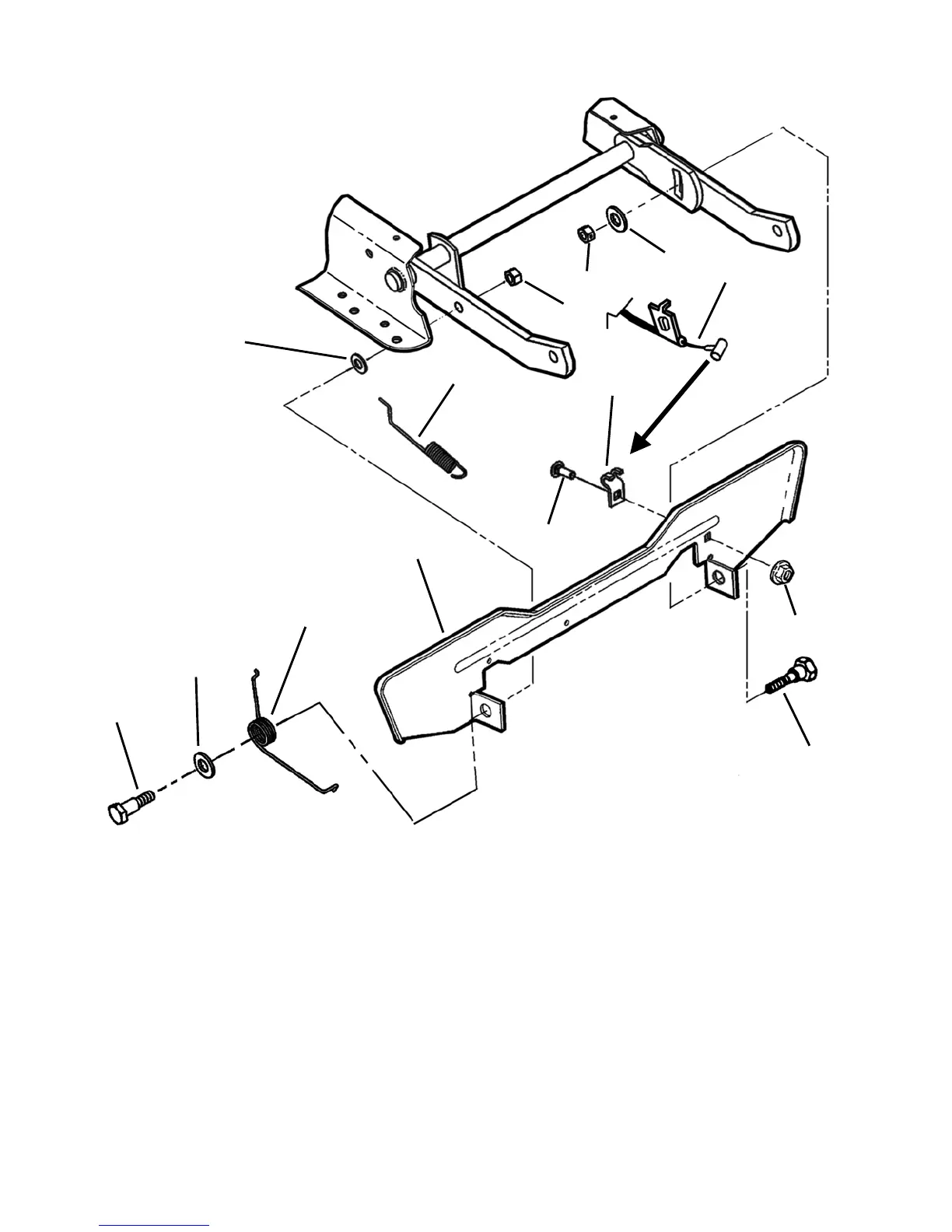

BLADE STOP PEDALS
ITEM PART NO. DESCRIPTION
1 7-3267 PEDAL, Blade Stop Control
2 3-5669 SPRING, Latching
3 1-5448 SPRING, Pedal
4 1-5495 BOLT, 3/8-24 Shoulder, Grade 5
5 1-5446 BOLT, 3/8-24 x 9/16" Shoulder
6 1-2063 WASHER, Cone 13/32” I. D.
7 9-0155 NUT, 3/8-24 Hex, Grade B
8 9-0250 WASHER, 1/2” Flat (2)
9 9-0289 NUT, 3/8-24 Hex Center Lock
10 9-1584 NUT, 1/4-20 Hex Flange Lock, Grade 5
11 7-3216 CABLE, No Reverse In Mow
12 7-3217 CLIP, Cable
13 9-1776 BOLT, 1/4-20 x 3/4” Square Neck Carriage, Grade 5
MANUAL No. 06128 R. E. RIDER SERIES 22
3
10
13
12
11
6
9
2
7
8
5
4
1
7
To Next Page
