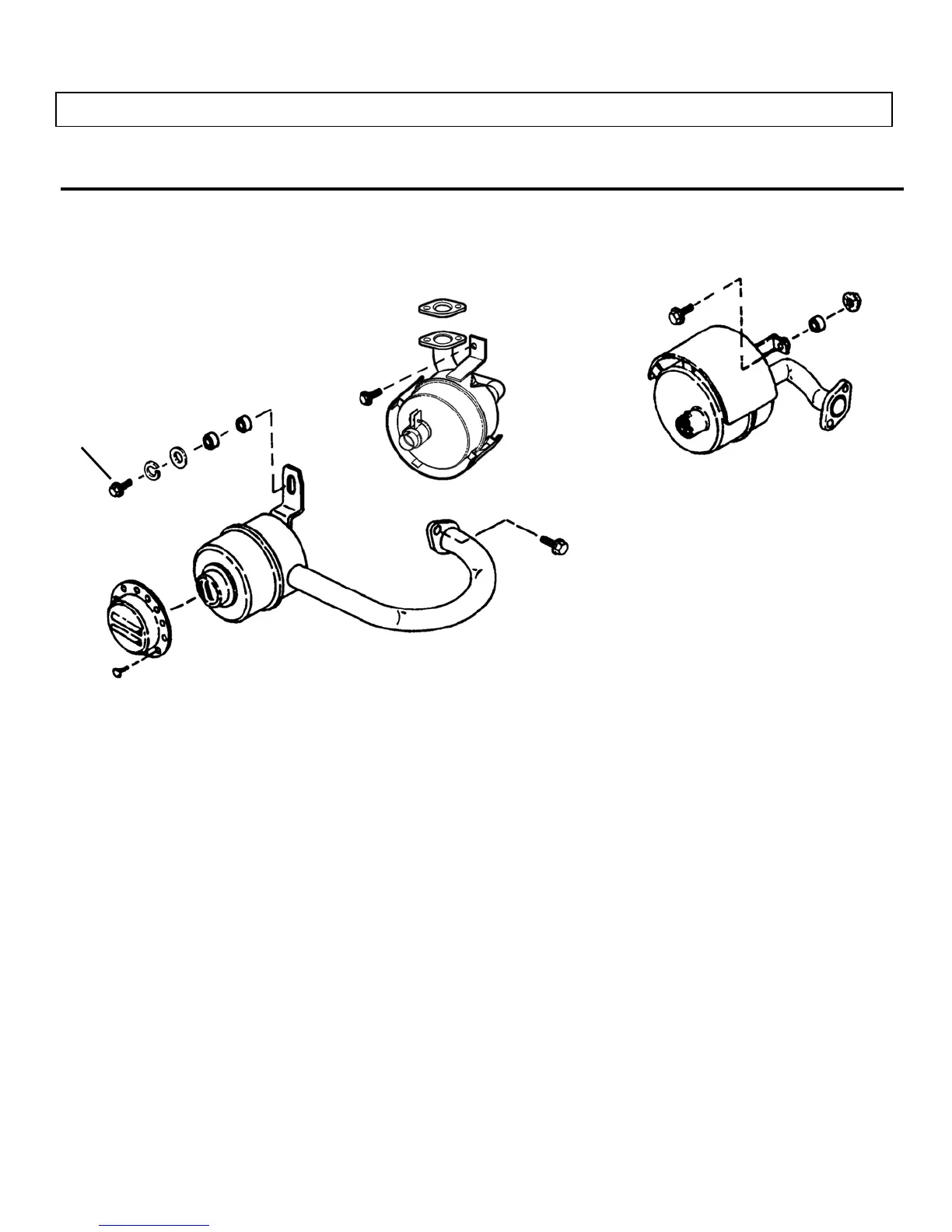

ENGINES & EXHAUST MUFFLER
9.0 RECOIL BRIGGS & STRATTON 28B702 1154-E1
14.5 ELECTRIC BRIGGS & STRATTON C.A.R.B. 287707 1235-E1
15.0 ELECTRIC KOHLER CV15ST PS-41580
ITEM PART NO. DESCRIPTION
1 5-1996 MUFFLER (B&S 9-12 HP) (Includes items 8 & 9)
2 9-0206 SCREW, 5/16-18 x 3/4”Hex Head Cap, Grade 2 (2)
3 9-1814 SCREW, 1/4-20x1-1/4” Hex Head Cap
4 1-9358 MUFFLER (Kohler 15 HP)
5 7-4453 MUFFLER (B&S 14 HP)
6 1-3849 SPACER (2)
7 9-1065 NUT, 1/4-20 Hex Flange Lock
8 1-9257 DEFLECTOR, Heat
9 2-3023 SCREW #8-18 x 3/8” Type AB Modified
10 9-0362 SCREW, 1/4-20 x 5/8” Hex Washer Self-Tap
11 9-1495 SCREW, 1/4-20 x 3/4” Hex Head Cap, Grade 5
12 1-5352 GASKET, Muffler
13 9-1294 WASHER, 1/4” Flat
14 9-0052 WASHER, 1/4” Split Lock
MANUAL No. 06128 R. E. RIDER SERIES 22
ENGINE H.P. START TYPE ENGINE MFGR. MFGR. MODEL MFGR. TYPE
3
12
4
2
9
8
1
10
7
6
11
6
14
13
5
