Snapper 301022BE User Manual

9

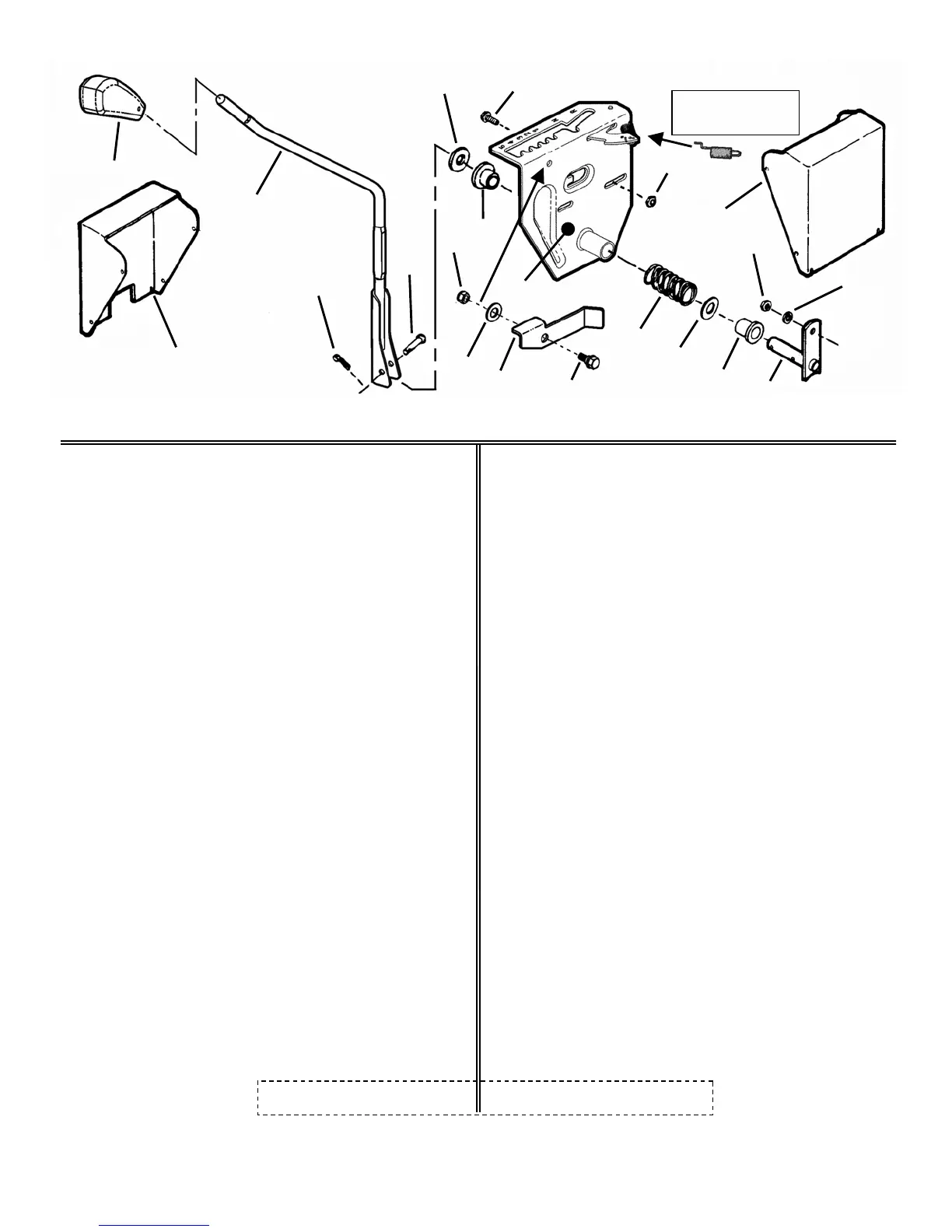

MAIN CASE
ITEM PART NO. DESCRIPTION
1 5-8044 WELDMENT, Main Case
-- 5-9202* WELDMENT, Main Case
2A 3-0798 BUMPER, Rear (2)
2B 3-6367 BUMPER (1-piece) (33” Deck)
3 3-7285 FENDER, Left Hand
4A 3-6419* GUIDE, Belt
4B 1-7653 GUIDE, Belt (not shown)
4C 3-6418** GUIDE, Belt
5 4-7189 BRACKET, Drive Support
6 9-0595 BOLT, 5/16-18 X 3/4" Hex
Flange Lock, Grade 5 (2)
7 1-0153 CAP, Bumper (2)
8 9-0585 NUT, 5/16-18 Hex Fl. Lock (6)
9 1-0969 NUT, 5/16-24 Hex Flange Lock
10 2-3676 LINK, Shift (Long)
11 4-1384 ARM, Shift
12 3-3799 BRACE, Cross
13 1-1018 LINK, Shift (Short)
14 9-0196 NUT, 5/16-18 Hex, Gr. 5 or B
15 4-0598 ARM, Shift Handle (weldment)
16 1-0754 SPRING, Shift Handle
17 5-8763 ASSEMBLY, Shift Detent
(Incl. Spring, part no. 2-6292)
18 5-9212 HANDLE, Shift (weldment)
19 9-1503 HAIRPIN, 3/32 X 1-1/2" (2)
20 2-3656 GRIP, Shift Handle
21 3-4299 WING, Rear (2)
22 2-2509 BUSHING, Pilot
23 7-3735 BRACKET, Switch
24 9-0037 PIN, 3/32 x 3/4" Cotter
25 2-3914 PIN, 1/4 x 1-3/4" Tapered Clevis
26 1-9245 BUSHING, Nylon
27 3-1036 WASHER, Thrust (2)
ITEM PART NO. DESCRIPTION
28 1-9246 BUSHING, Nylon (2)
29 9-0361 SCREW, 5/16-18 x 5/8" Self
Tap (14)
30 9-0981 SCREW, #10-32 x 1/4" Hex
Washer Self-Tap (2)
31 9-1296 WASHER, 5/16" Flat (4)
32 1-2652 CLIP, Wire
33 9-0391 WASHER, 5/16”Internal Tooth
Lock
34 9-0484 SCREW, 5/16-18 x 1-1/2" (4)
35 9-1513 SCREW, 5/16-24 x 1-1/2" Hex
Head Cap, Grade 5 (4)
36 1-1791 RETAINER, 5/16 Bolt (4)
37 9-0206 SCREW, 5/16-18 x 3/4" Cap
38 9-0793 SCREW, 5/16-18 X 3/4" Hex
Self-Tap (4)
39 2-8200 SWIVEL (2)
40 2-8989 COVER, Switch (series 19 & earlier)
-- 7-3268 COVER, Solenoid (series 20 & later)
41 2-8990 COVER, Battery
42 9-1272 FASTENER, 1/4” Ratchet (7)
43 1-5761 BOLT, 5/16-18 Shoulder
44 7-3289 LEVER, Over-Ride
45 9-1595 WASHER, 7/16” Flat
46 9-1298 NUT, 5/16-18 Nyloc
47 2-2486 OIL DRAIN, Short
48 2-7972 ASSEMBLY, Oil Valve
49 7-4190 PLATE, Engine (Kohler engine)
50 9-1315 WASHER, 5/16” Split Lock (8)
51 7-7692 BOLT, M8-1.25 x 25mm, Self-
Tap (Kohler)
52 9-0238 SCREW, 5/16-24 x 1” Gr. 5 (4)
53 9-1297 NUT, 5/16-24 Hex, Grade 5 (8)
R. E. RIDER SERIES 22 MANUAL No. 06128
*331522KVE Model only **3314522BVE Model only
50
29
27
26
25
24
40
18
SPRING (2-6292)
PART OF ITEM 17
20
27
16
43
44
45
46
14
17
53
41
28
15
