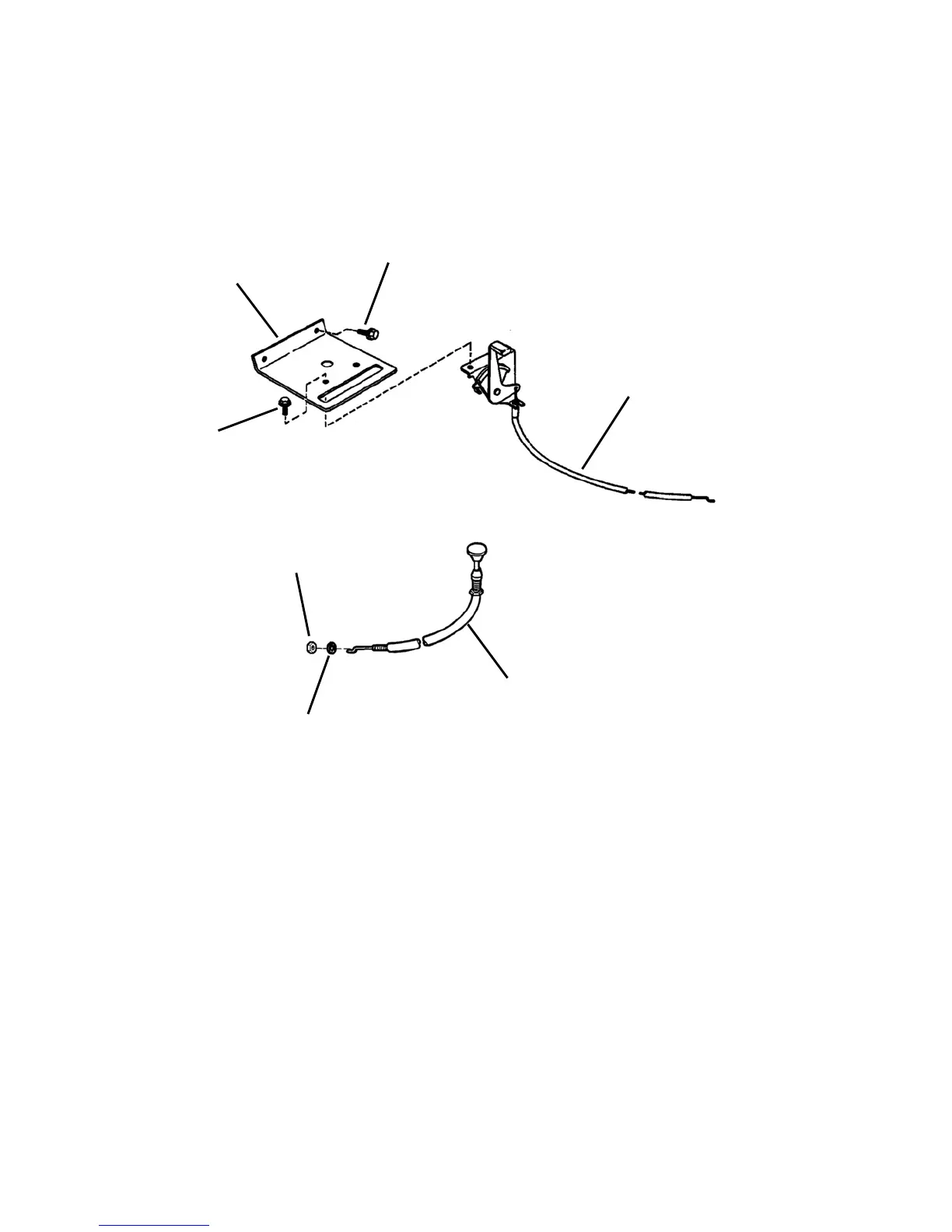

THROTTLE CONTROL
ITEM PART NO. DESCRIPTION
1 7-4321 CONTROL, Throttle (33.6” long) (Briggs Engines)
2 9-0913 SCREW, #10-24 x 1/2" Hex Washer Head, Self-Tap (Torx) (5)
3 3-3470 PLATE, Throttle Control
4 2-4185 CONTROL, Choke
5 9-0539 SCREW, 1/4-20 x 5/8" Self-Tap (2)
6 9-0155 NUT, 3/8-24 Hex
7 9-0390 WASHER, 3/8” Internal Tooth Lock
42” MODEL R. E. RIDER SERIES 22 MANUAL No. 06130
6
5
4
3
2
1
7
