Snapper 421622BVE Parts Manual

7

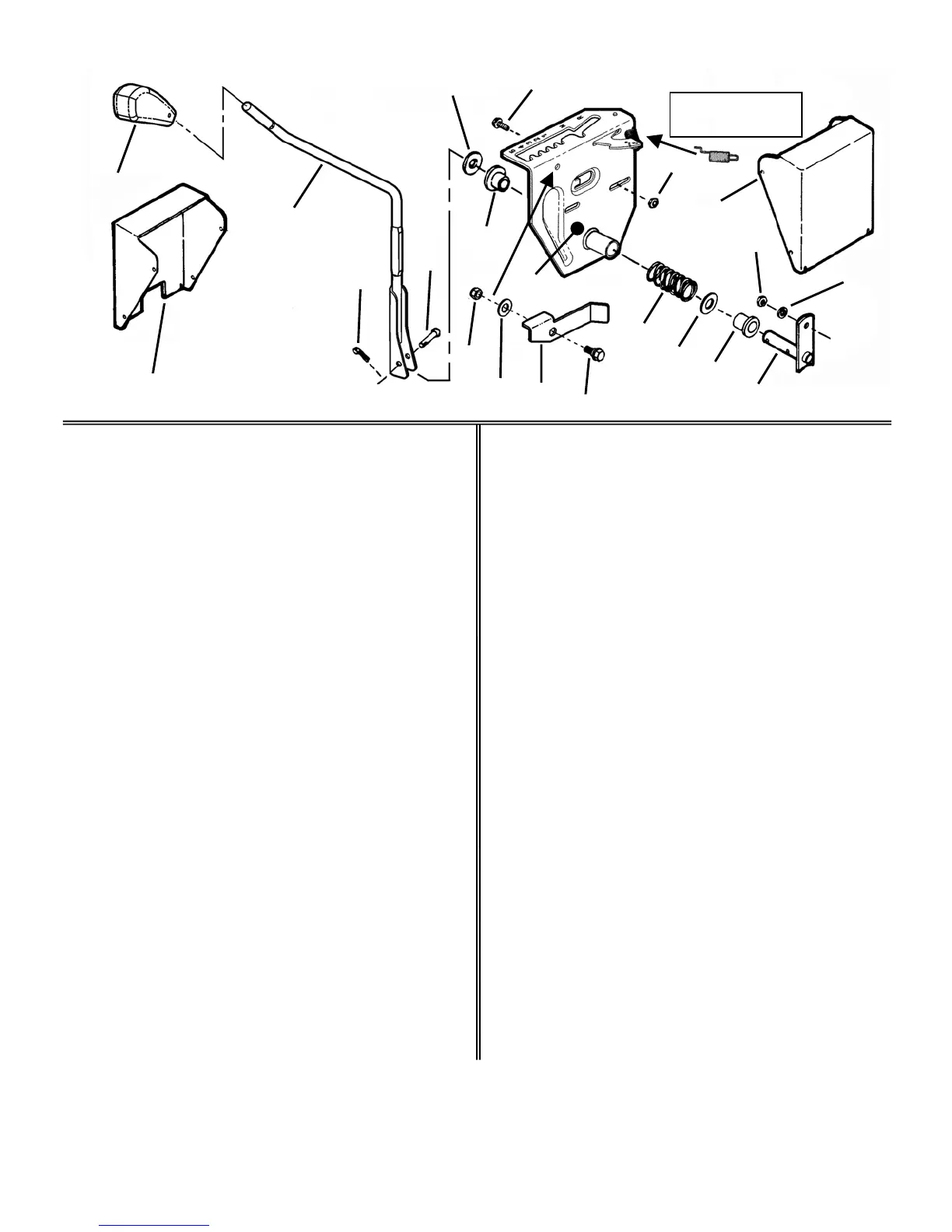

MAIN CASE
ITEM PART NO. DESCRIPTION
1 5-9202 CASE, Main (Weldment)
2 3-3587 BUMPER, Rear (42" Models)
3 3-7285 FENDER, Left Hand (See Page
10 for Related Parts)
4 9-0595 BOLT, 5/16-18 x 3/4” Hex
Flange Lock, Grade 5 (2)
5 2-8990 COVER, Battery
6 7-3268 COVER, Solenoid
7 4-7189 BRACKET, Drive Support
8 9-0585 NUT, 5/16-18 Flange Lock (2)
9 9-0793 SCREW, 5/16-18 x 3/4" Hex
Washer Self-Tap (4)
10 2-3676 LINK, Shift (Long)
11 4-1384 ARM, Shift (Weldment)
12 3-3799 BRACE, Cross
13 1-1018 LINK, Shift (Short)
14 9-0196 NUT, 5/16-18 Hex (2)
15 4-0598 ARM, Shift Handle (Weldment)
16 1-0754 SPRING, Shift Handle
17 5-8763 ASSEMBLY, Shift Detent
(Incl. spring, part no. 2-6292)
18 5-9212 HANDLE, Shift (Weldment)
19 1-5761 BOLT, 5/16-18 Shoulder
20 2-3656 KNOB, Shift Handle
21 7-3289 LEVER, Over-Ride
22 7-4650 BUSHING, Pivot
23 9-0391 WASHER, 5/16” Int. Tooth Lock
24 9-0037 COTTER-PIN, 3/32 x 3/4"
25 2-3914 PIN, 1/4 x 1-3/4" Tapered Clevis
26 1-9245 BUSHING, Nylon
27 3-1036 WASHER, Thrust (2)
28 1-9246 BUSHING, Nylon (2)
ITEM PART NO. DESCRIPTION
29 9-0361 SCREW, 5/16-18 x 5/8" Hex
Washer Self-Tap (10)
30 1-2652 CLIP, Wire
31 3-4299 WING, Rear Deck (2)
32 2-8200 SWIVEL (2)
33 9-1272 FASTENER, Ratchet (7)
34 9-1506 SCREW, 5/16-18 x 1-1/2" Self-
Tapping (4)
35 9-0238 SCREW, 5/16-24 x 1" Hex Head
Cap (4)
36 1-1791 RETAINER, 5/16 Bolt (4)
37 9-0324 SCREW, 3/8-16x1" Self Tap (4)
38 9-1315 WASHER, 5/16" Split Lock (7)
39 9-1297 NUT, 5/16-24 Hex, Grade 5 (7)
40 2-7972 ASSEMBLY, Oil Drain
41 2-8769 GUIDE, Belt (42" Models)
42 1-0969 NUT, 5/16-24 Hex Flange Lock
43 7-4190 PLATE, Engine
44 9-1503 HAIRPIN, 3/32 x 1-1/2” (2)
45 9-1296 WASHER 11/32 I.D.
46 9-1595 WASHER, 7/16” Flat
47 9-1298 NUT, 5/16-18 Nyloc
48 9-0206 SCREW, 5/16-18 x 3/4" Hex
Head Cap (2)
49 9-1513 SCREW, 5/16-24 x 1-3/4” Hex
Head Cap, Grade 5
50 7-3735 BRACKET, Switch
51 9-0981 SCREW, #10-32 x 1/4” Hex
Washer Head, Self-Tap
42” MODEL R. E. RIDER SERIES 22 MANUAL No. 06130
SPRING (2-6292)
PART OF ITEM 17
15
29
25
24
6
18
20
21
46
47
17
26
27
28
27
16
5
19
14
38
39
