Snapper 421622BVE Parts Manual

2

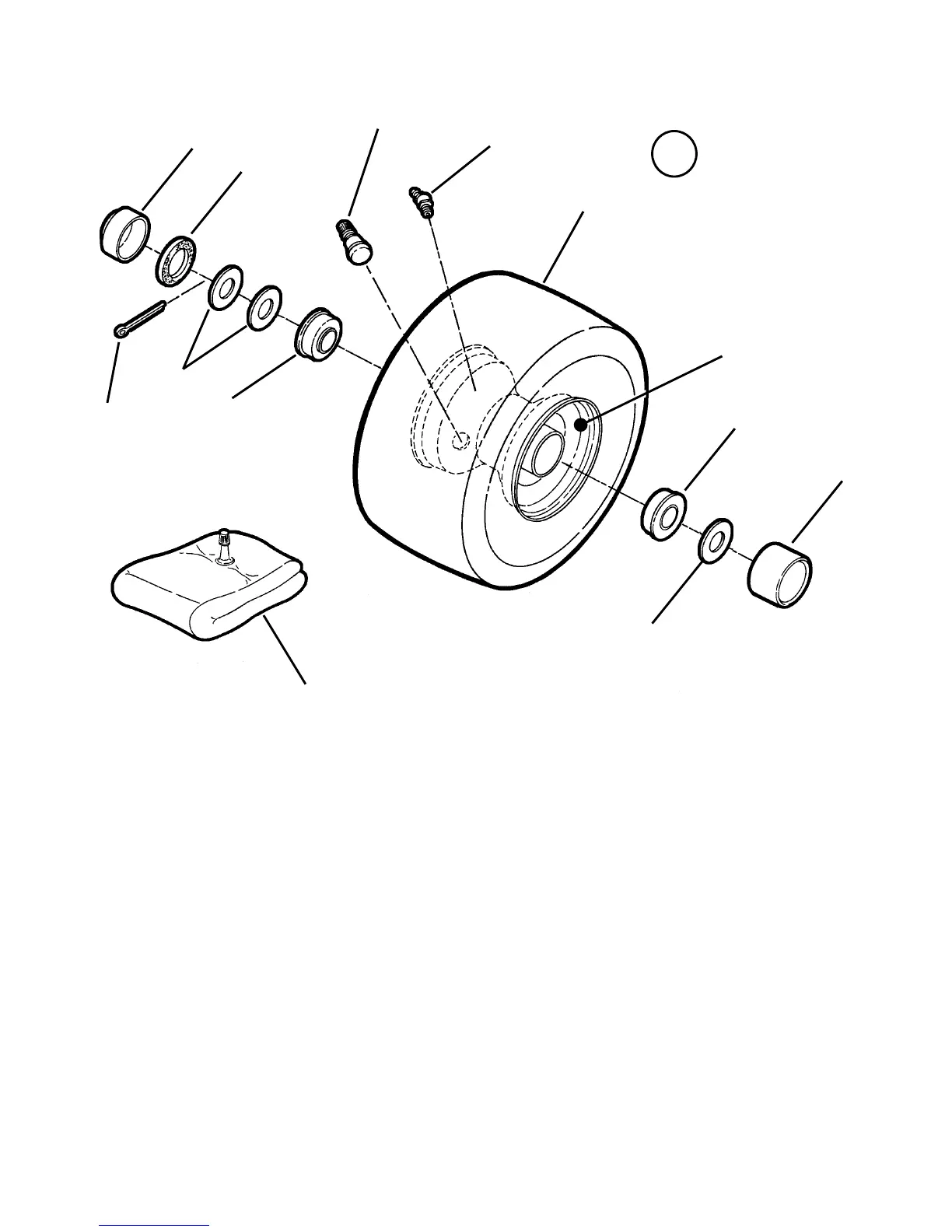

WHEELS - FRONT
ITEM PART NO. DESCRIPTION
1 5-8943 ASSEMBLY, Front Tire & Rim (11.0”) (Includes Items 2 Thru 6)
2 7-3563 TIRE, Pneumatic 11 x 4.00-4 (Kenda)
3 1-7146 RIM (For 11.0 x 4.0 x 4 Tire)
4 1-1807 BEARING, Ball
5 1-2234 VALVE, Air (Snap-In)
6 1-4669 FITTING Lube
7 1-0935 WASHER (3)
8 1-1022 CAP, Hub
9 1-1032 SEAL, Felt
10 3-1038 CAP, Dust
11 9-1516 COTTER-PIN, 5/32 x 1"
12 1-0821 TUBE, Inner (For 4.10/3.50 x 4 Tire)
MANUAL No. 06130 42” MODEL R. E. RIDER SERIES 22
5
6
12
4
7
11
9
10
1 ASSEMBLY
8
7
4
3
2
