3

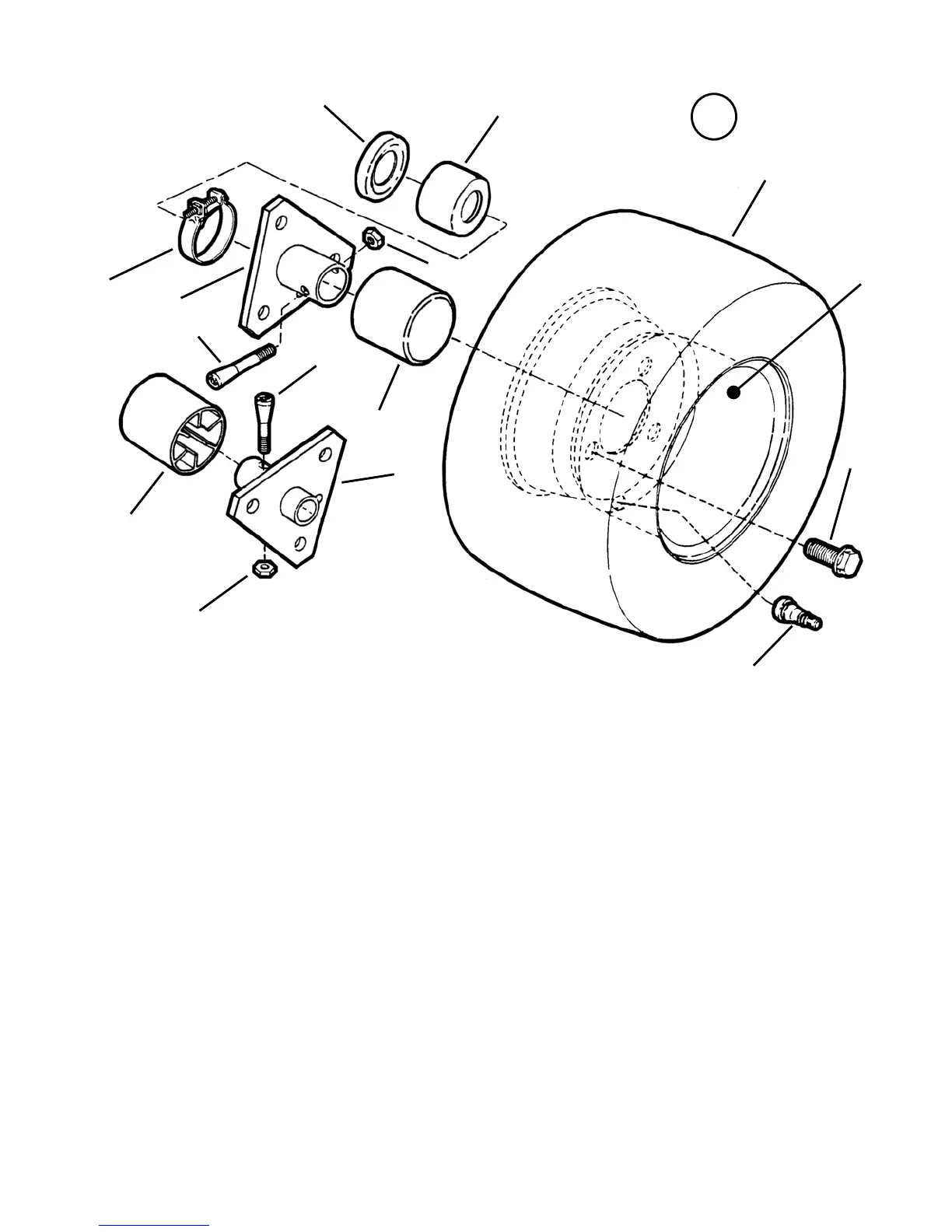

WHEELS - REAR
ITEM PART NO. DESCRIPTION
1 5-8951 ASSEMBLY, Rear Tire & Rim (Includes Items 2, 3, & 4)
2 7-3584 TIRE, 16 x 6.50-8 (Kenda)
3 1-7147 RIM, Ext. Wide, (For 16/7.50 x 8 Tire)
4 1-2234 VALVE, Air (Snap-in)
5 1-2332 CLAMP, Right Hand
6 9-1502 BOLT, 1/2-20 x 3/4" Lug (Grade 5) (6)
7 3-1732 BOOT, Right Hand
8 1-1817 SEAL, Oil
9 4-0433 HUB, Rear Wheel (Right Hand)
10 2-3895 CAP, Hub
11 2-3522 CAP, Hub (Left Hand)
12 4-0434 HUB, Rear Wheel (Left Hand)
13 1-1201 NUT, 5/16-24 Hex Center Lock
14 1-1035 BOLT, 5/16-24 x 1-5/8" Tapered (Left Hand)
15 1-1013 BOLT, 5/16-24 x 2" Tapered (Right Hand)
42” MODEL R. E. RIDER SERIES 22 MANUAL No. 06130
1 ASSEMBLY
13
12
14
11
15
9
5
13
7
8
4
6
3
2
10
