Snapper 922EXD - Features and Controls; Snowthrower and Engine Controls; Control Symbols and Meanings

Not for
Reproduction
8

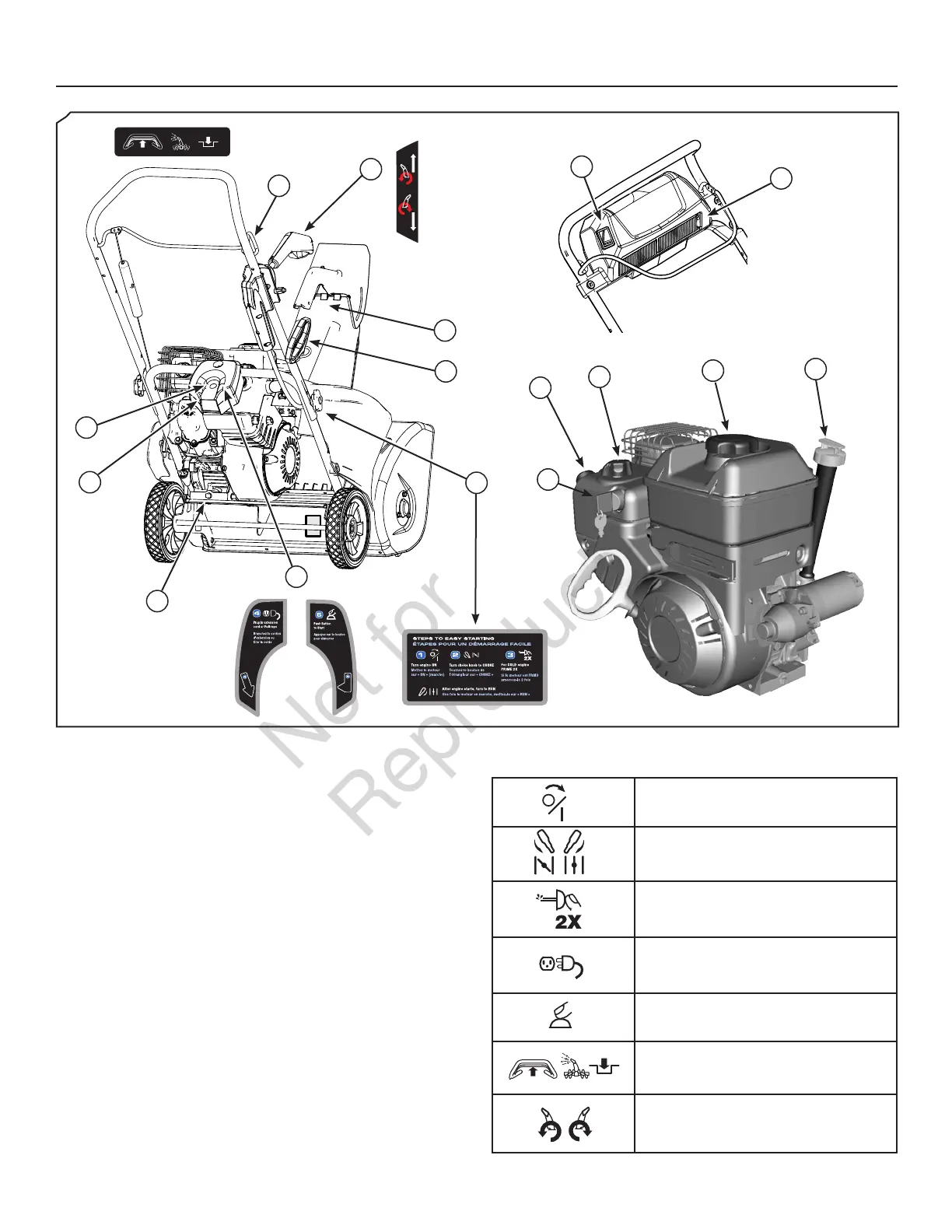

Features and Controls
Snowthrower and Engine Controls
A — Auger Control
B
— Chute Control - Switch Mount (if equipped)
Chute Control - Handle Mount (if equipped)
C
— Deector Control - Trigger
D
— Starter Button
E
— Starter Receptacle
F
— Starting Instructions Decal (if equipped)
G
— Starting Instructions Decal (if equipped)
H
— Headlight (if equipped)
I
— Choke Control
J — Fuel Tank and Cap
K — Oil Fill/Dipstick
L
— Primer Button
M — ON/OFF or Push/Pull Key
N — Starter Cord Handle
O — Oil Drain Plug
Control Symbols and Meanings
On / O switch
Choke closed; choke open
Push primer 2 times
Plug in extension cord
Press button to start
Engage auger control
Rotate chute control
E
D
L
J
I
K
M
O
C
1739977
G
F
B
A
N
H
B
