Snapper G Series User Manual

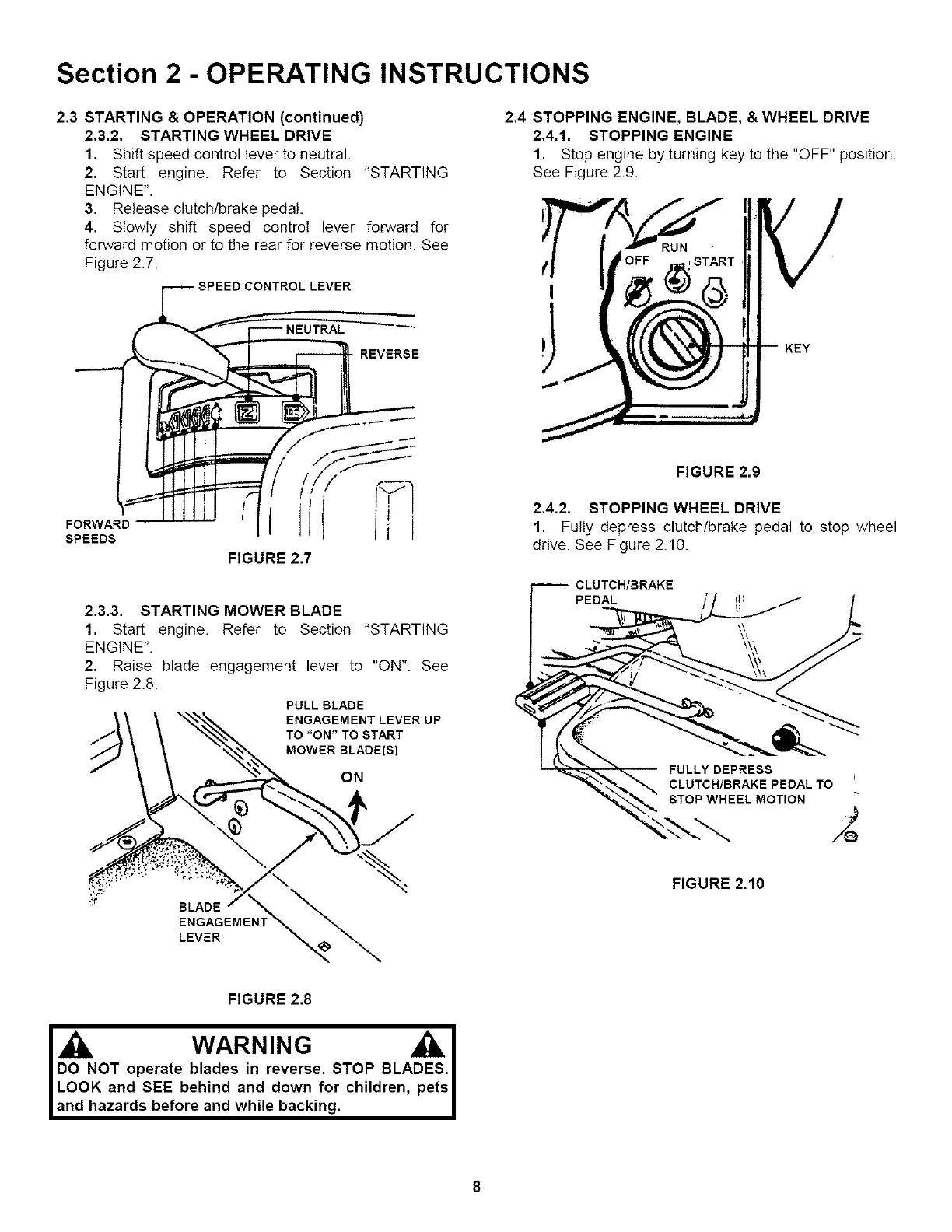

Section 2 - OPERATING INSTRUCTIONS
2,3 STARTING & OPERATION (continued)
2,3.2, STARTING WHEEL DRIVE
1. Shift speed control lever to neutral.
2, Start engine. Refer to Section "STARTING
ENGINE".
3. Release clutch/brake pedal.
4. Slowly shift speed control lever forward for
forward motion or to the rear for reverse motion. See
Figure 2.7.
SPEED CONTROL LEVER
FIGURE 2,7
2,3.3. STARTING MOWER BLADE
1. Start engine. Refer to Section "STARTING
ENGINE".
2, Raise blade engagement lever to "ON". See
Figure 2.8.
PULL BLADE
ENGAGEMENT LEVER UP
.,..i TO "ON" TO START
MOWER BLADE(S)
ON
BLADE
LEVER
\
2,4 STOPPING ENGINE, BLADE, & WHEEL DRIVE
2,4.1. STOPPING ENGINE
1. Stop engine by turning key to the "OFF" position.
See Figure 2.9.
KEY
FIGURE 2.9
2,4.2. STOPPING WHEEL DRIVE
1. Fully depress clutch/brake pedal to stop wheel
drive. See Figure 2.10.
CLUTCH/BRAKE
PEDAL .7"
FULLY DEPRESS
CLUTCH/BRAKE PEDAL TO
STOP WHEEL MOTION
FIGURE 2.10
FIGURE 2,8
WARNING
DO NOT operate blades in reverse. STOP BLADES. I
LOOK and SEE behind and down for children, pets I
and hazards before and while backing. I
8
