Snapper L1226E User Manual

12
Assembly
CONNECT SHIFT ROD
Connect shift rod (A, Figure 7) to shift lever (B) and 1.
secure with lock washer (C) and 5/16 lock nut (D).
Tighten lock nut with a 1/2” wrench while preventing
stud (E) from turning with a 7/16” wrench.
ASSEMBLE CHUTE AND ROTATOR
Bring chute from pallet to the left side of snowthrow-1.
er.
Slide the chute base (A, Figure 8) onto the auger 2.
housing (B).
Slide support tube (C) on the carriage bolts (D).3.
Thread two 3/8” flange nuts (A, Figure 9) onto car-4.
riage bolts and tighten with a 9/16” wrench.
ASSEMBLE SPLIT ROD
Take end of split rod (A, Figure 10) that is attached to 1.
top back side of chute assembly and align it to right
side of split rod protruding from dash.
Insert two small carriage bolts (B) into square holes 2.
of split rod.
Install 1/4” lock nuts (C) and tighten hardware with a 3.
7/16” wrench.

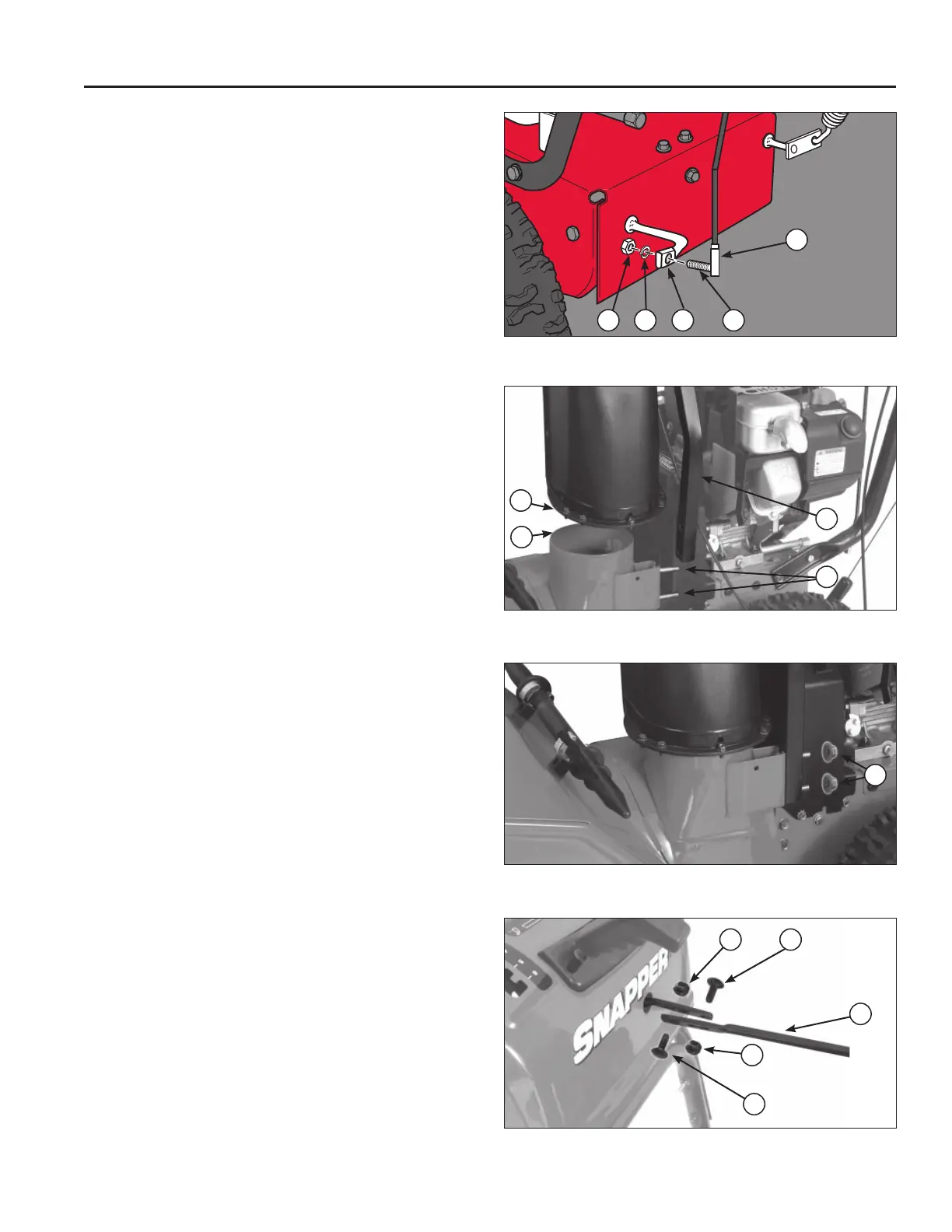

Connect Shift Rod Figure 7
A
BCD E
Chute and Rotator Assembly Figure 8
A
B
C
D
Carriage Bolts Figure 9
A
Split Rod Assembly Figure 10
A
BC
B
C
