13
FOOTREST ASSEMBLY
ITEM PART NO. DESCRIPTION
1A 4-6727 BRACKET, Floor Pan

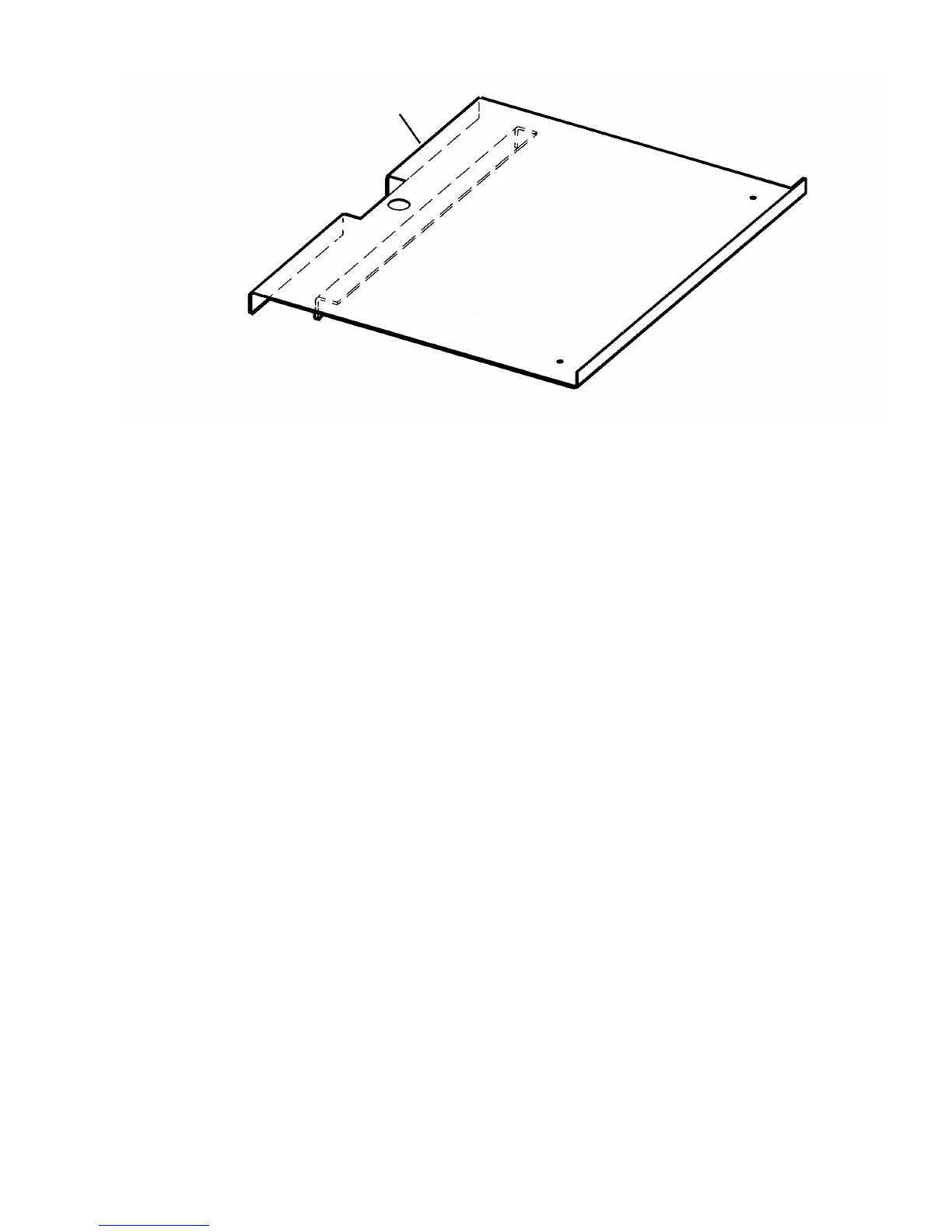

1B 5-8362 WELDMENT, Floor Pan (Model ZMT2500KH only!)
2 4-3843 PAD Left Hand Friction
3 9-1318 SCREW, 5/16-18 x 3/4” Hex Head Cap
4 9-1296 WASHER, 11/32” Flat Lock
5 4-3795 BRACKET, Left Hand Footrest
6 9-1298 NUT, 5/16-18 Hex Nylon Insert (2)
7 4-3800 BRACE, Left Hand Footrest
8 4-6730 BRACKET, Footrest
9 4-4867 PAD, Floor Pan Trim (2)
10 9-1508 BOLT, 5/16-18 x 3/4” Carriage Short Neck Grade 5
11 4-4905 PAD, Right Hand Front Friction
12 9-1541 SCREW, 5/16-18 x 3/4” Hex Self Tapping (6)
13 4-3842 PAD, Right Hand Rear Friction
14 4-3794 BRACKET, Footrest (Right Hand)
MID MOUNT Z-RIDER MANUAL No. 06110
1B
To Next Page
