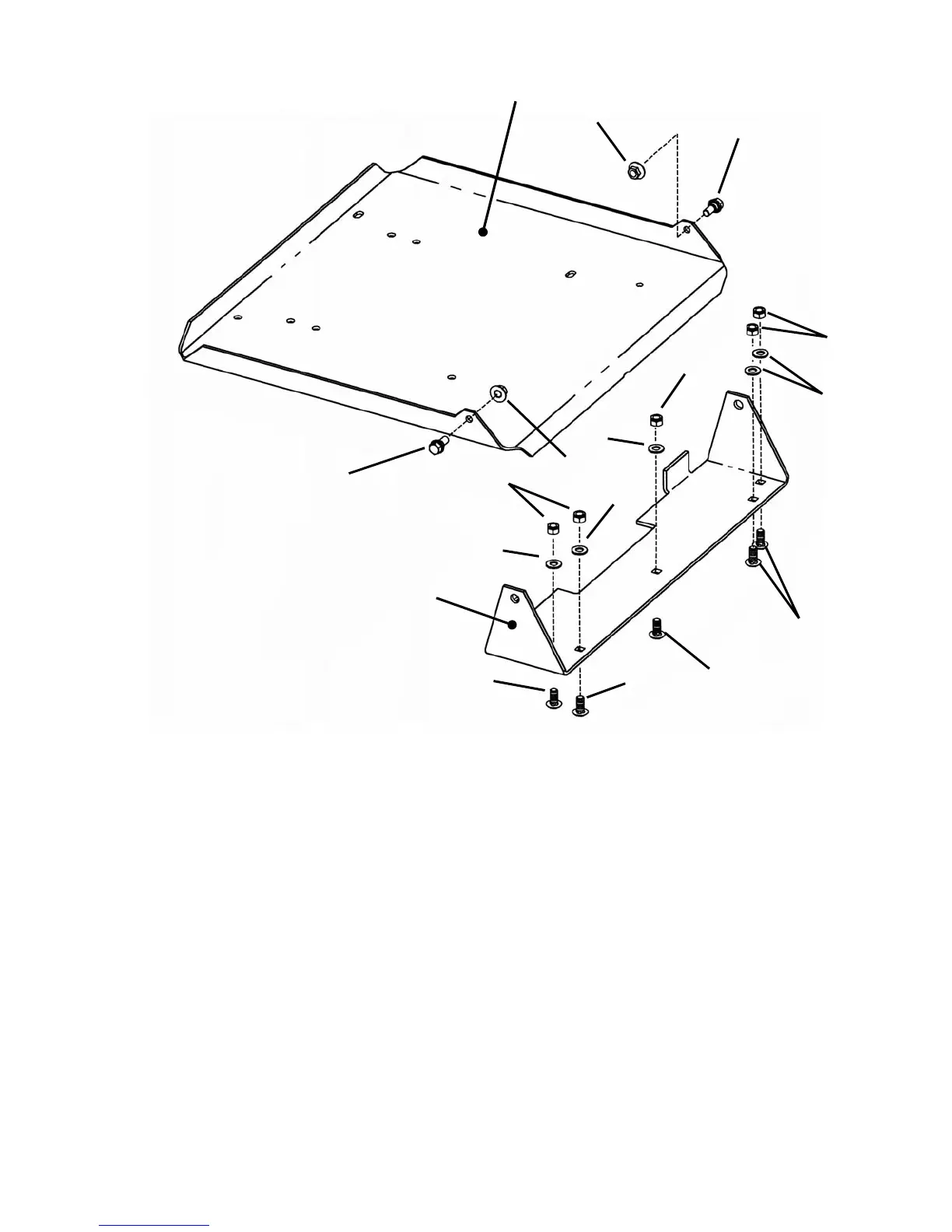

SEAT SUPPORT ASSEMBLY
ITEM PART NO. DESCRIPTION
1 1-5761 BOLT, 5/16-18 x 3/4” Shoulder (2)
2 2-3354 SWITCH, Seat (Normally Closed)
3 9-0951 NUT, 5/16-18 Hex Flange Lock (2)
4 3-6492 SPRING (2)
-- 9-2007 SPRING (Models MZM2200KH, MZM2300K & ZMT2500KH Only)
5 2-2793 BUSHING, Molded Seat, 1/2 I.D. x 5/8” O.D. (2)
6 2-2794 SPACER, 5/16 I.D. x 1-3/8” Long (2)
7 2-3606 CAP, Vinyl (2)
8 3-3362 HOLDER, Seat Switch
9 3-5827 PLATE, Seat Support
9A 4-6960 PLATE, Seat Support (Models MZM2200K & MZM2300K Only)
9B 7-2015 PLATE, Seat Support (Model ZMT2500KH Only)
10 7-2210 HINGE, Seat Support
10A 7-2034 BRACKET, Seat Hinge (Model ZMT2500KH Only)
11 3-5839 BRACKET, Upper Seat Support Hinge (Used on all but ZMT2500KH)
12 9-1046 SCREW, 5/16-18 x 2-1/2” Hex Head Cap, Grade 5 (2)
13 9-1296 WASHER, 5/16 x 11/16 O.D. Flat (10)
14 9-1298 NUT, 5/16-18 Hex Nyloc (12)
15 9-1508 BOLT, 5/16-18 x 3/4 Carriage Grade 5 (6)
16 1-1791 RETAINER, 5/16” Bolt (5)
MID MOUNT Z-RIDER MANUAL No. 06110
14
14
16
16
16
16
10A
15
15
15
15
3
1
1
9B
14
3
