Snapper MZM2301KH, ZM5202M, MZM5203M, ZM6102M Parts Manual

41
61” DECK, IDLERS, ROLLERS
ITEM PART NO. DESCRIPTION
1 9-1899 SCREW, 3/8-24 x 1” Cap, Gr. 5
2 9-1331 WASHER, 13/32” Flat (2)
3 9-1802 SET-SCREW, 5/16” x 5/8”
Socket Head (2)
4 7-4466 PULLEY, 5.25 Cast
5 3-5668 SPACER
6 9-1299 NUT, 3/8-16 Hex Nyloc (17)
7 9-1305 SCREW, 3/8-16 x 2” (3)
8 9-1300 WASHER, 7/16” Flat (12)
9 3-5789 PULLEY, 5-1/2 Idler (2)
10 3-5858 SPACER, 3/4” Outside Diameter
11 9-1553 SCREW, 3/8-16 x 1-3/4” Hex
Head Cap Gr. 5 (3)
12 9-1304 SCREW, 3/8-16 x 1” Hex Head
Cap (13)
13 3-6449 STAND, Fixed Idler
14 4-3847 WELDMENT, Deck, 61”
15 9-1541 SCREW, 5/16-18 x 3/4” Hex Self
Tapping (3)
16 4-4839 CAP, Caster Shaft (3)
17 2-1960 SPACER, 1” (6)
18 4-4892 BEARING, Radial (6)
19 4-4643 WELDMENT, Gauge Wheel
Bracket
20 2-3747 BUSHING, 1” Machine (3)
21 4-4646 WELDMENT, Gauge Wheel
Caster (3)
22 9-1617 SCREW, 3/8-16 x 6” (3)
23 7-9868 ROLLER, 3-3/4” x 4-13/16”
Nylon (3)
24 7-9882 TUBE, Axle (3)
25 9-1640 BOLT, 3/8-16 x 1” Carriage,
Grade 5 (6)
26 3-6455 GEARBOX, Shim
ITEM PART NO. DESCRIPTION
27 5-8342 GEARBOX, Right Angle
(Peerless Series 1000-52)
28 9-1328 SCREW, 3/8-16 x 1-1/4” Gr. 5(2)
29 1-0008 KEY, #6 Woodruff
30 9-0613 NUT, 3/8-16 Hex Flange
31 3-5667 SPRING, Extension
32 1-3847 RETAINER, 3/8” Bolt
33A 9-1822 SCREW, 1/2-13 x 5” Cap (2)
33B 9-2072 SCREW, 1/2-13 x 7”, Gr. 5 (2)
34 3-6457 FORK, Gauge Wheel (2)
35 3-6456 SPACER, Gauge Wheel (2)
36 2-9264 WHEEL, Gauge (2)
37 9-1325 NUT, 1/2-13 Hex Nylock (2)
38 4-1295 WELDMENT, Idler Pivot
39 2-3556 BUSHING, Caster (2)
40 4-2619 WELDMENT, Idler Arm
41 3-2031 WASHER, 1-1/32” Flat
42 1-2709 RING, 1” External Retaining
43 3-5542 BELT, 61” HB (134-1/2”)
44 7-6998 ZERK, 1/4-28 Self Tapping
45 4-1821 WELDMENT, Gauge Wheel (2)
46 4-4752 SPACER, 3/8” Inside Diameter
47 5-8494 DRIVESHAFT, Telescoping
(Includes items 48-50)
48 1-0211 KEY, #9 Woodruff
49 9-0132 SET SCREW, 3/8-16 x 3/8” Hex
Recess (2)
50 1-2700 FITTING, 1/4-28 Lube

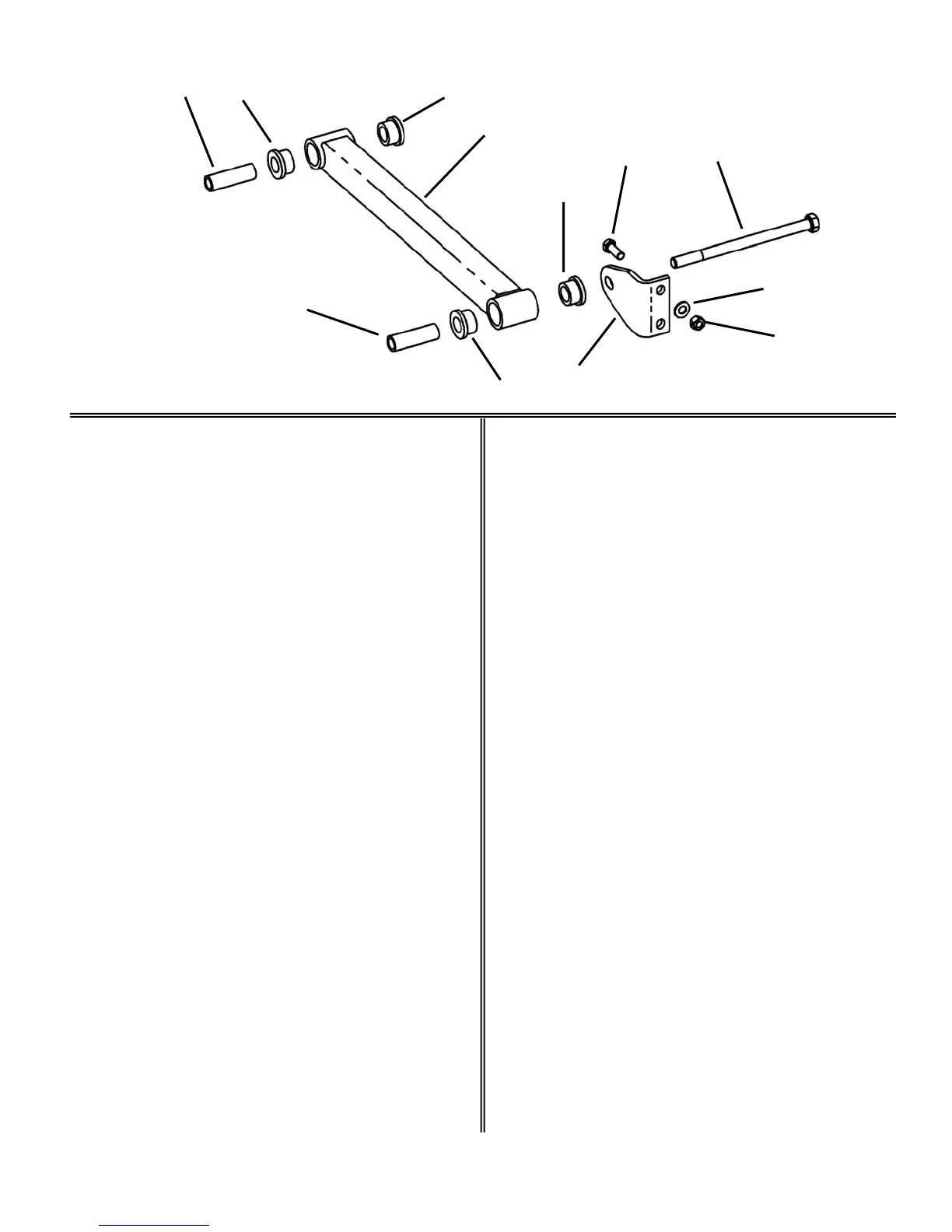

51 7-4155 BRACKET, Deck Stabilizer
52 9-0122 WASHER, 3/8” Flat (4)
53 9-1585 NUT, 3/8-16 Hex Center Lock (8)
54 5-9166 STRUCTURE, 61” Stabilizer
Bar (2)
55 2-9258 BUSHING, Suspension (8)
56 2-9263 SLEEVE, Suspension (4)
MID MOUNT Z-RIDER MANUAL No. 06110
55
53
52
33B
51
56
55
54
56
55
55
12
