3

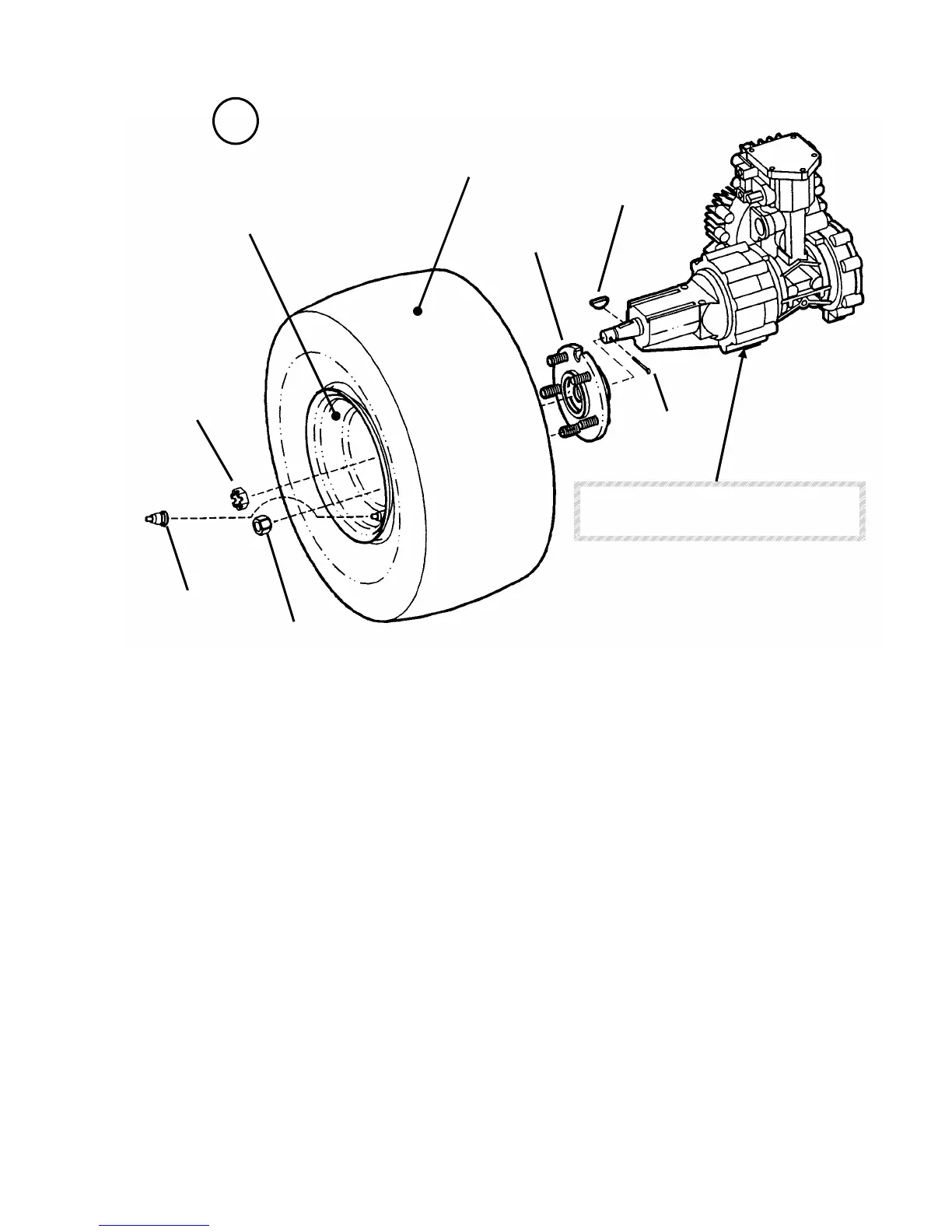

DRIVE TIRE/WHEEL ASSEMBLY
ITEM PART NO. DESCRIPTION
1 5-4526 ASSEMBLY, Rear Tire & Rim (Includes Item 2, 3 & 4)
-- 5-7706 ASSEMBLY, Rear Tire & Rim (Left Hand)
(Model MZM2200KH Only) (Includes Item 2A, 3A & 4)
-- 5-7707 ASSEMBLY, Rear Tire & Rim (Right Hand)
(Model MZM2200KH Only) (Includes Item 2A, 3A & 4)
-- 5-8193 ASSEMBLY, Rear Tire & Rim (Includes Item 2B, 3 & 4)
(Model ZMT2500KH & ZM2501KH)
-- 5-9161 ASSEMBLY, Rear Tire & Rim (Includes Item 2C, 3 & 4)
(Model ZM2502KH)
2 4-4771 TIRE, 23 x 10.5 - 12 NHS
2A 4-4707 TIRE, 21 x 11 - 8 AG (Model MZM2200KH Only)
2B 7-2110 TIRE, 23 x 10.5 – 12 “Turf Mate”
2C 7-4157 TIRE, 23 x 10.5 – 12 “Super Turf”
3 4-4772 RIM, 12” Diameter x 7.00”
3A 4-7032 RIM, 8” Diameter x 6-3/8 (Model MZM2200KH Only)
4 1-2234 VALVE, Air
5 2-7192 NUT, 1/2-20 Lug (5)
6 5-4461 ASSEMBLY, Wheel Hub
7 9-1793 PIN, 9/64 x 1-1/2” Cotter
8 9-1778 KEY, #808 Woodruff
8A 9-1978 KEY, #806 Woodruff
(Model ZMT2500KH, ZM2501KH, ZM2502KH)
9 9-1828 NUT, 3/4-20 Slotted Hex
MID MOUNT Z-RIDER MANUAL No. 06110
1 ASSEMBLY
7
6
8, 8A
5
4
9
3, 3A
2, 2A, 2B
L. H. TRANSAXLE ASSEMBLY
(See Pages 8 thru 11)
