35
DECK DRIVESHAFT ASSEMBLY
(MZM Models)
ITEM PART NO. DESCRIPTION
1 1-2315 KEY, 1/4 x 2” Square
2 1-3324 FITTING, Lube (45 degree, for 3/16” hole)
3 1-4409 BUSHING (2)
4 4-7227 BEARING, 1” I.D. (2)
5 9-0990 BOLT, 3/8-16 x 2” Short Neck Carriage, Grade 2
6 4-2801 DRIVE SHAFT, Deck (1” Diameter, 15 Spline)
7 4-6969 PULLEY, Single V (5.75” O.D., B Section)
8 5-8209 BELT, Deck Drive (AX 36.5” Effective Length)
9 3-5713 SPRING, Torsion
10 3-5816 STUD, Idler (3/8-24 Thread)
11 1-8573 PULLEY, Idler (3.56” O.D.)
12 4-2865 WELDMENT, Hydro Support
13 4-2622 WELDMENT, Idler Arm
14 9-0776 SET SCREW, 1/4-20 x 1/4” Socket Head, Cone Point (4)
15 9-1995 SET SCREW, 5/16-18 x 5/8” Socket Head, Knurled Point
16 9-1298 NUT, 5/16-18 Hex Nyloc (6)
17 9-1299 NUT, 3/8-16 Hex Nyloc (5)
18 9-1303 BOLT, 5/16-18 x 1” Round Head Short Neck, Grade 5 (6)
19 4-7213 SPACER, Idler
20 9-1518 NUT, 3/8-24 Hex Nyloc
21 9-1598 COTTER PIN, 1/8 x 3/4”
22 9-1787 SCREW, 1/4-20 x 5/8” Hex Flange Lock, Grade 5 (16)
23 2-7181 BOLT, 3/8-16 x 1-1/4” Short Neck Carriage, Grade 5 (4)
24 9-1804 WASHER, 9/16” Flat
25 1-4265 ASSEMBLY, Lock Collar, 1” (with 1/4” Set Screw, item 14)
26 4-7226 FLANGE, 1” Bearing (4)
MID MOUNT Z-RIDER MANUAL No. 06110

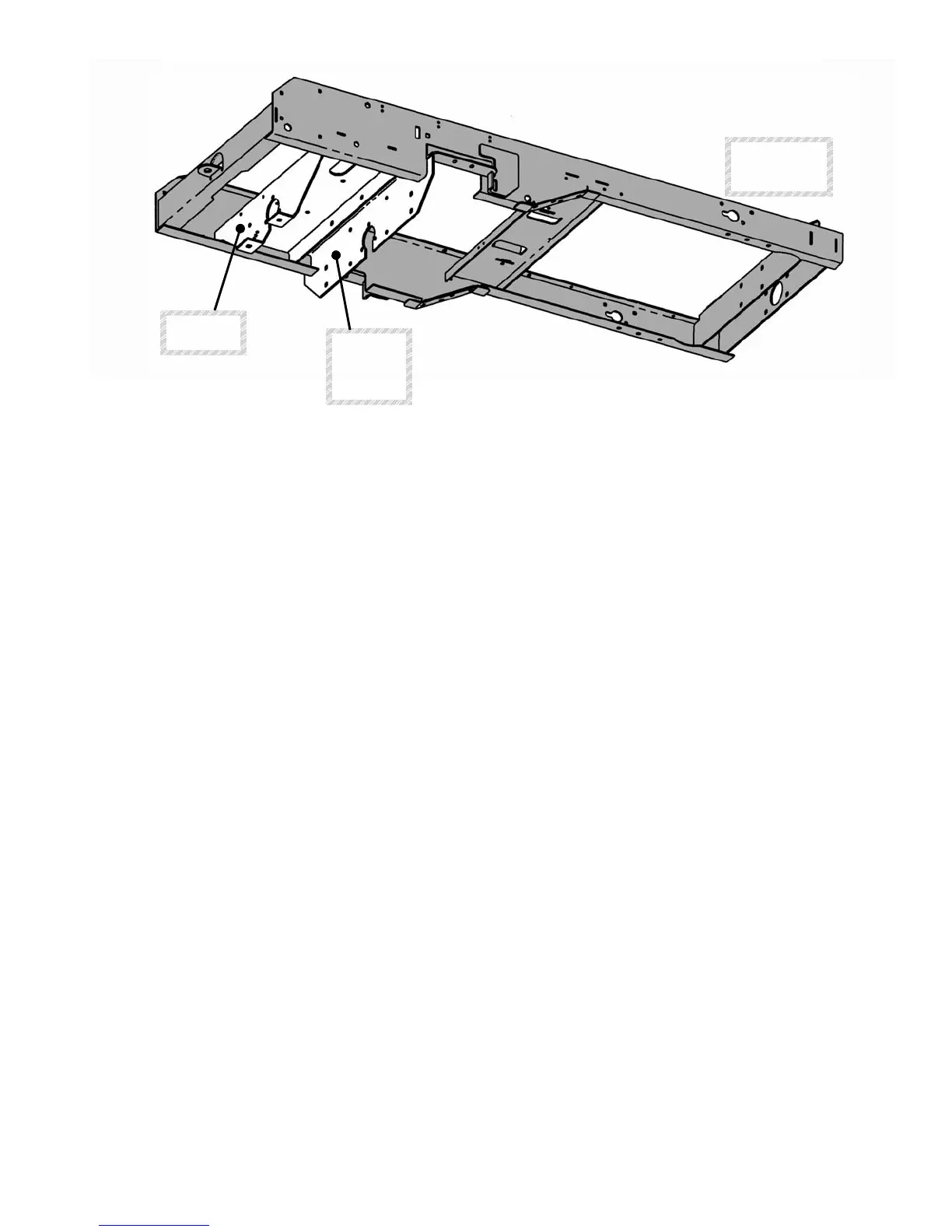

LOWER
FRAME
WELDMENT
LOWER
FRAME
MIDDLE
BRACE
ENGINE
BASE
To Next Page
