S2646/S3246 Hydraulics – 13

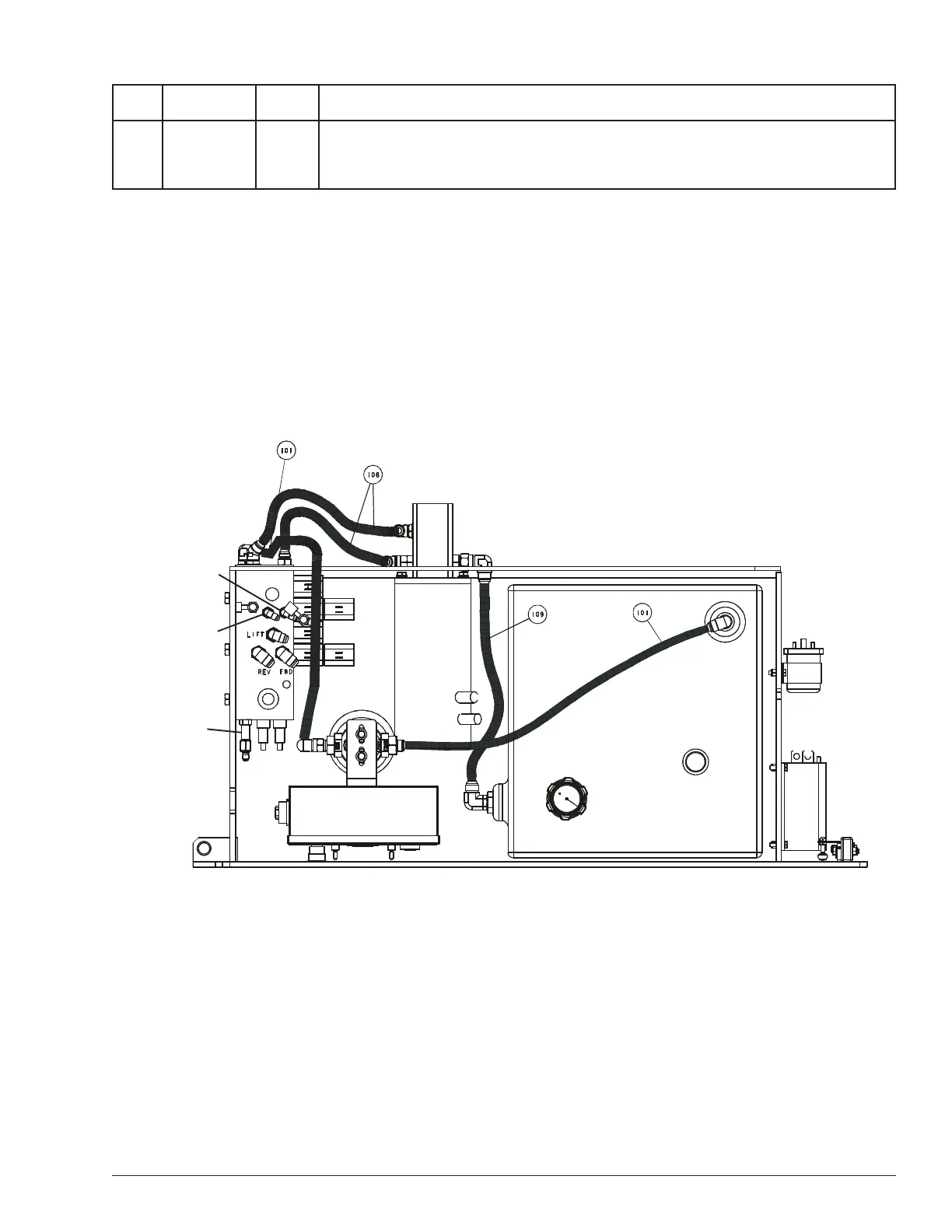

Hydrauic Tray Hoses
0371861 C
Item Part No. Qty. Description
101 0070927 2 HOSE-8-8S-8S 23.5 100R2
108 0151213 2 HOSE-8-8S-8S 16 100R2
109 0082963 1 HOSE-10-10S-10S 14.50 100R2
STEER
LEFT
STEER
RIGHT
BRAKE
