Snorkel S3246 User Manual

S2646/S3246 Electrical – 13

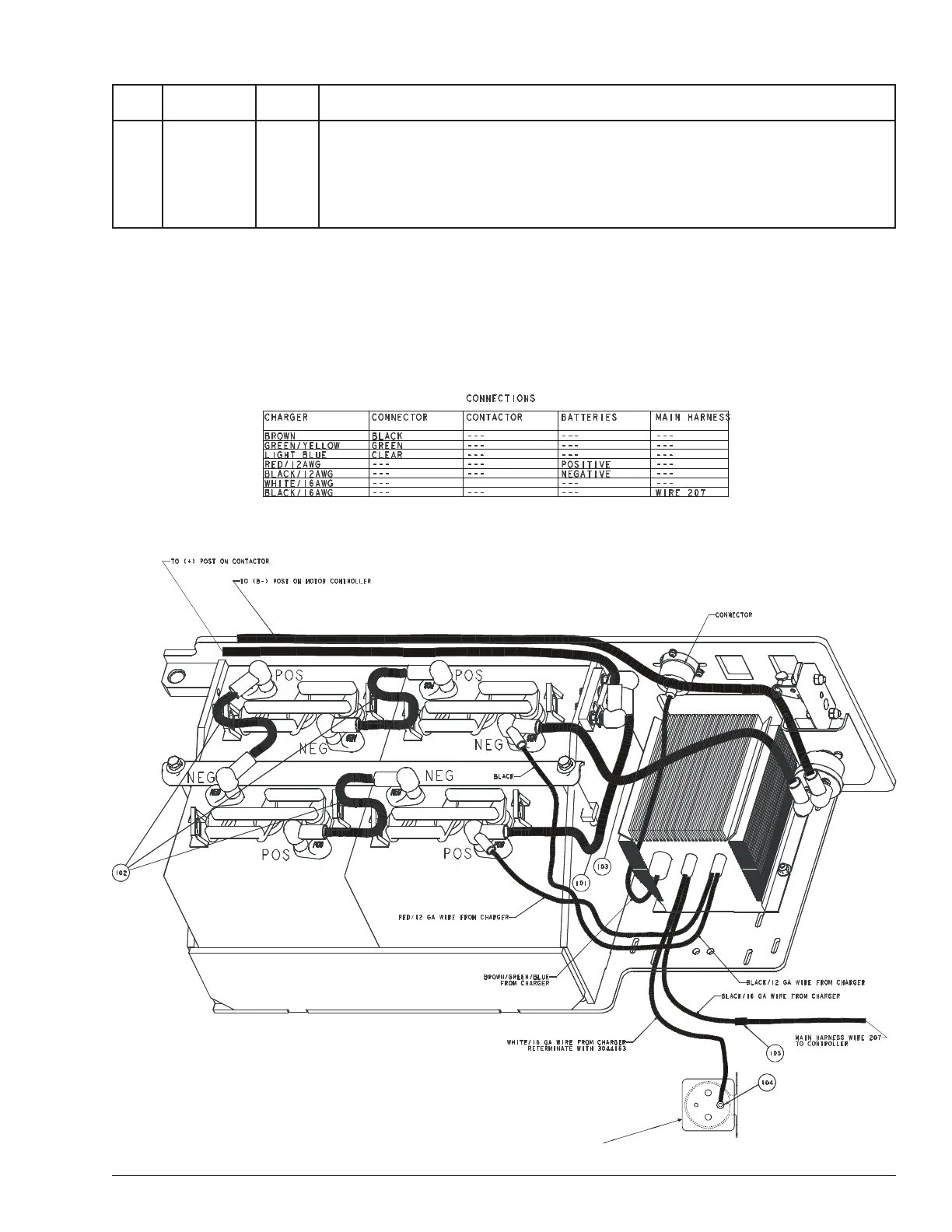

Battery Tray Wiring – after September 2005
0371557 C
Item Part No. Qty. Description
101 0162244 1 WIRE 2 R313 R375 20 RED
102 584926 3 WIRE 2 R375 R375 9 BLK
103 0161404 1 WIRE 2 R313 R375 20 BLK
104 3044163 1 TERM R313I 16/14
105 3044071 1 TERM BUTT CONN INSUL 16/14
CONTACTOR
(
IN HYDRAULIC TRAY
)
INNER POST
