Diagnostic Center Display
The diagnostic center LCD display (refer to Figure 5.4)
is located in the control valve tray on the right side of the
machine.

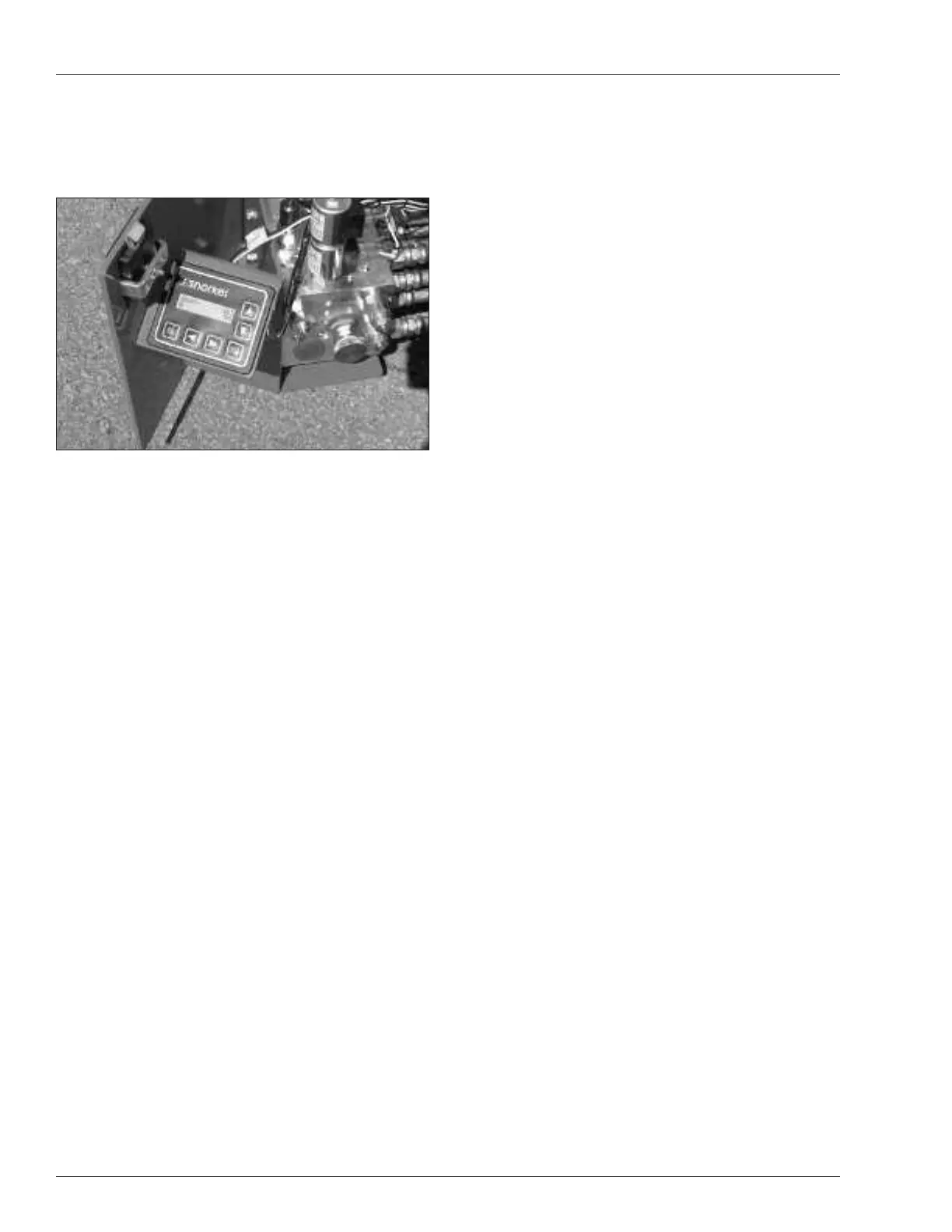

Figure 5.4 – Diagnostic Center LCD Display
When the battery disconnect and emergency stop but-
ton at the lower controls are in the on position, the LCD
display shows:
• The accumulated aerial platform operating time
• The available battery power to operate the machine.
