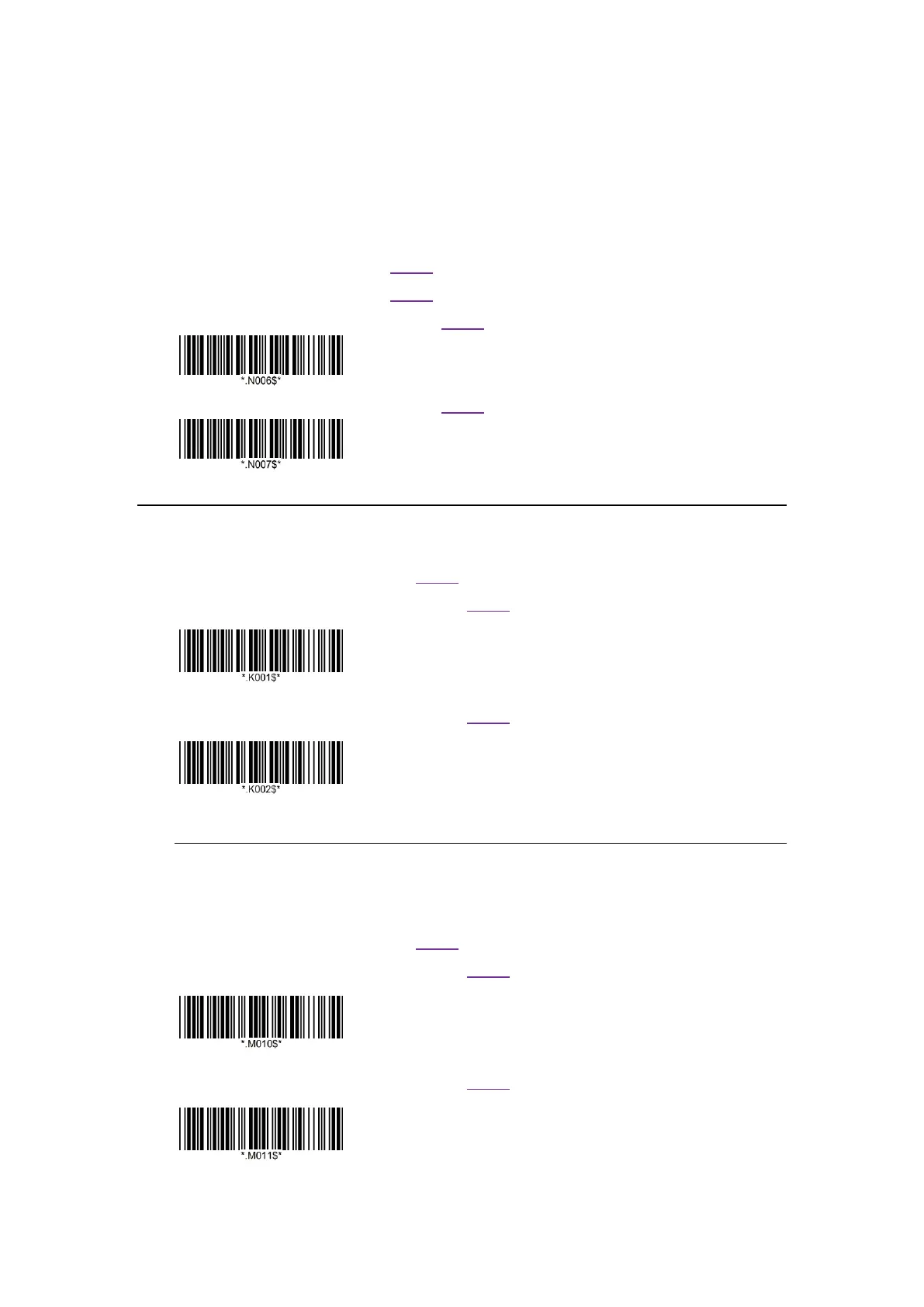

Socket S700 - Discrete 2 of 5 Length and Chinese 2 of 5 Symbology Control; Discrete 2 of 5 Length Configuration; Chinese 2 of 5 Enable;Disable; Matrix 2 of 5 Enable;Disable

Socket User Manual (V 1.2) 2017/11/06
33
 Set Lengths for Discrete 2 of 5 (14h & 15h)
One Discrete Length : Length 1 = value , Length 2 = 0.
Two Discrete Lengths : Length 1 > Length 2.
Length Within Range : Length 2 > Length 1.
Any Length : Length 1 = 0, Length 2 = 0.
R : 00 00 05 C7 04 00 14 S1 S2
R : 00 00 05 C7 04 00 15 S1 S2
W : 00 00 07 C6 04 00 FF 14 0C S1 S2
Length 1
W : 00 00 07 C6 04 00 FF 15 00 S1 S2
Length 2
Chinese 2 of 5
 Enable/Disable Chinese 2 of 5 (F0h 98h)
R : 00 00 06 C7 04 00 F0 98 S1 S2
W : 00 00 08 C6 04 00 FF F0 98 01 S1 S2
Enable Chinese 2 of 5
W : 00 00 08 C6 04 00 FF F0 98 00 S1 S2
*Disable Chinese 2 of 5
(條碼資料長度固定為 11 碼)
Matrix 2 of 5
 Enable/Disable Matrix 2 of 5 (F1h 6Ah)
R : 00 00 06 C7 04 00 F1 6A S1 S2
W : 00 00 08 C6 04 00 FF F1 6A 01 S1 S2
Enable Matrix 2 of 5
W : 00 00 08 C6 04 00 FF F1 6A 00 S1 S2
*Disable Matrix 2 of 5
