Socket S700 - Matrix 2 of 5 Length, Redundancy, and Check Digit Settings; Matrix 2 of 5 Length Configuration; Matrix 2 of 5 Redundancy Control; Matrix 2 of 5 Check Digit Verification

Socket User Manual (V 1.2) 2017/11/06
34

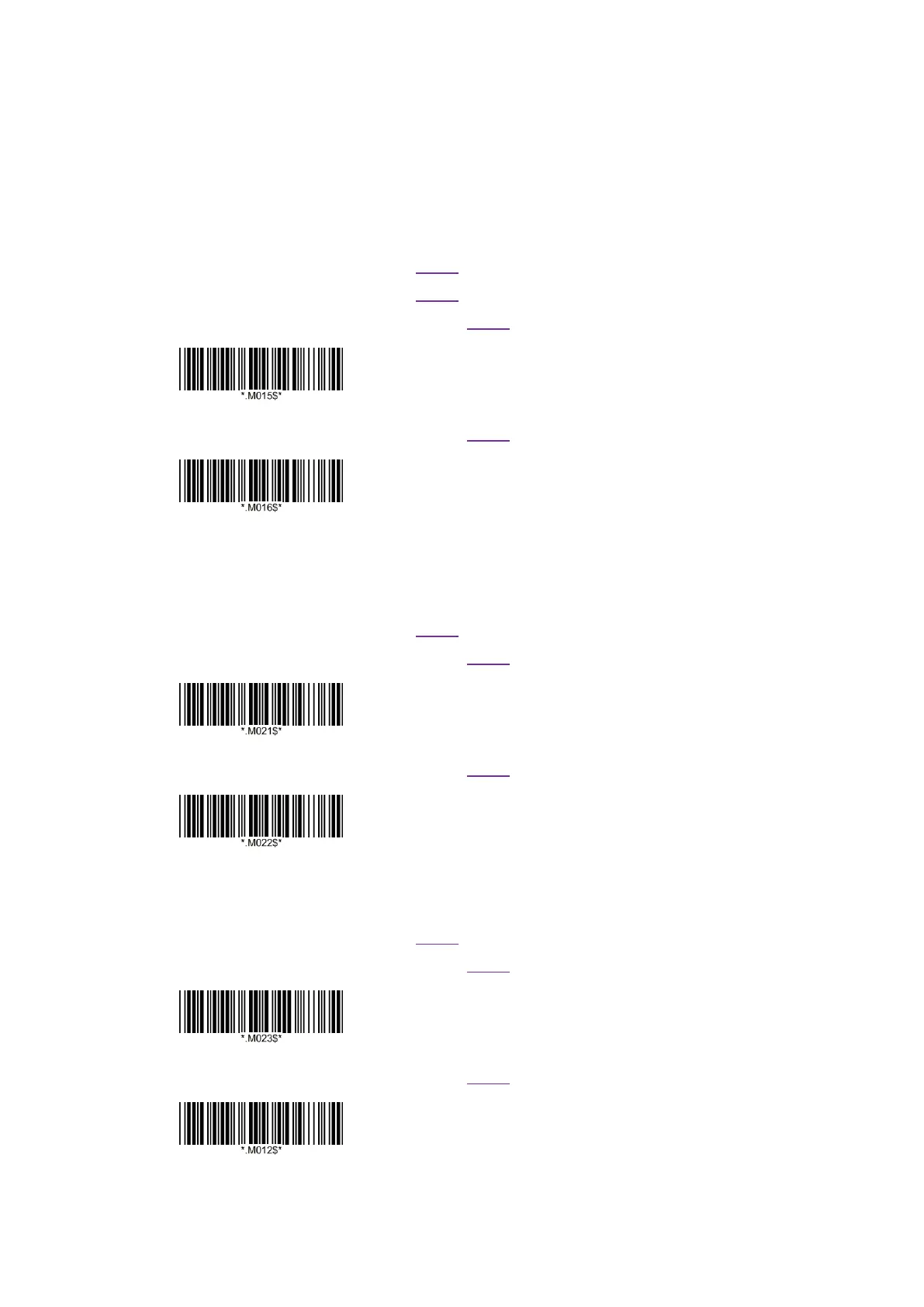

 Set Lengths for Matrix 2 of 5 (F1h 6Bh & F1h 6Ch)
One Discrete Length : Length 1 = value , Length 2 = 0.
Two Discrete Lengths : Length 1 > Length 2.
Length Within Range : Length 2 > Length 1.
Any Length : Length 1 = 0, Length 2 = 0.
R : 00 00 06 C7 04 00 F1 6B S1 S2
R : 00 00 06 C7 04 00 F1 6C S1 S2
W : 00 00 08 C6 04 00 FF F1 6B 0E S1 S2
Length 1
W : 00 00 08 C6 04 00 FF F1 6C 00 S1 S2
Length 2
Triple Setting , input 2 digits , Range : 00~55.
 Matrix 2 of 5 Redundancy (F1h 6Dh)
R : 00 00 06 C7 04 00 F1 6D S1 S2
W : 00 00 08 C6 04 00 FF F1 6D 01 S1 S2
Enable Matrix 2 of 5 Redundancy
W : 00 00 08 C6 04 00 FF F1 6D 00 S1 S2
*Disable Matrix 2 of 5 Redundancy
 Matrix 2 of 5 Check Digit Verification (F1h 6Eh)
R : 00 00 06 C7 04 00 F1 6E S1 S2
W : 00 00 08 C6 04 00 FF F1 6E 01 S1 S2
Enable Matrix 2 of 5 Check Digit
W : 00 00 08 C6 04 00 FF F1 6E 00 S1 S2
*Disable Matrix 2 of 5 Check Digit
