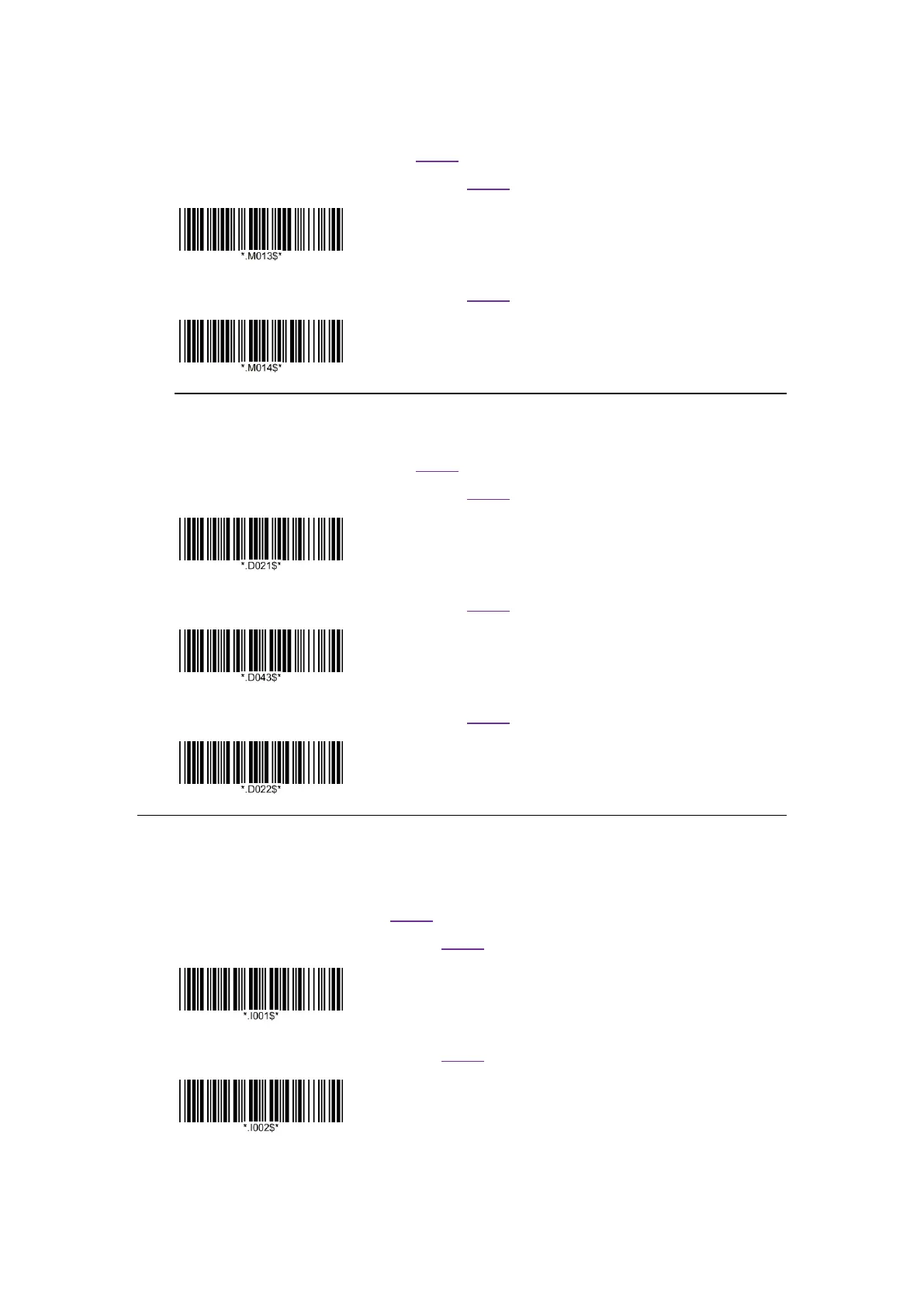

Transmit Matrix 2 of 5 Check Digit (F1h 6Fh)
R : 00 00 06 C7 04 00 F1 6F S1 S2
W : 00 00 08 C6 04 00 FF F1 6F 01 S1 S2
Transmit Matrix 2 of 5 Check Digit
W : 00 00 08 C6 04 00 FF F1 6F 00 S1 S2
*Do Not Transmit Matrix 2 of 5 Check Digit
Inverse 1D (F1h 4Ah)
R : 00 00 06 C7 04 00 F1 4A S1 S2
W : 00 00 08 C6 04 00 FF F1 4A 00 S1 S2
*Regular
W : 00 00 08 C6 04 00 FF F1 4A 01 S1 S2
Inverse Only
W : 00 00 08 C6 04 00 FF F1 4A 02 S1 S2
Inverse Autodetect
Codabar
Enable/Disable Codabar (07h)
R : 00 00 05 C7 04 00 07 S1 S2
W : 00 00 07 C6 04 00 FF 07 01 S1 S2
Enable Codabar
W : 00 00 07 C6 04 00 FF 07 00 S1 S2
*Disable Codabar
