For fence：

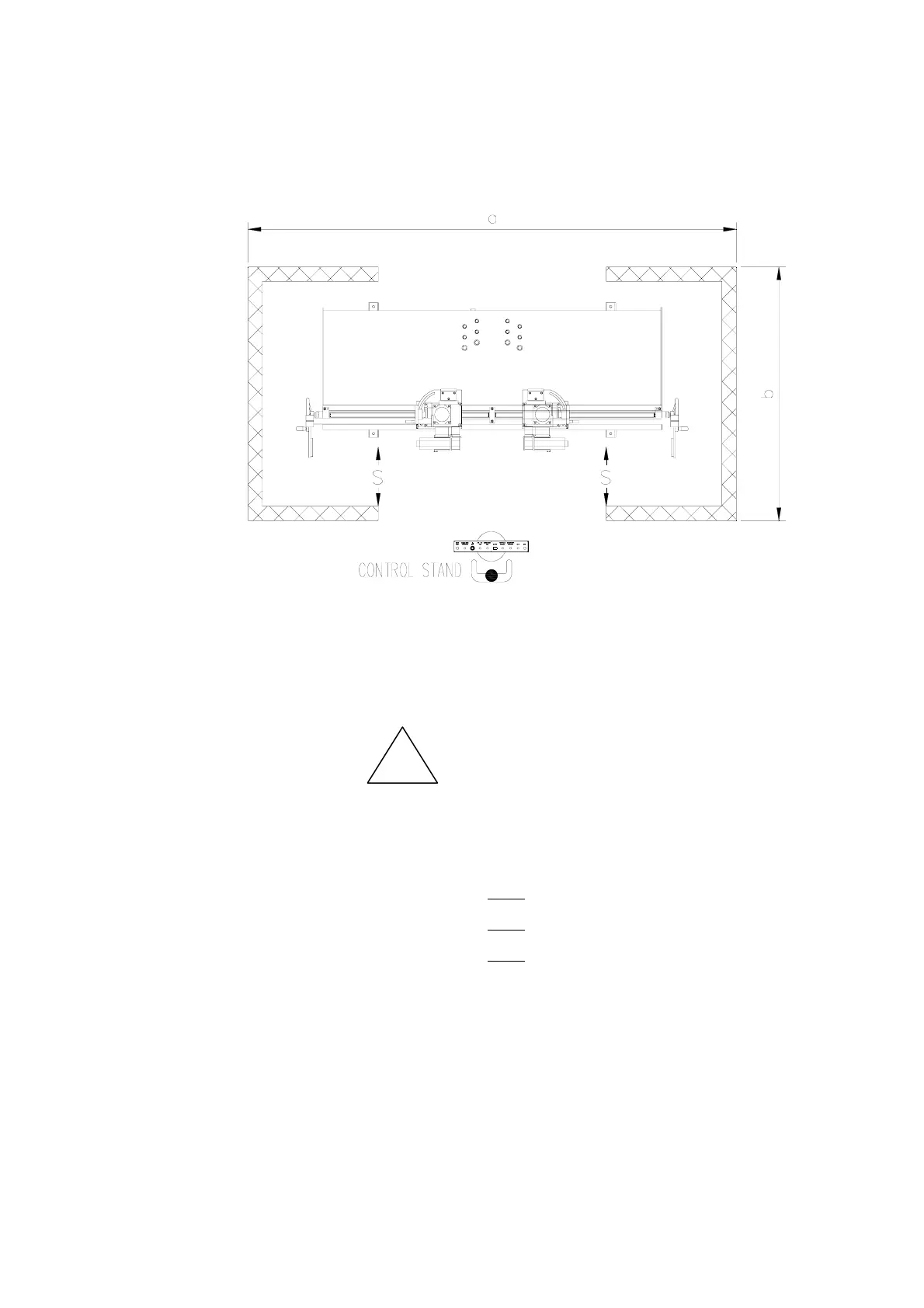

The height of the fence must be greater than 1600mm. So the distance S to
hazardous area by EN 294 is 600mm.
a=5000mm, b=3000mm, s=1000mm
！ Caution
Precautions for installation
z Provide strong wires and shackles which can support the machine sufficiently to hoist
it (Operation shall be carried out by professional operators.)
Gross weight of the machine is approx. 2800Kg.(SB-38X4A-3SV)
Gross weight of the machine is approx. 3500
Kg.(SB-51X4A-3SV)
Gross weight of the machine is approx. 4000
Kg.(SB-63X4A-3SV)
z Machine is secured at various points for transportation. It is necessary to remove
securing hardware after completing the installation.
Level adjustment
z Machine shall be installed precisely at level. Otherwise, the machining accuracy could
be affected by an inclination, twist or vibration on the machine after the installation so
that undesirable effect will be imposed on the entire aspect of machine accuracy.
