-52-
 MONITOR
Below functions are available:
Measurement
mode
Screen
type
Form of measuring results
Monitor
Bar graph
Display specifications like voltage,
harmonics, flicker, swells, dips, voltage
rapid change, interruption, unbalance,
frequency etc. of power quality parameters
Bar graph
Detailed bar graph of harmonics
Trend
Trends of selected data set over time
Events
table
Record events violate limit
5.5 Screen and Function Keys
The Analyzer uses five different screen types to present measuring results in the
most effective way.

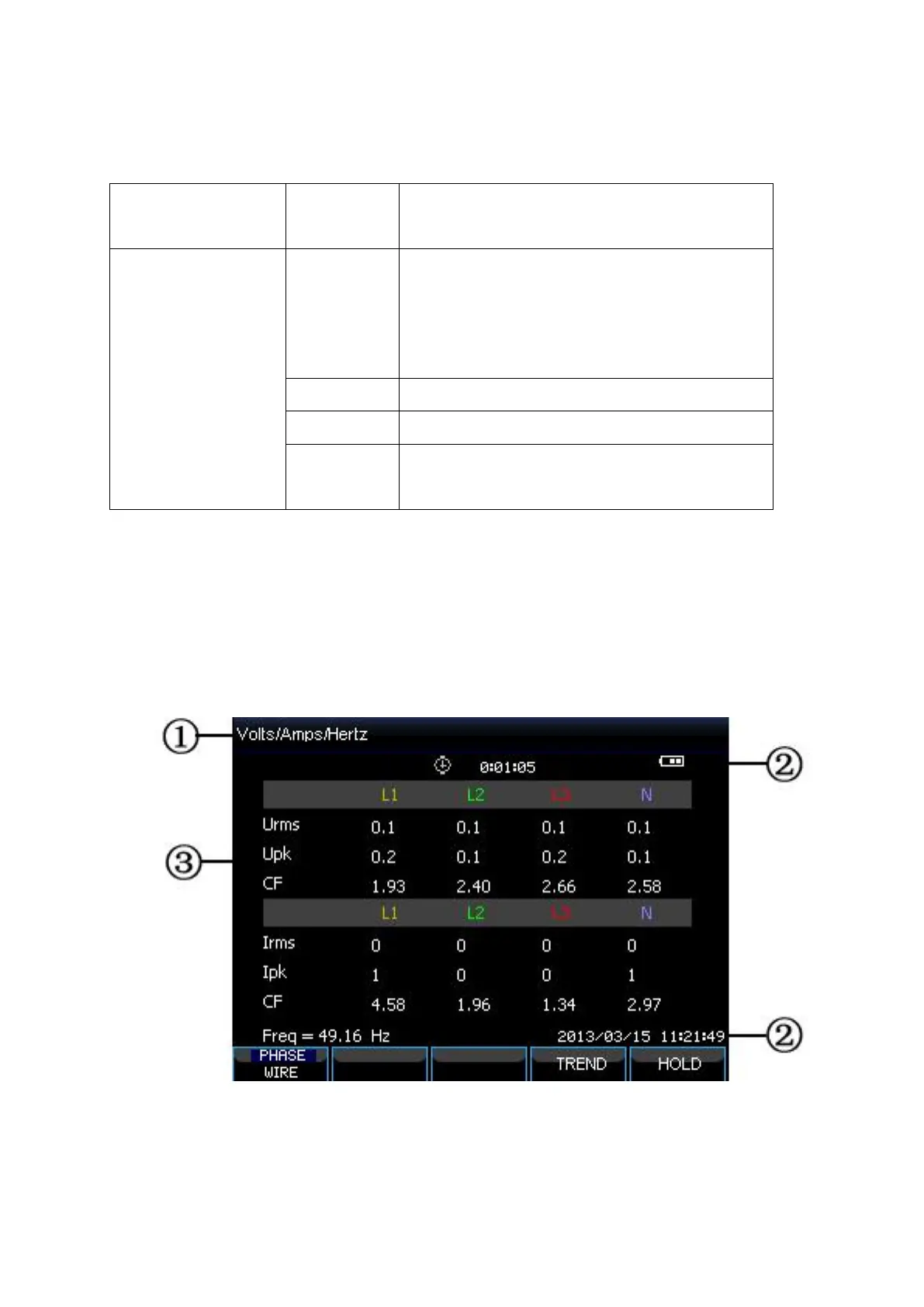

 Table screen
Picture: Table screen
This screen gives an instantaneous overview of important numerical measuring
values. Such as Table screen under VOLTS/AMPS/HERTZ mode.
