socomec 4145 - Voltage Quality Events: Dips and Swells; Dips and Swells Characteristics

-60-
currents A (L1), B (L2) and C (L3) should appear in sequence when observing them
in clockwise direction as shown in below figure:

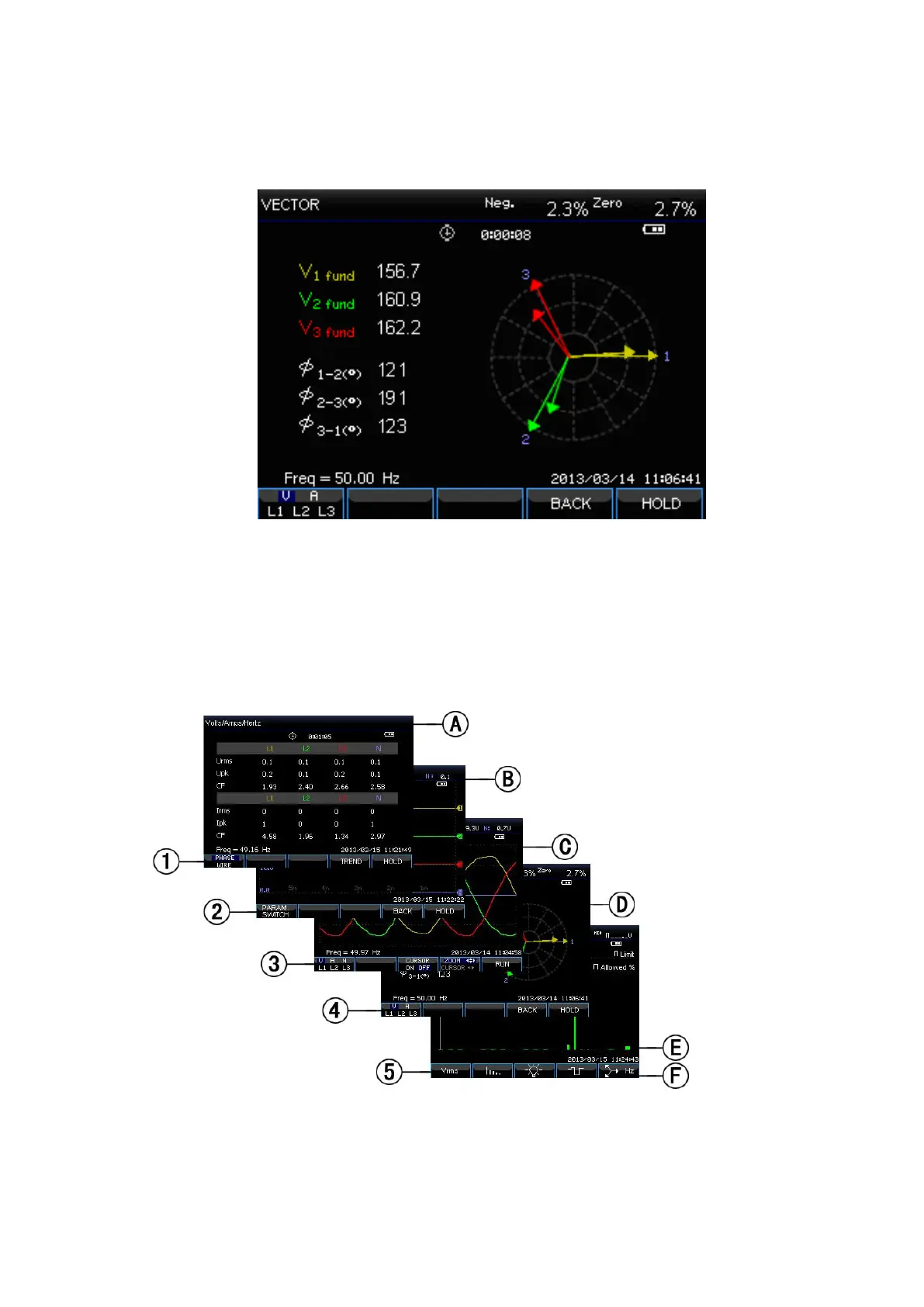

Picture: Vector diagram for correctly connected Analyzer
6.5 Display Information
The Analyzer uses five different screen types to present measuring results in the
most effective way.
Picture: Survey of Display types
