17
EN
A
T
ySController A15 - 549779A - SOCOMEC

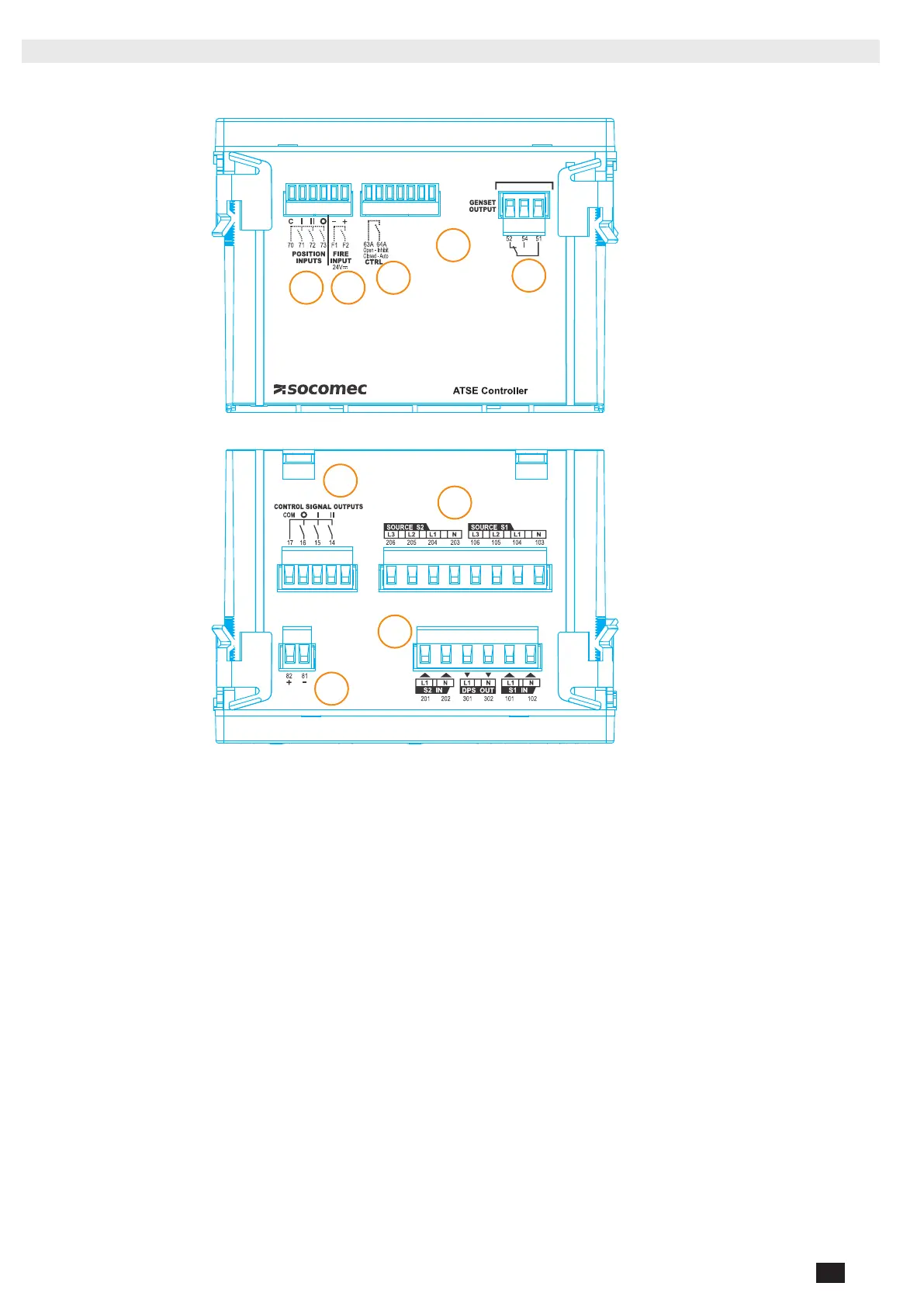

9.2. Connections
TOP
1
2
3
4
5
BOTTOM
6
7
8
9
1.
RTSE position feedback input
2.
24 V
.d.c re input
3.
Enable control when closed / disable contr
ol when open
4.
Not used
5.
Genset Start relay
6.
RTSE position control outputs
7.
Source 1 and 2 voltage inputs
8.
24 V
.d.c Aux supply
9.
External DPS – Input / output
16
18
