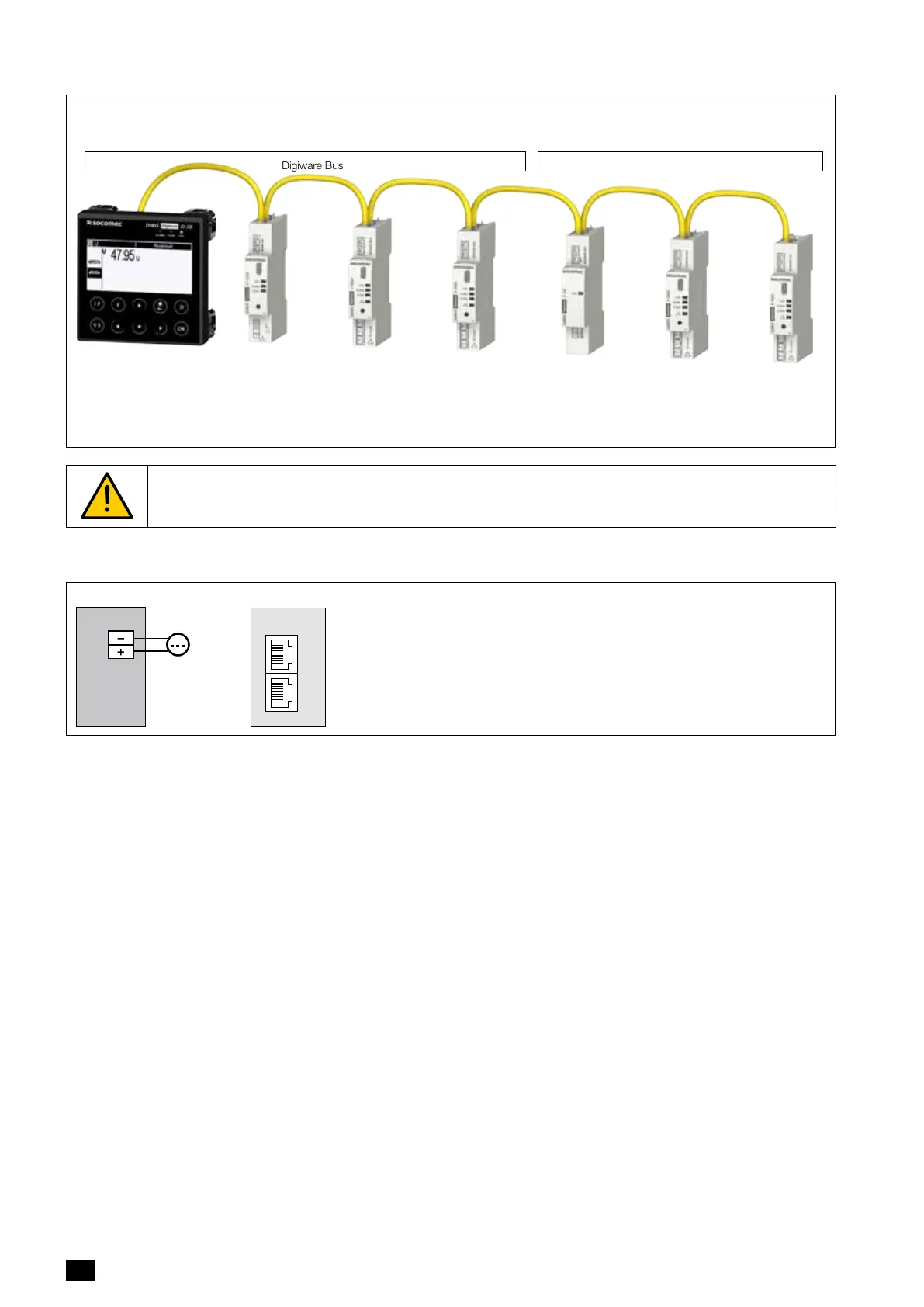

Conguration example:
Digiware Bus
100m max.
or max. 20W power consumption
100m max.
or max. 20W power consumption
DIRIS
Digiware D
24 VDC power
supply
24 VDC power
supply
U-3xdc C-32I-3xdc
I-3xdc
I-3xdc
I-3xdc
The DIRIS Digiware U-3xdc voltage module must be located upstream of the repeater.
The repeater has a 24VDC power supply.
DIRIS Digiware C-32
Supply 24VDC
24VDC
DIGIWARE BUS
RJ45
INOUT
