MASTERYS BC 15-40 kVA - Ref.: IOMMASBCXX09-EN 01
ENGLISH
2.2.1-4
2.2.1-5
Secure the UPS with feet C

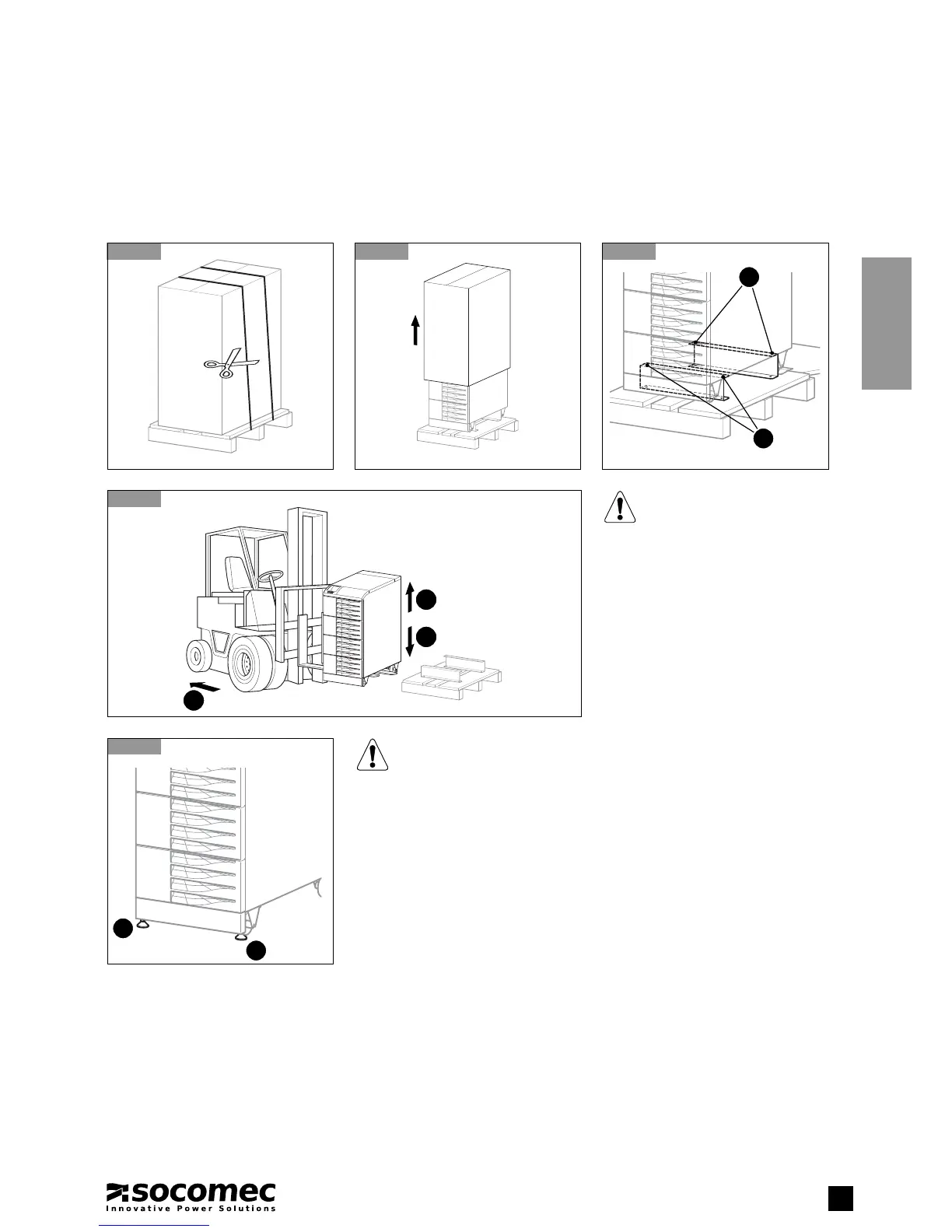

2. UNPACKING AND INSTALLATION OF THE UNIT
2.2. UNPACKING PROCEDURE
2.2.1. S Models (h 800 mm) and M Models (h 1000 mm)
2.2.1-3
Remove screws A and B
A
B
D
D
2.2.1-1
1
3
2
The UPS can be moved.
Place the UPS in the installa-
tion area.
Secure the UPS with feet D
only when it is in position with
cables connected.
2.2.1-2
